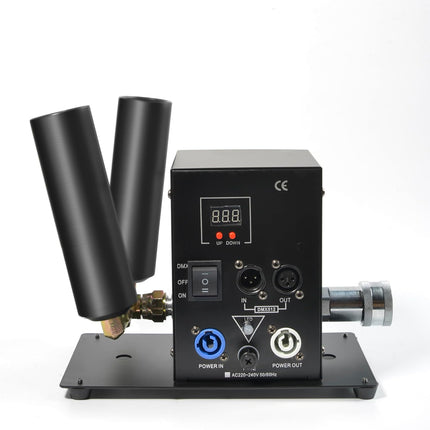

FX-X7 DMX Double Nozzle CO2 Jet Cannon
Dual-Control Fog System · 6MPa High Pressure · 6M Vertical Reach.
The FX-X7 is a heavy-duty, dual-nozzle CO2 jet cannon engineered to deliver massive, instantaneous atmospheric impact for festivals, touring stages, and superclubs. Operating at a staggering 6MPa (870PSI) of pressure, this powerhouse blasts two thick, cryogenic fog columns up to 6 meters (19.7 feet) into the air. Housed in a rugged, powder-coated iron chassis and featuring fully adjustable 270° rotating nozzles, the FX-X7 provides lighting designers with the ultimate flexibility to create crossing architectural fog effects, massive V-shaped plumes, or directed stage blasts with precise DMX synchronization.
Key Benefits

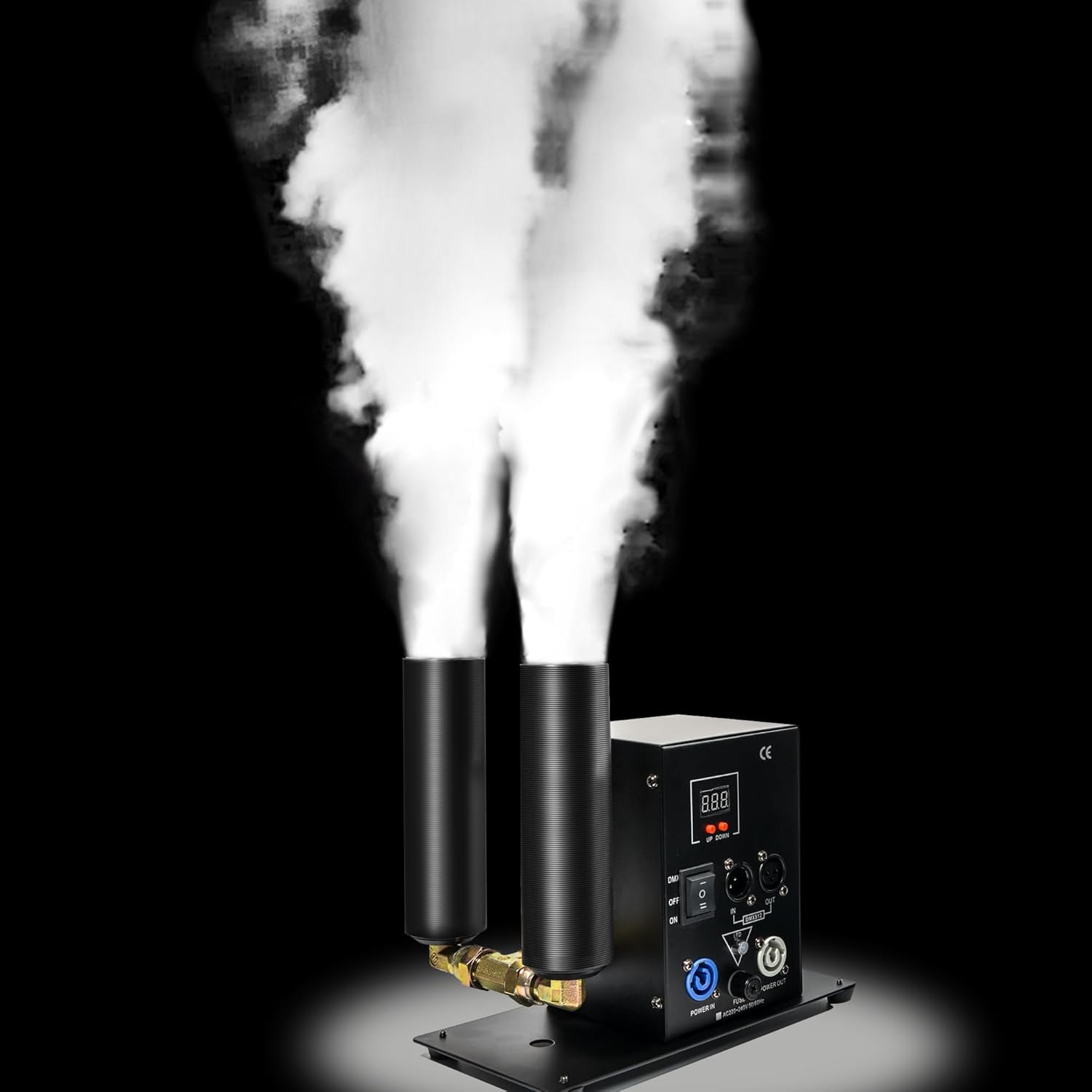

- Dual 6-Meter Plumes: Two independent high-pressure spray channels project thick, white CO2 fog up to 6 meters instantly, creating an explosive visual climax that dissipates in seconds.
- 270° Nozzle Adjustment: Both nozzles can be manually rotated up to 270 degrees, allowing you to angle the blasts toward the crowd, across the stage, or straight up into the rigging.
- Smart DMX Integration: Seamlessly integrate into your light show using DMX512. Channel 1 acts as the instant trigger, while Channel 2 precisely controls the duration of the blast.

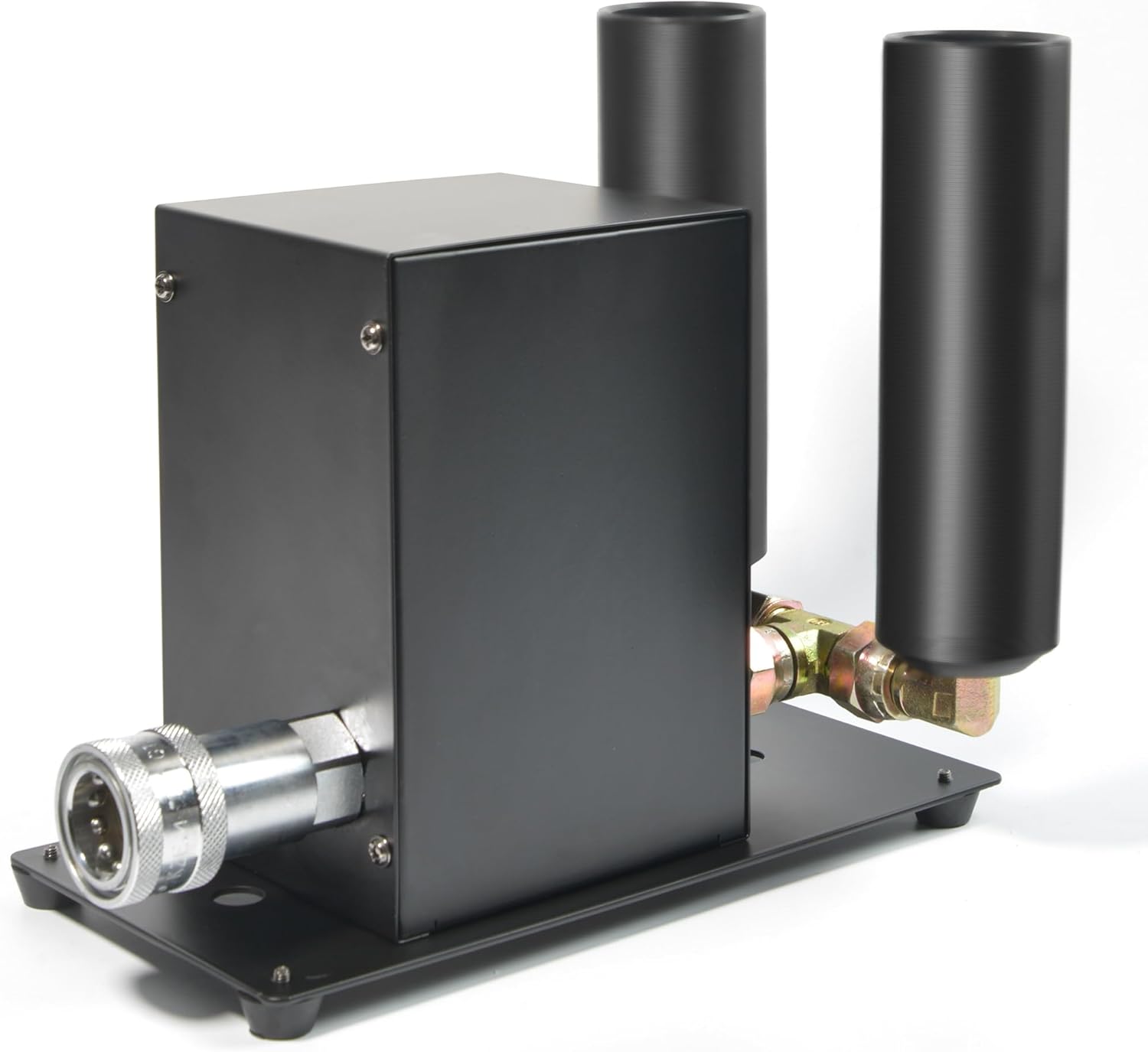

- Industrial Construction: The powder-coated iron housing is built to withstand the rigors of touring and live production environments.
- Advanced Safety Protocols: Engineered with leak-proof high-pressure seals and an integrated 200W electrical overload protection circuit to ensure safe, continuous operation.

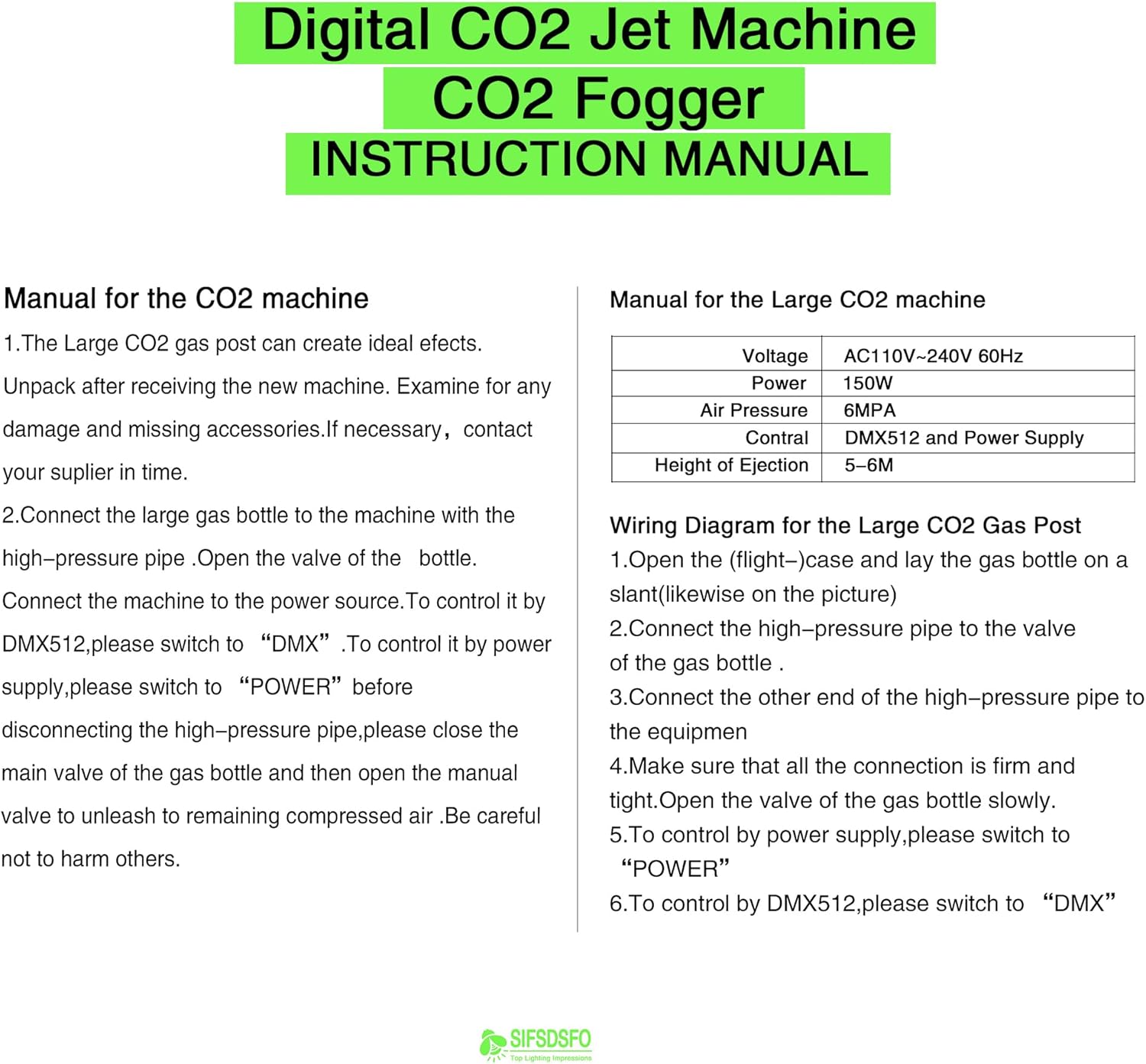

Setup & Safety Guide
💡
📌
- Mounting: Secure the FX-X7 to the stage floor or truss. Adjust the nozzles to your desired 270° trajectory.

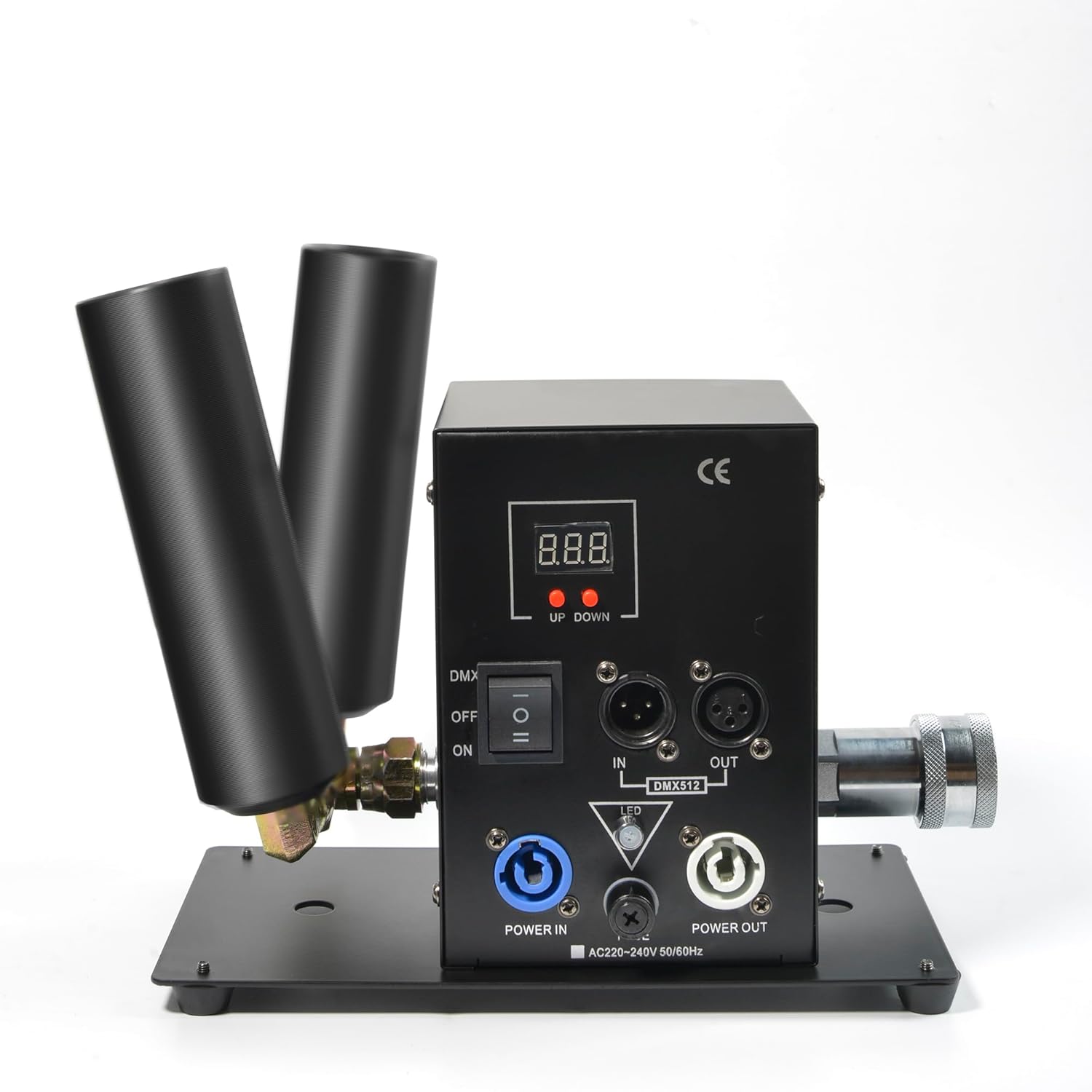

- Configuration: Select your control mode (DMX or Manual) and set your DMX address (CH1 = Trigger, CH2 = Duration).

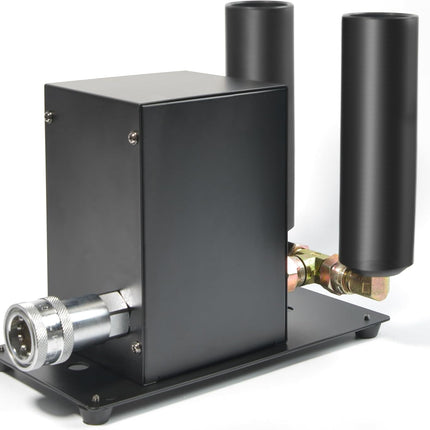

- Gas Connection: Connect the 19mm high-pressure hose to your liquid-siphon CO2 tank, then attach the other end to the cannon.
- Pressurize: Slowly open the valve on the CO2 tank. Check for any audible leaks at the connection points.
- Firing: Trigger the unit via your lighting console. Ensure no personnel are within 2 meters of the nozzle outputs.
Technical Specifications
| Power Input / Voltage | 200W ±5% / AC 110-240V, 50/60Hz |
|---|---|
| Pressure Output | 6MPa (870 PSI) |
| Spray Performance | 5–6 Meters (16.4–19.7 ft) Vertical Reach |
| Nozzle Articulation | 270° Manual Rotation (Dual Independent Nozzles) |
| Control Modes | DMX512 (2 Channels) & Manual Trigger |
| Required Gas / Thread | Liquid CO2 / 19mm US Thread Hose Connection |

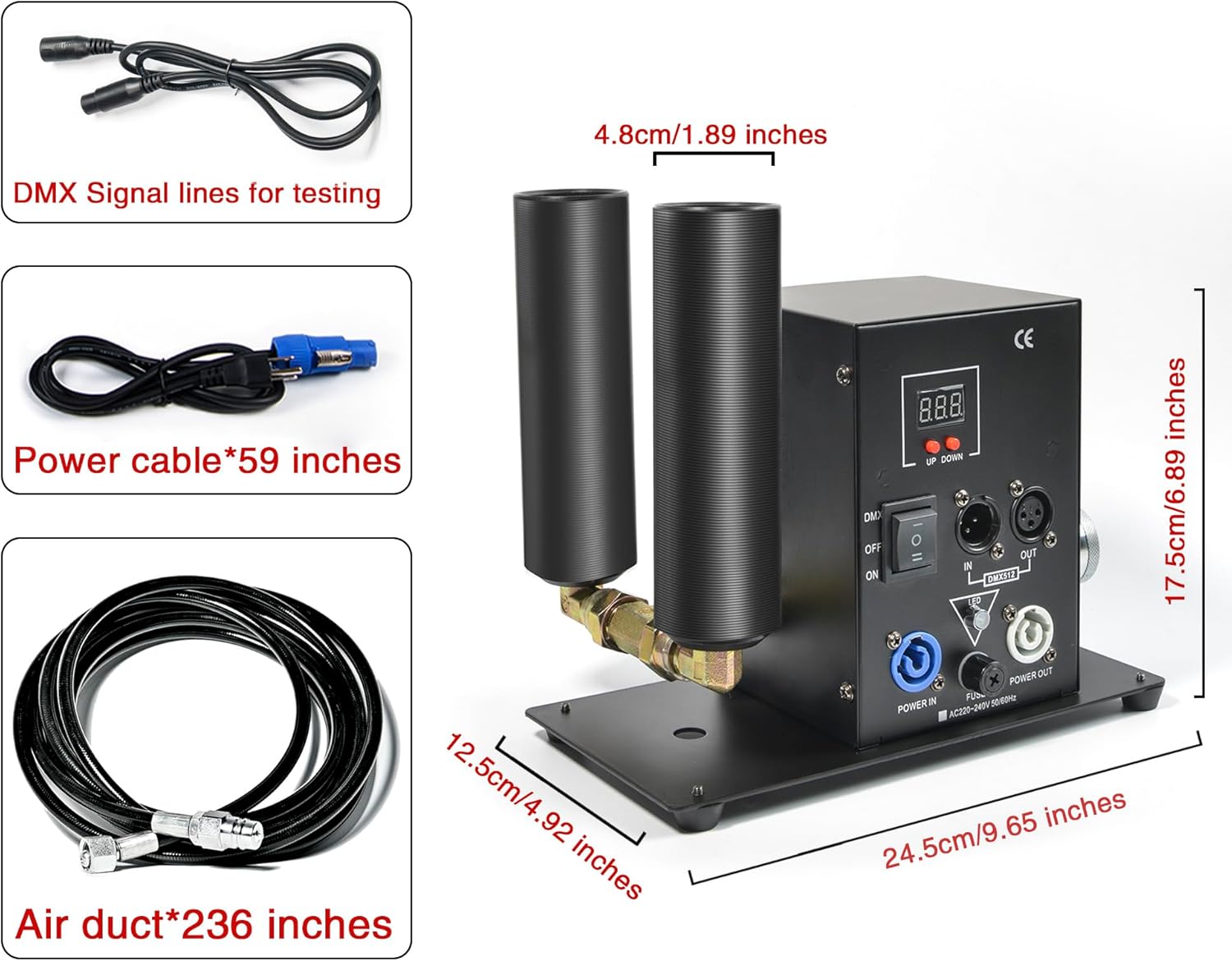

| Dimensions | 35 × 30 × 35 cm |
| Shipping Weight | 11 kg (24.25 lbs) |

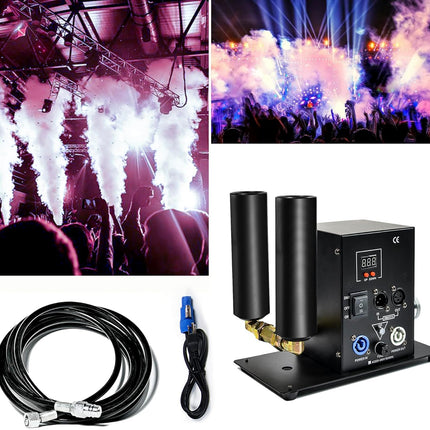

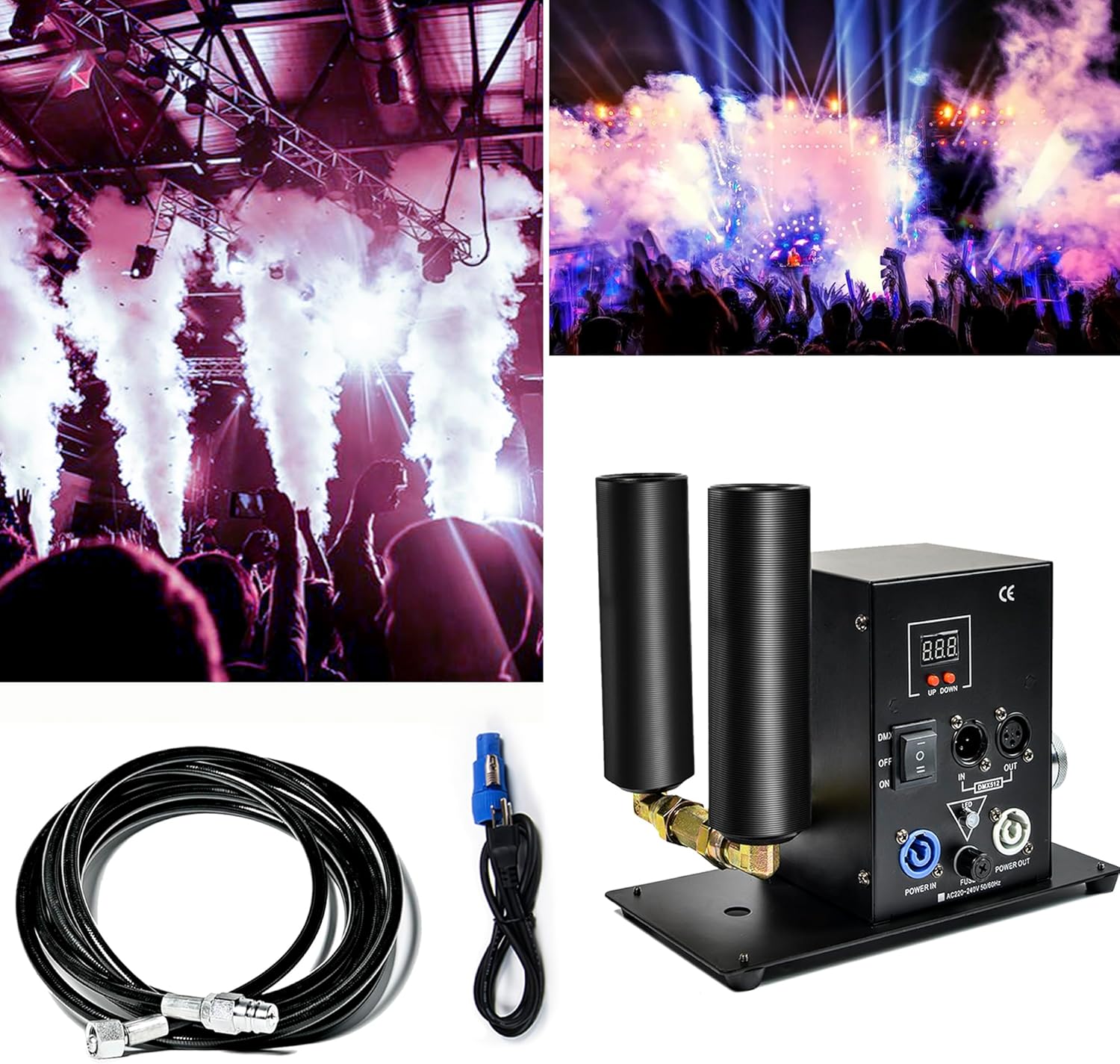

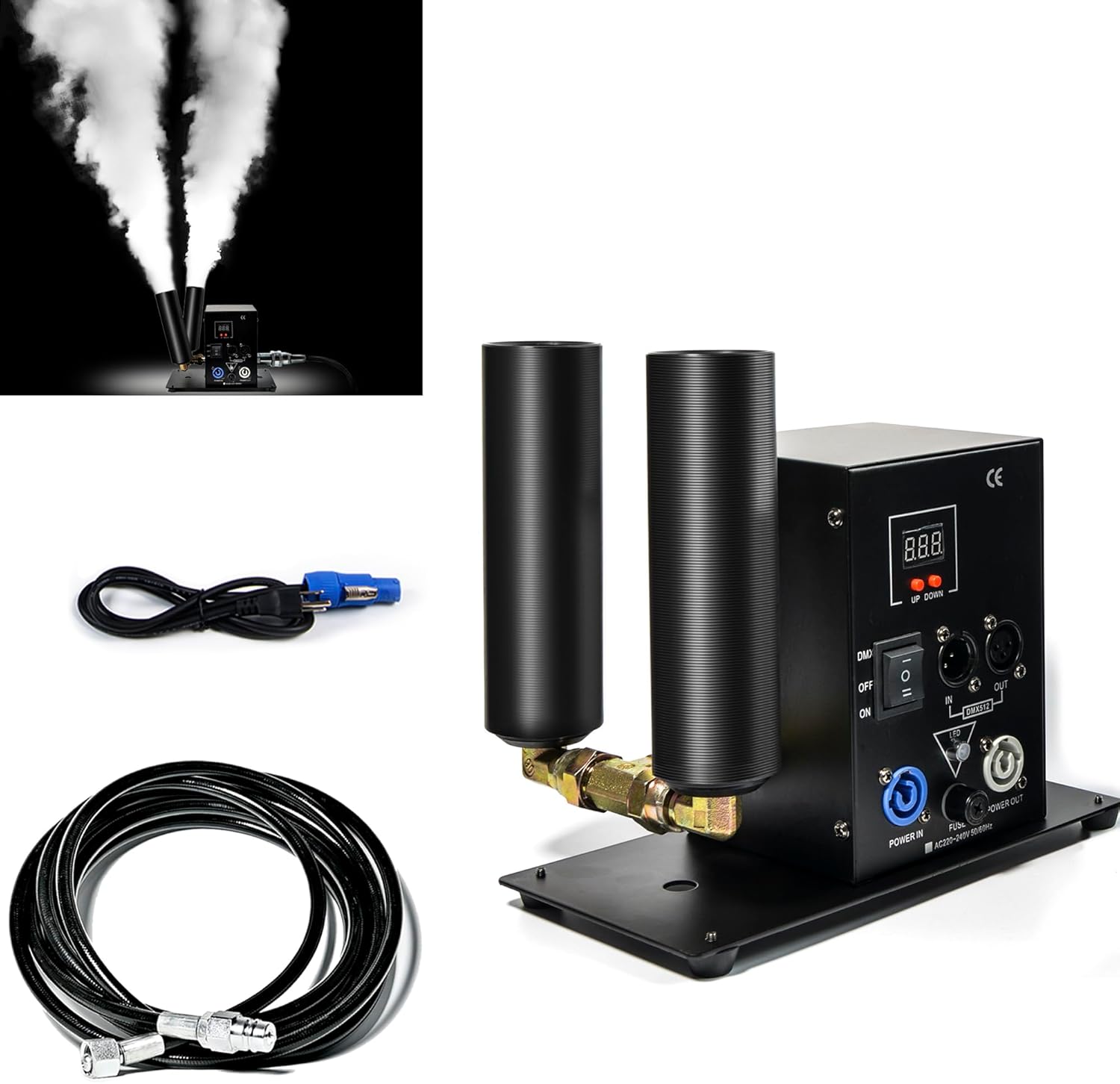

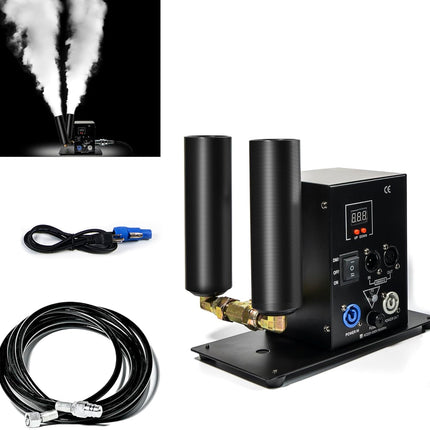

System Components
- ✔️ 1 x FX-X7 Dual-Nozzle Main Unit
- ✔️ 1 x 19mm High-Pressure CO2 Hose
- ✔️ 1 x 3m DMX Control Cable
- ✔️ 1 x Universal Power Cord
- *Note: Liquid CO2 Tanks are required for operation and are sold separately.
💬 Need a custom hose length or a bulk B2B quote?
Chat with our in-house engineering team to discuss custom high-pressure hose lengths for complex stage rigging, DMX programming advice, and exclusive wholesale pricing for production and rental companies.
Frequently Asked Questions
Q: Do I need to purchase a specific type of CO2 tank?
A: Yes. You must use a liquid-siphon CO2 cylinder (often called a dip-tube tank) to ensure liquid CO2 reaches the cannon, which creates the thick white fog. The included high-pressure hose features a standard 19mm US thread.
Q: How does the DMX control operate?
A: The FX-X7 uses a simple 2-channel DMX profile. Channel 1 acts as the trigger to fire the cannon, while Channel 2 allows you to program the exact duration of the blast, ensuring perfect synchronization with your music and lighting cues.
Q: Why is there a 15-minute cool-down cycle?
A: Releasing CO2 at 6MPa generates extreme cryogenic freezing temperatures. If you perform extended, rapid-fire blasts, the internal solenoid valves can freeze open. Allowing the unit to rest prevents valve freezing and ensures reliable shut-off.
Q: Why must I switch control modes before connecting the gas?
A: This is a critical safety feature. If the machine is set to manual or receives an active DMX signal while you are pressurizing the lines, it could accidentally misfire. Always configure the electronics before opening the gas valve.
