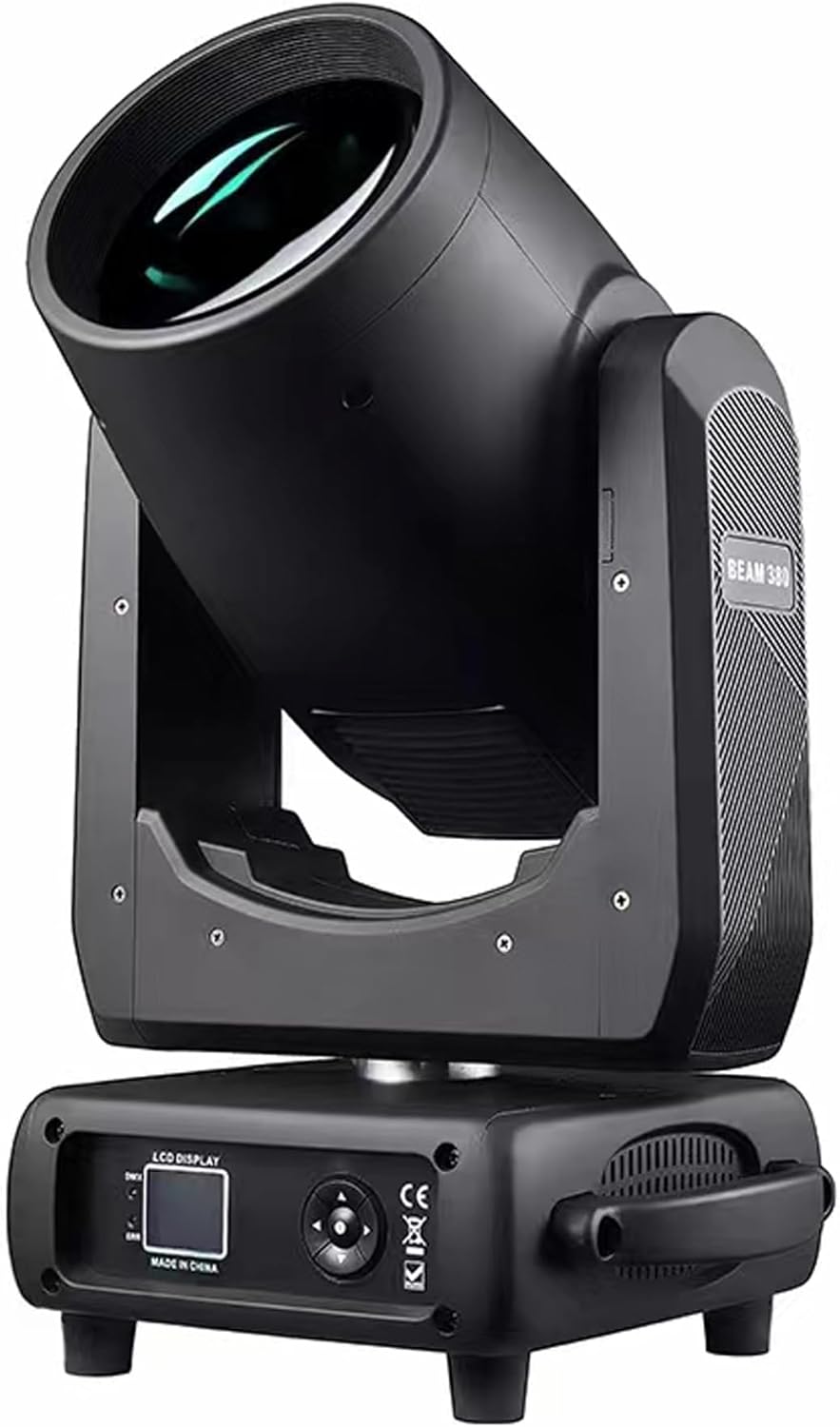

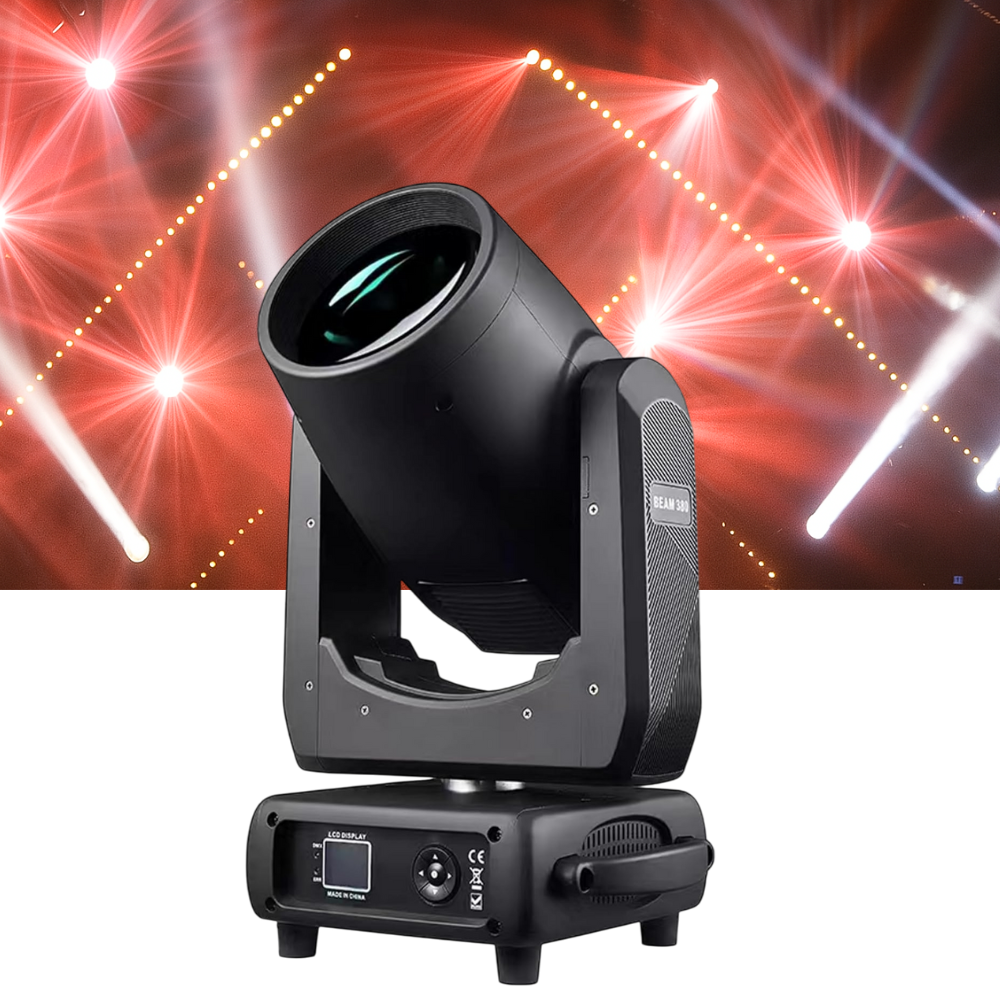

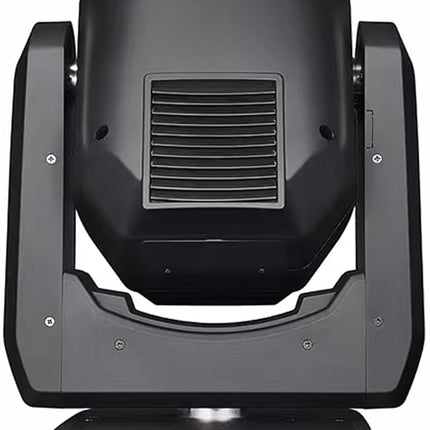

Mini 380W Moving Head Beam Light
Powerful 380W Lamp ยท Dual Rotating Prisms ยท 16/20 DMX Channels.

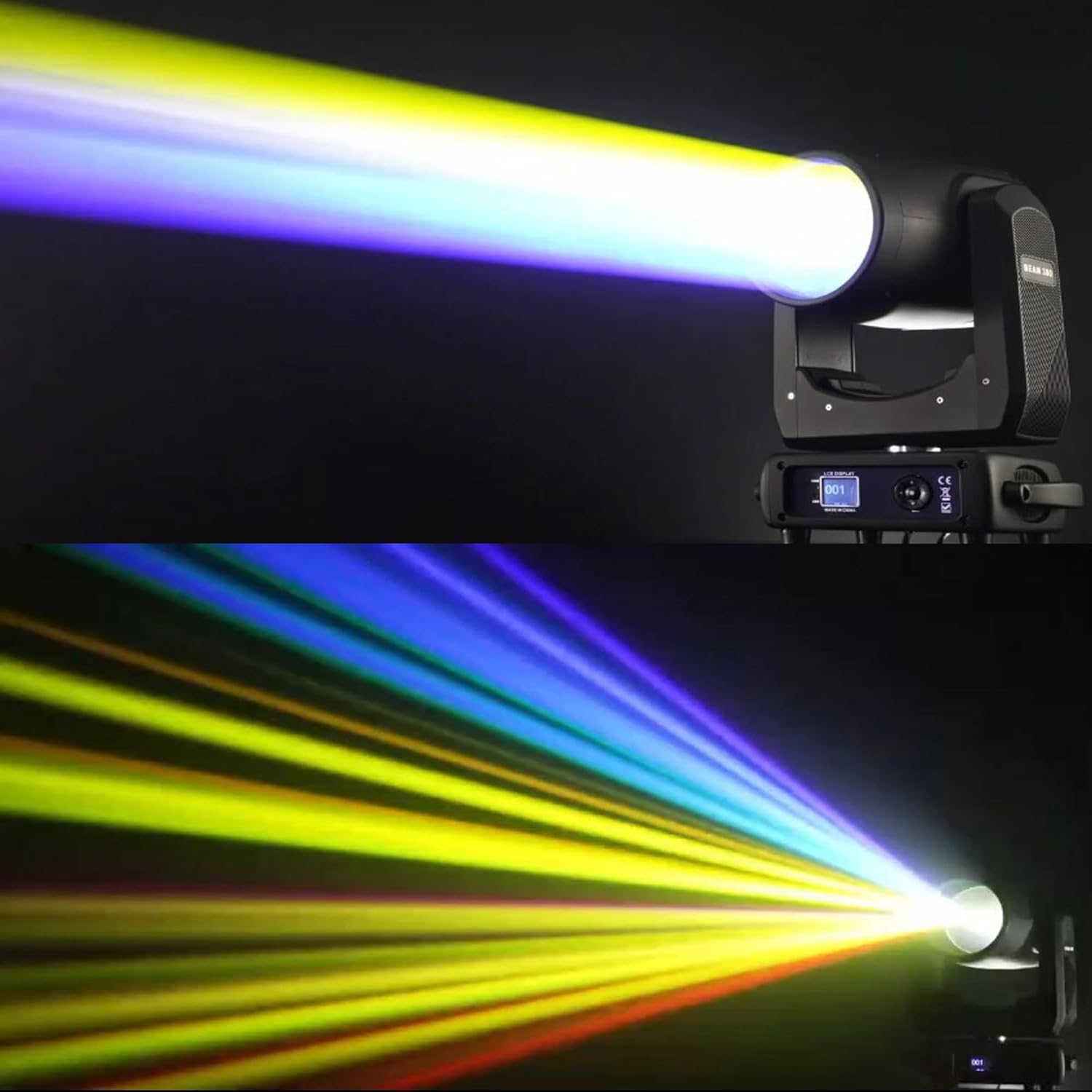

The Mini 380W is a high-performance moving head beam light designed for professional stage productions, nightclubs, and live events. Equipped with a powerful 380W 20R lamp, it delivers incredibly bright and sharp beams. Unleash your creativity with its extensive features, including a 14-color wheel, a 14-gobo wheel, dual rotating prisms (12 and 48-face), electronic focus, and a frost filter for wash effects. With versatile control via DMX512, auto, and sound-active modes, this fixture is perfect for lighting designers and mobile entertainers seeking maximum impact in a compact package.
Key Benefits

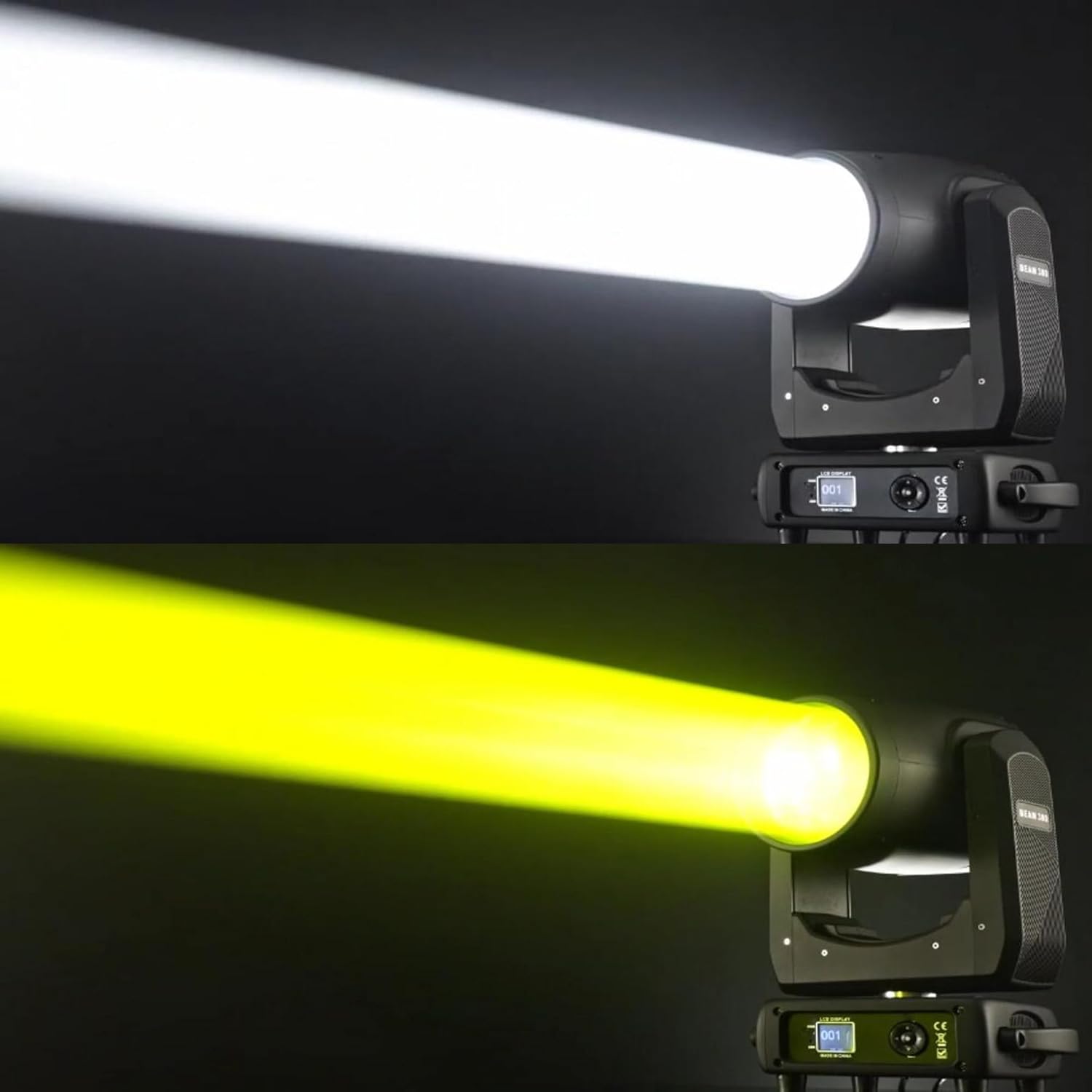

- Intense Brightness: Powerful 380W 20R discharge lamp delivers a super-bright, razor-sharp 8500K beam.
- Spectacular Aerial Effects: Dual, independently rotating prisms (12-face and massive 48-face) split the beam for complex, room-filling visuals.
- Vivid Optics: Dynamic color wheel with 14 colors plus white, featuring a smooth rainbow effect.
- Sharp Projections: Fixed gobo wheel featuring 14 distinct patterns plus open white, kept sharp via electronic focus.
- Multi-Function Wash: Built-in frost filter instantly softens the hard beam edge, turning the fixture into a smooth stage wash.
- Professional Control: Seamless operation via DMX512 (16 or 20 channel modes), Auto, Sound Active, & Master-Slave.
- High-Speed Movement: Fast, precise, and smooth 540ยฐ Pan and 270ยฐ Tilt movement with 16-bit resolution.
Setup & Operation Guide
๐
โ ๏ธ
- Step 1: Unpack the fixture and securely attach the included mounting brackets to your truss system. Always secure the fixture with a certified safety cable.
- Step 2: Connect the power cable to a reliable AC 100-240V power source.

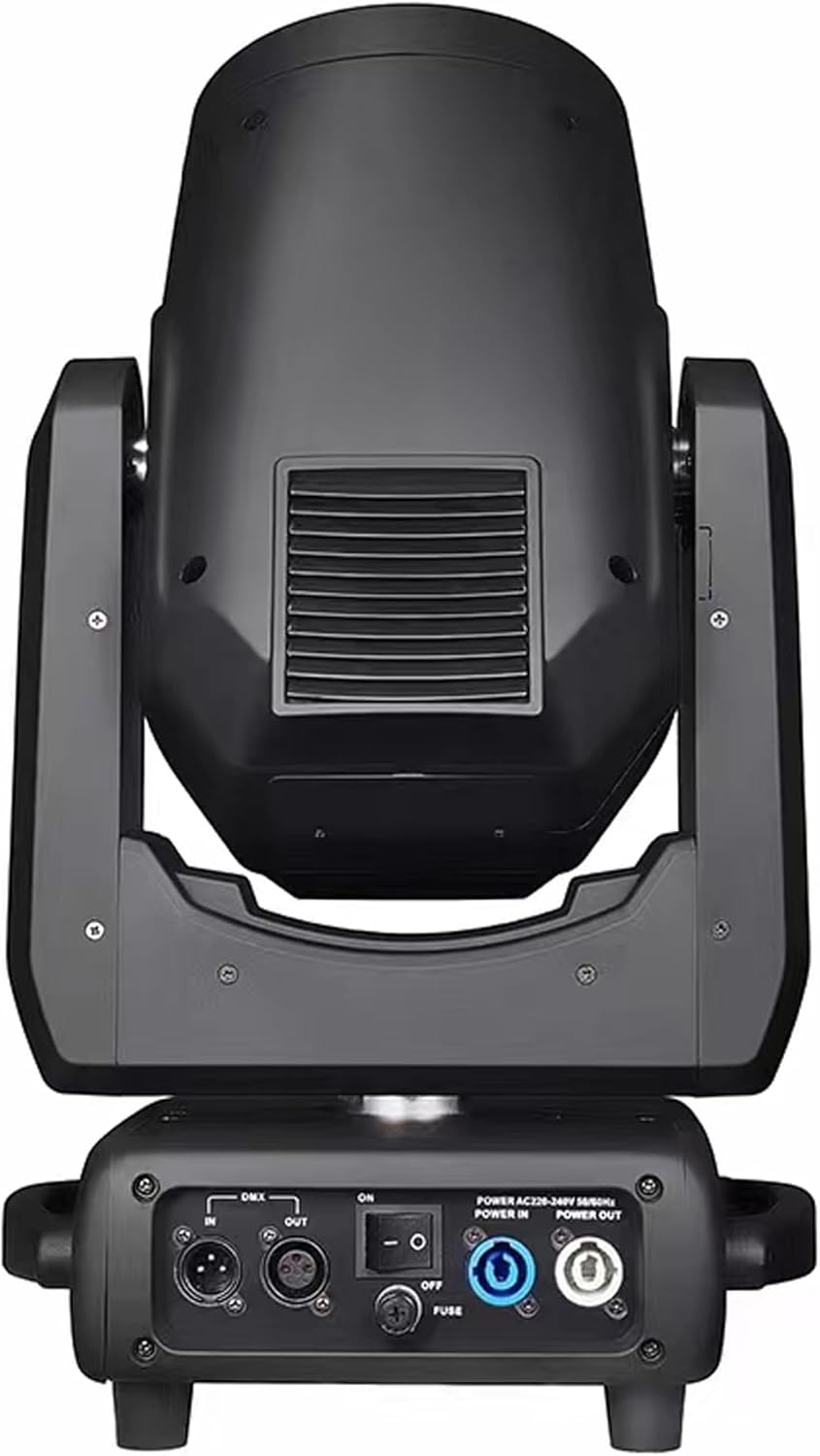

- Step 3: Connect a DMX cable from your lighting console to the DMX IN port, and daisy-chain to other units using DMX OUT.

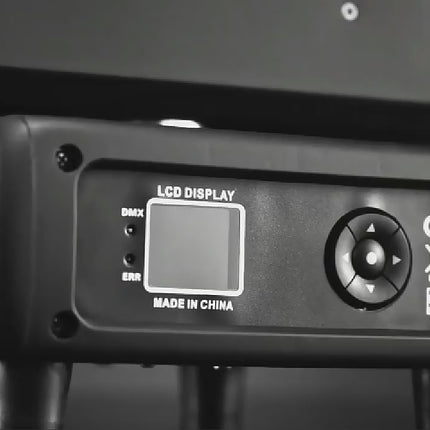

- Step 4: Use the digital display to set the DMX address and select either the 16-channel or 20-channel control mode depending on your programming needs.
- Step 5: After your event, turn off the lamp via your DMX controller and allow the internal cooling fans to run for at least 5-10 minutes to safely cool the bulb before disconnecting main power.
Technical Specifications
| Power Supply / Total Power | AC100-240V, 50-60Hz / 600W |
|---|---|
| Light Source / Color Temp | 380W 20R Lamp / 8500K |
| Control Mode / DMX CH | DMX512, Auto, Sound Active, Master-Slave / 16 or 20 Channels |
| Color & Gobo Wheels | 14 Colors + White / 14 Gobos + White |
| Prism & Optics | 12-face + 48-face Double Rotating Prism, Electronic Focus, Frost Filter |
| Movement | Pan: 540ยฐ, Tilt: 270ยฐ (8/16-Bit Resolution) |
| Protection Level / Weight | IP20 (Indoor Use) / 15 kg Gross Weight |
| Packing List | 1 x 380W Moving Head Light, 1 x Power Cable, 1 x DMX Cable, 2 x Mounting Brackets, 1 x English User Manual |
๐ฌ Need help with DMX setup or programming a light show?
Chat with our technical team for custom package deals, DMX troubleshooting, and bulk pricing for your venue.
Frequently Asked Questions
Q: What does “20R” mean?
A: 20R refers to the class of the high-intensity discharge lamp used inside the fixture. Operating at 380W, a 20R lamp produces an exceptionally powerful, highly concentrated, and piercing beam of light, suitable for large arenas and outdoor festivals.
Q: Can I use both prisms at the same time?
A: Yes! The fixture features a dual prism system (12-face and 48-face). They can be engaged independently or layered together and rotated to create massive, intricate, multi-beam patterns that look spectacular in the air.
Q: How does the frost filter work?
A: By engaging the frost channel via DMX, a diffusion filter drops in front of the lens. This instantly softens the hard edge of the 20R beam, turning the fixture from a sharp beam light into a smooth, wide wash light, perfect for illuminating stages.
Q: Do I need a DMX controller to use this?
A: No, while a DMX controller (using the 16 or 20-channel mode) gives you complete creative freedom, you can also set the light to run its built-in Auto Programs or link multiple units together in Master-Slave mode for a synchronized show without a console.
