MB-78 150W Moving Head Beam Light
150W Output ยท 7 Gobos & 7 Colors ยท 6+12 Prisms ยท 11/13 DMX Channels.
The MB-78 Moving Head Beam Light delivers an impressive 150W output with five stunning effects: beam, pattern, prism, flash, and dimming. It features 1 rotating gobo wheel with 7 unique patterns and shake/random positioning functions, plus a color wheel with 7 colors (including white) for rich, dynamic visuals. The dual prism disc (6+12 prisms) offers positive/negative rotation and precise prism positioning for creative shows. Crafted with durable iron and plastic, this compact moving head is easy to mount and built for long-term performance. Ideal for bars, stages, weddings, churches, and nightclubs.
Key Benefits
- High-Intensity Output: Powerful 150W white LED delivers a super-bright, sharp beam that cuts through ambient light.
- Dynamic Gobos & Colors: 7 vibrant colors plus white, and 7 gobos equipped with shake and random positioning effects.
- Advanced Dual Prisms: The 6+12 prism disc features bi-directional rotation to split the beam into complex, room-filling arrays.
- Razor-Sharp Optics: A 2ยฐโ2.5ยฐ ultra-narrow lens angle ensures a piercing, highly concentrated beam of light.
- Versatile Control: Seamless operation via DMX512 (11/13CH), Sound-Activated, Auto, and Master/Slave modes.

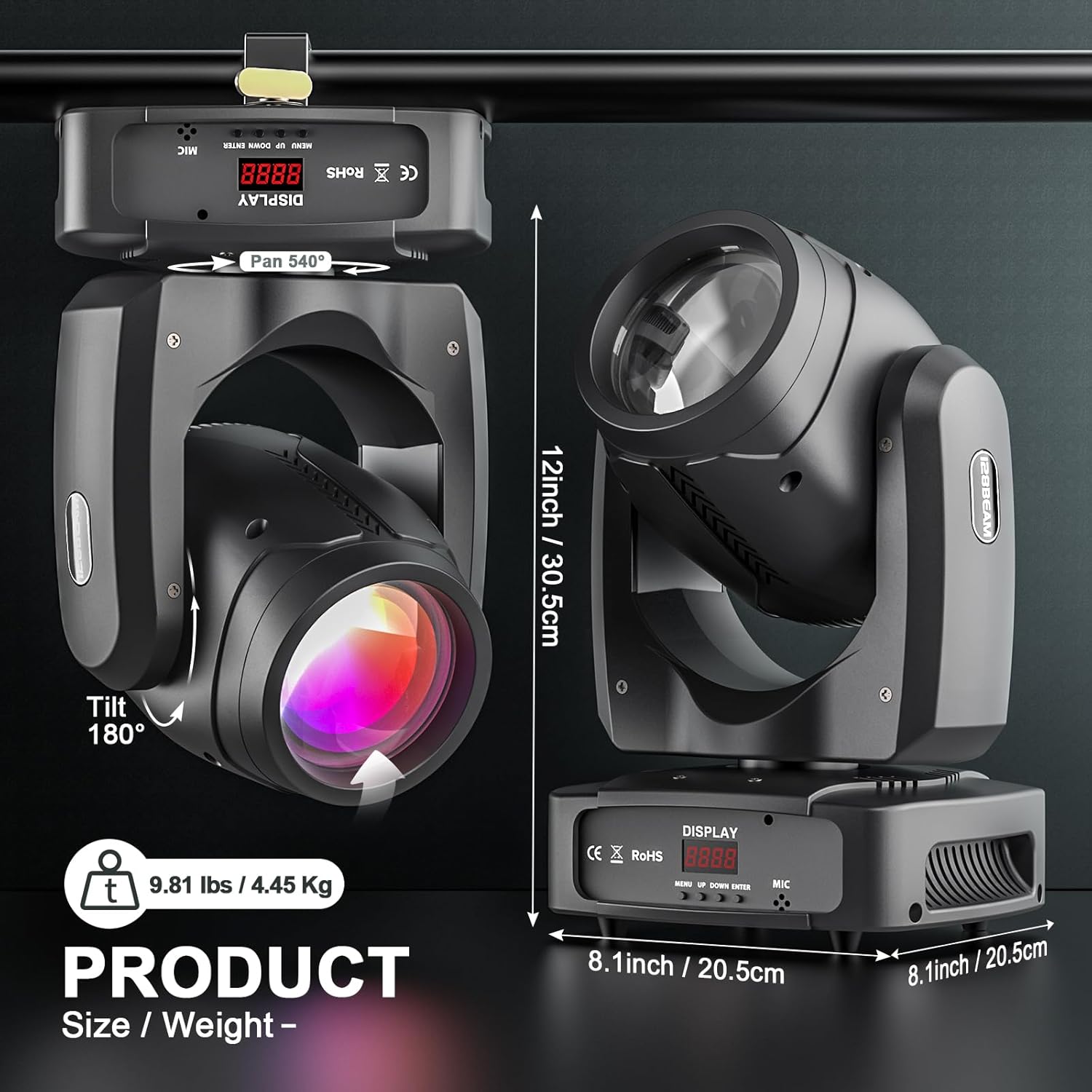

- Wide Scan Range: Smooth, rapid 540ยฐ Pan and 180ยฐ Tilt movement covers large stages and dance floors effortlessly.
Setup & Operation Guide
๐
โ ๏ธ
- Step 1: Unpack the fixture and securely attach the mounting hook using the provided screws. Rig it to your truss system or set it on a stable flat surface.
- Step 2: Connect the power cable to a reliable AC 110-240V power source.

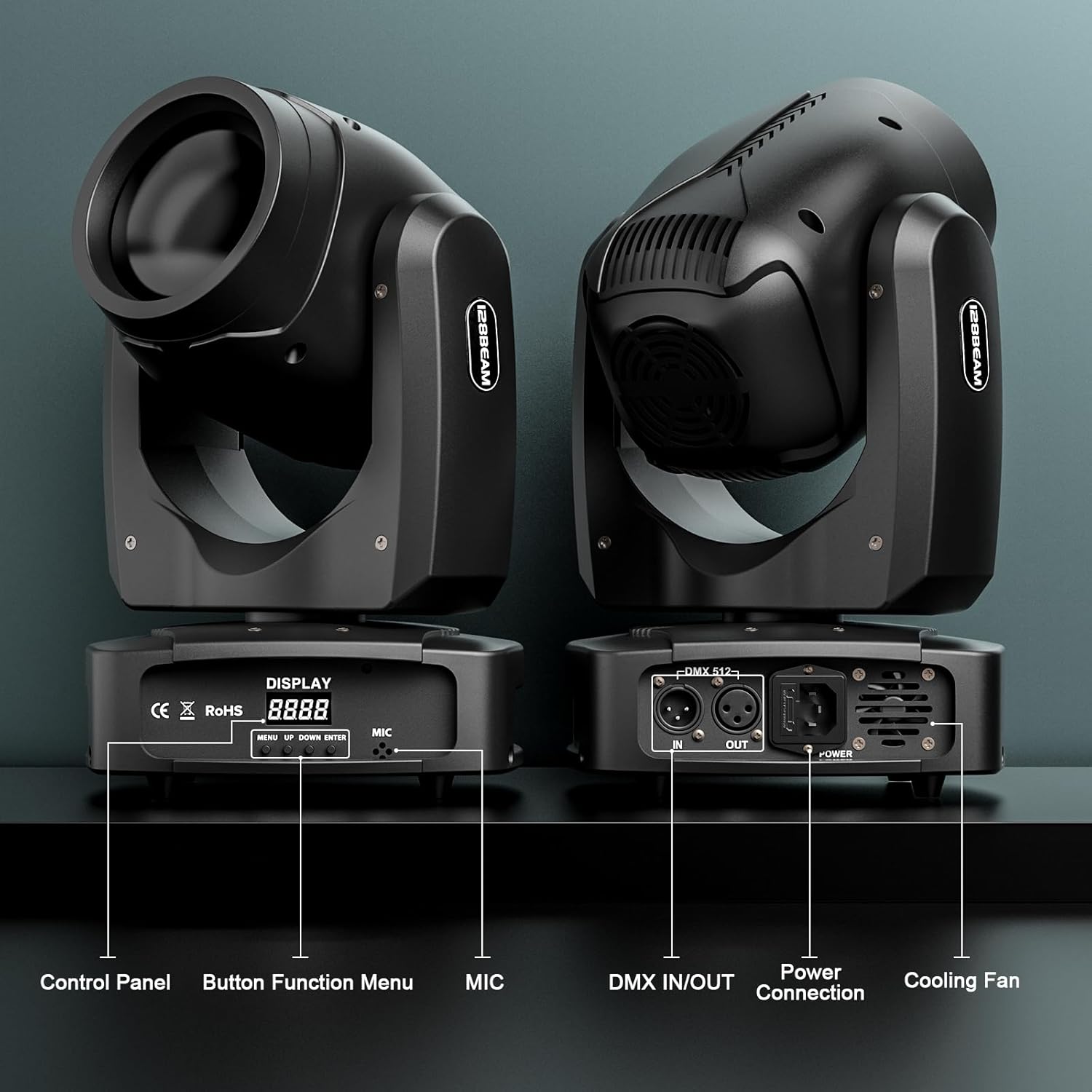

- Step 3: To control the light via a console, connect a DMX cable to the DMX IN port and select either the 11-channel or 13-channel mode via the LED display.
- Step 4: For standalone operation, navigate the menu to select ‘Auto’ or ‘Sound’ mode for instant plug-and-play light shows synchronized to your music.
- Step 5: Daisy-chain multiple units using DMX cables and set them to Master/Slave mode for perfectly synchronized movements across your venue.
Technical Specifications
| Voltage / Power | AC 110โ240V / 150W |
|---|---|
| Light Source / Beam Angle | 1pcs High-Power White LED / 2ยฐโ2.5ยฐ |
| Control Mode / DMX CH | DMX512, Master-Slave, Auto, Sound / 11 or 13 Channels |
| Color & Gobo Wheels | 7 Colors + White / 7 Gobos + Open (with Shake & Random Position) |
| Prism System | 6+12 Prisms (Positive/Negative Rotation) |
| Movement Range | Pan: 540ยฐ / Tilt: 180ยฐ |
| Lifespan / Cooling | 10,000 hours / Built-in Fan Cooling |
| Material / Working Temp | Iron + Plastic / Below 45ยฐC |
| Packing List | 1 x MB-78 Moving Head LED, 1 x Power Cable, 1 x Light Hook, 4 x Screws, 1 x User Manual |
๐ฌ Need help choosing your stage lights or want bulk pricing?
Chat with our technical experts for custom package deals, DMX programming advice, and exclusive B2B pricing for your venue.
Frequently Asked Questions
Q: What does the 6+12 prism do?
A: The fixture contains a dual-layer prism system (a 6-facet and a 12-facet prism). When activated, it fractures the single 150W beam into multiple overlapping segments that rotate bi-directionally, creating massive geometric webs of light across your venue.
Q: What is the gobo “shake” function?
A: The gobo shake function rapidly vibrates the selected pattern back and forth. This creates a high-energy, jittery visual effect that looks incredible when paired with fast-paced music or strobe effects.
Q: Can I run this light without a DMX controller?
A: Absolutely. If you don’t have a DMX console, you can use the built-in Sound-Activated mode to let the light sync automatically to the beat of the music, or the Auto mode for a continuous pre-programmed light show.
Q: Is the 150W LED bright enough for a medium-sized club?
A: Yes! Because this is a “Beam” fixture with an ultra-narrow 2ยฐโ2.5ยฐ lens angle, the 150W output is highly concentrated. It easily punches through ambient lighting and atmospheric haze, making it perfect for small to medium-sized clubs and stages.
