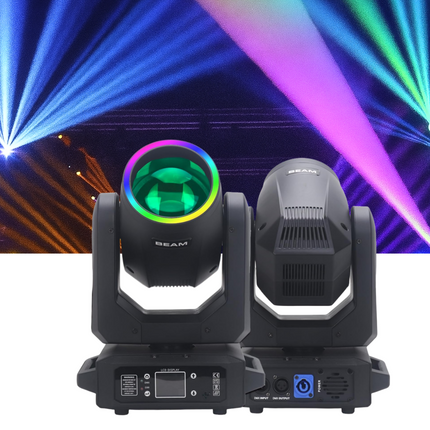

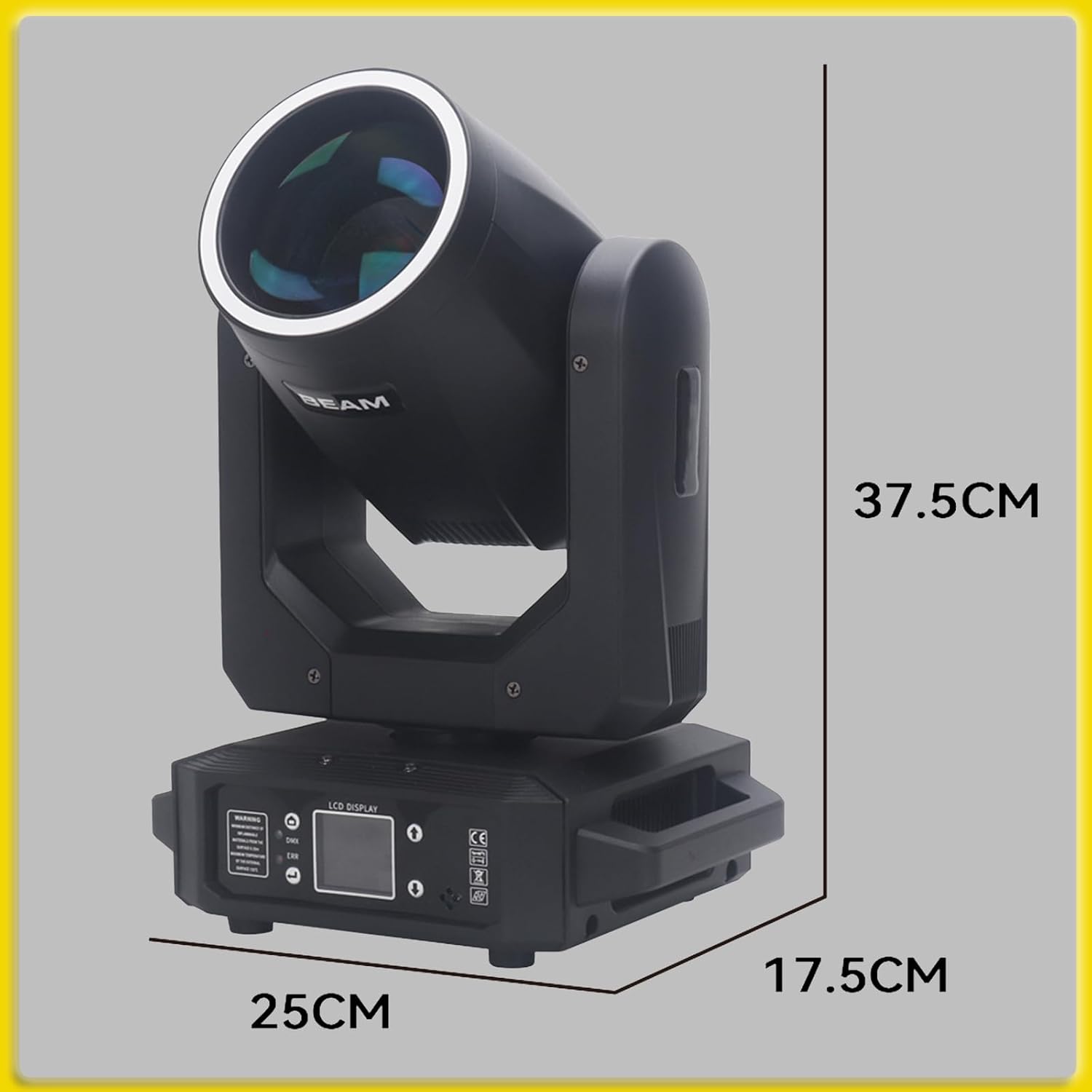

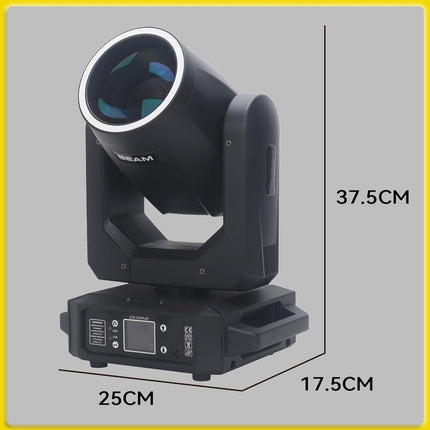

MB-72 200W Moving Head Beam Light
200W White LED + RGB Halo ยท GOBO & Prism ยท 6-Color Rainbow Effect ยท DMX/Voice Control.

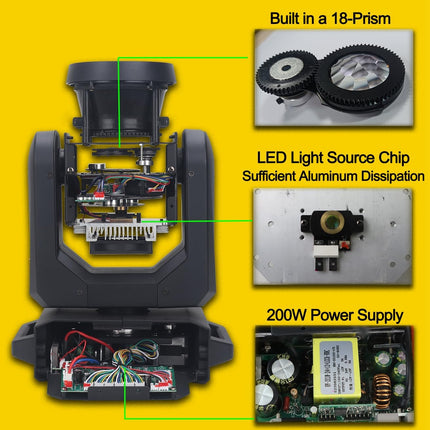

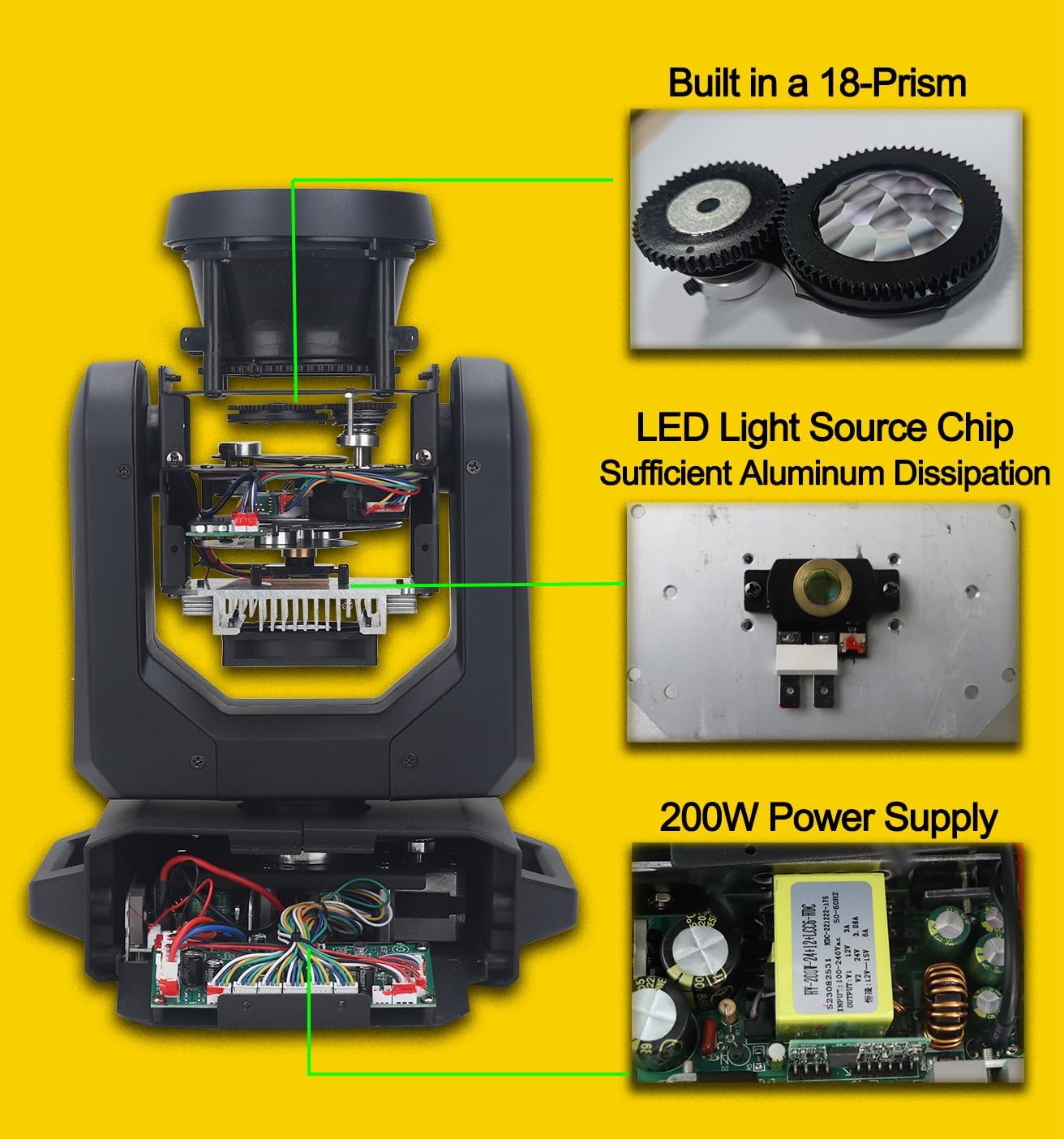

The MB-72 Moving Head Beam Light combines a powerful 200W white LED with 21 SMD 5050 RGB beads, delivering intense beams and vivid spot effects for dynamic stage shows, clubs, and live events. Its high-precision motors and GOBO projection system allow you to craft immersive visual atmospheres with ease. Equipped with 12 patterns, 8 static colors, a 6-color rainbow effect, and a flexible 6+12 prism combination, youโll have all the creative tools to energize any venue. Multi-control flexibility plus smooth 540ยฐ pan and 200ยฐ tilt movements make this a highly reliable choice for professional lighting setups.
Key Benefits
- Dual-Layer Illumination: Features a high-power 200W white LED core paired with a 21-LED RGB halo for striking, multi-dimensional eye-candy effects.
- Dynamic Visuals: Loaded with 12 sharp GOBO patterns, 8 static colors, and a specialized 6-color rainbow wheel for vibrant, shifting hues.
- Complex Aerials: Innovative 6+12 prism combination with independent rotation splits the beam into mesmerizing geometric arrays.
- Flexible Control: Master any event with DMX512 (13/15CH), Voice-Activated (Sound), Master-Slave, and Auto (Self-Propelled) modes.
- Wide Coverage: Smooth and rapid 540ยฐ pan and 200ยฐ tilt ensure room-filling sweeps across large stages and dance floors.
- Efficient Cooling: Built-in fan cooling with a heavy-duty aluminum heat dissipation system guarantees stable, long-lasting performance.
Setup & Operation Guide
๐
โ ๏ธ
- Step 1: Unpack the fixture and securely attach the mounting hook. Rig it to your truss system or place it on a stable, flat floor surface.
- Step 2: Connect the included power cable to a reliable AC110V-220V power outlet.
- Step 3: For professional programming, connect a DMX cable from your lighting console to the DMX IN port. Daisy-chain additional fixtures using DMX OUT.
- Step 4: Use the digital display to set your starting DMX address and select your preferred channel mode (13CH or 15CH).
- Step 5: For standalone operation, navigate the menu to select Voice (Sound-Activated) or Self-Propelled (Auto) mode for instant, music-synced light shows.
Technical Specifications
| Voltage / Total Power | AC110Vโ220V, 50/60Hz / 200W |
|---|---|
| Light Sources | 1 ร 200W White LED (Main Beam) + 21 ร SMD 5050 RGB LEDs (Halo Ring) |

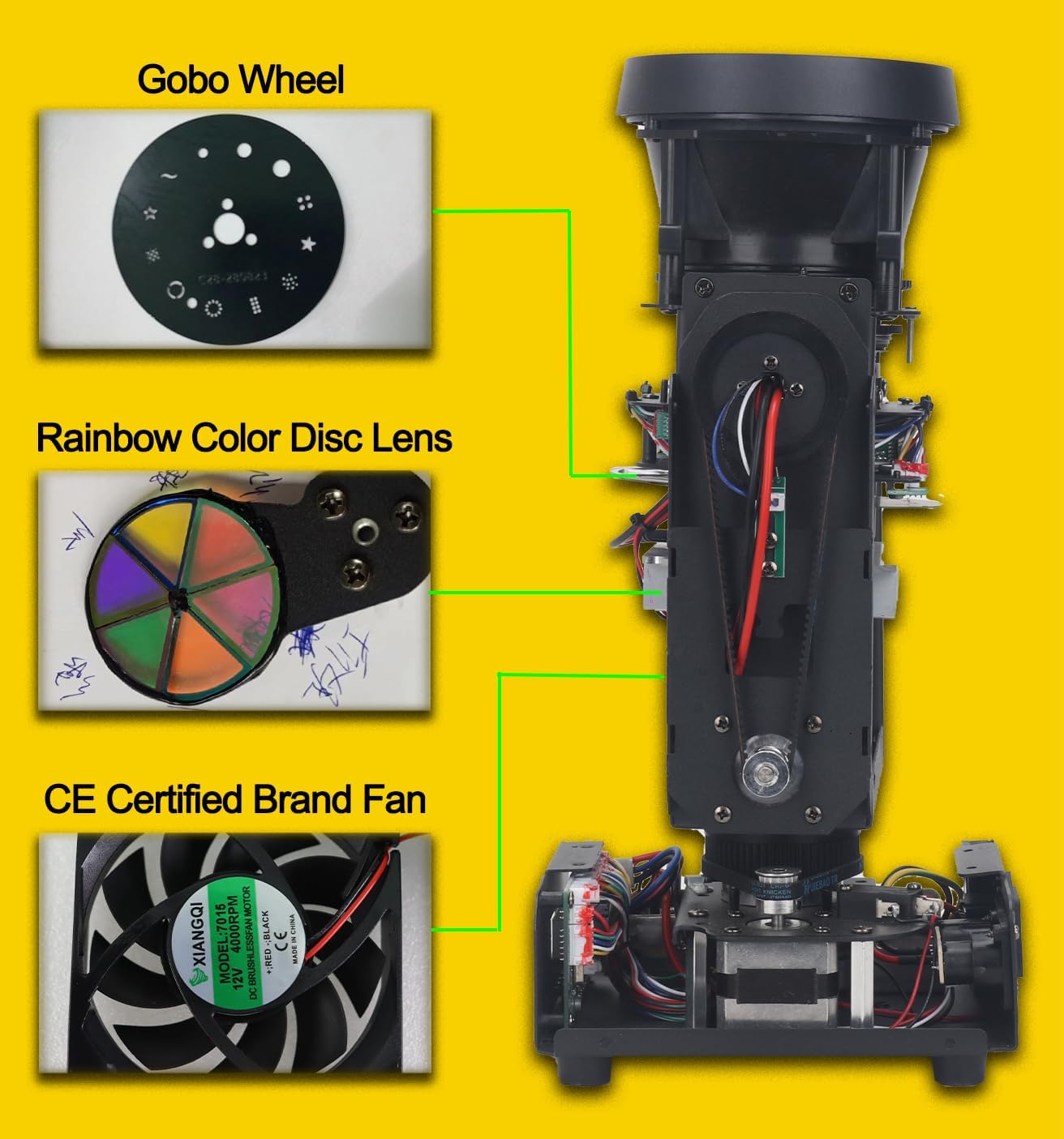

| Colors & Gobos | 8 Colors + 6-Color Rainbow Wheel / 12 Patterns (Gobos) |
| Prism System | 6+12 Prism Combination with Independent Rotation |
| Control Mode / DMX CH | DMX512, Voice (Sound), Master-Slave, Self-Propelled (Auto) / 13 or 15 Channels |
| Movement Range | Pan (X-Axis): 540ยฐ / Tilt (Y-Axis): 200ยฐ |
| Cooling System | High-Speed Fan Cooling + Aluminum Heat Dissipation |
| Packing List | 1 x MB-72 Moving Head Light, 1 x Power Cable, 1 x Mounting Hook, 1 x Screws (Set), 1 x User Manual |
๐ฌ Need a custom quote or help with DMX programming?
Chat with our technical team for expert advice on creating light shows, DMX integration, and exclusive bulk B2B pricing.
Frequently Asked Questions
Q: What is the RGB Halo effect?
A: Surrounding the main 200W white LED beam is a ring of 21 SMD 5050 RGB LEDs. You can control this ring to create glowing, color-changing washes or “eye-candy” effects that run independently from the main spotlight.
Q: How does the 6+12 prism combination work?
A: The fixture contains two different prisms (a 6-facet and a 12-facet). They can be dropped in front of the beam and rotated independently. When layered together, they multiply your chosen GOBO pattern into a massive, wide-spread geometric web across the room.
Q: Do I need a DMX controller to use this light?
A: No. While DMX (13/15CH) gives you complete creative control over every feature, you can also use the Voice (sound-activated) or Self-Propelled (auto) modes. The light will run through built-in, highly dynamic programs automatically.
Q: What is the 6-color rainbow wheel?
A: In addition to the standard 8 static colors, this light features a specialized rainbow effect wheel. When engaged, it splits the single beam into a multi-colored projection, creating stunning, vibrant sweeps of light.
