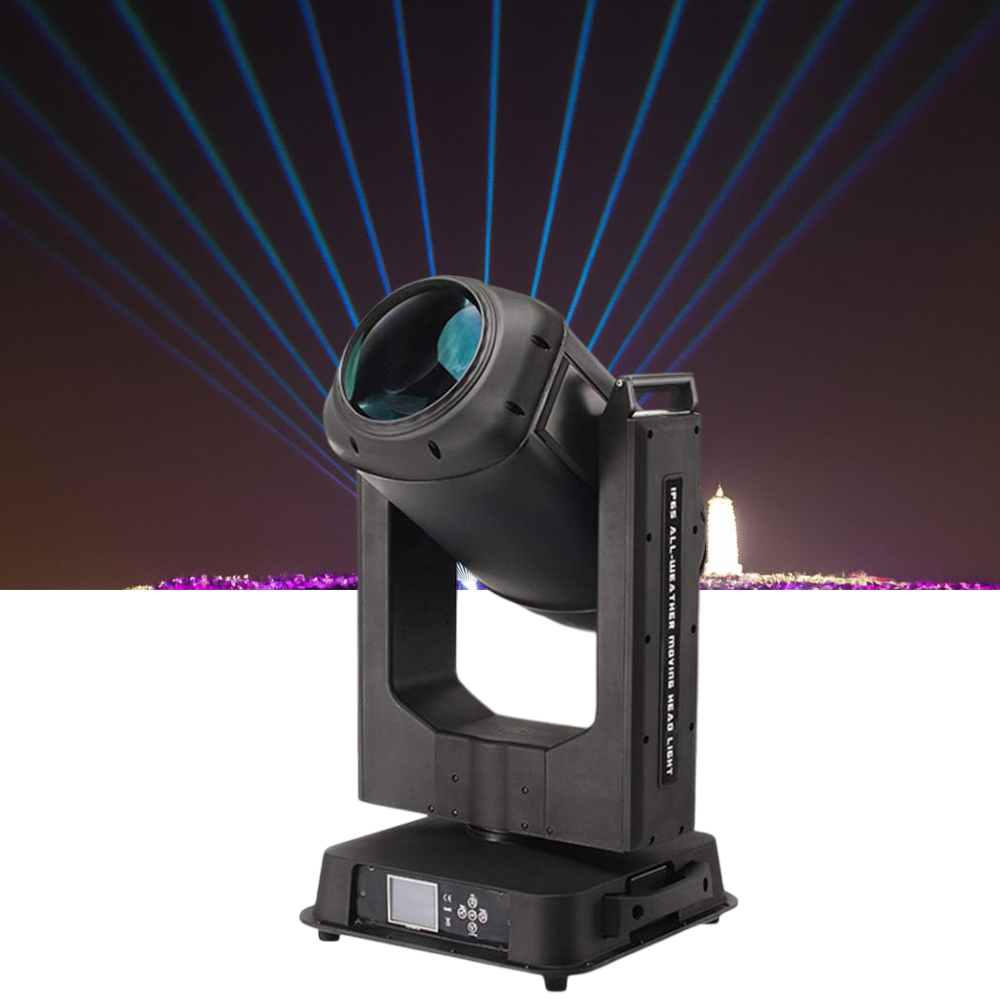

MB-600W Outdoor Moving Head Beam Light
600W High Brightness · Outdoor Waterproof · DMX512 Control · Prism & Color Effects.

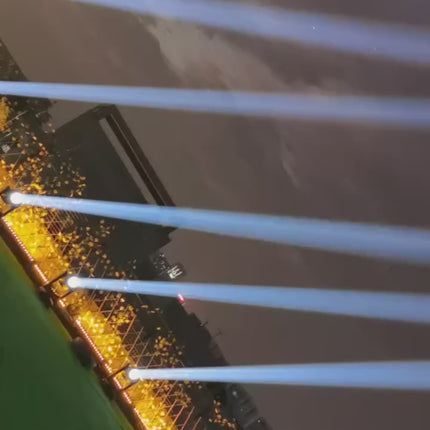

The MB-600W Outdoor Moving Head Beam Light is a heavy-duty powerhouse designed for breathtaking city skylines, landmark illumination, stadium concerts, and grand outdoor festivals. Its incredibly bright 600W lamp delivers a piercing 1.2° beam that can reach up to 1000 meters into the night sky. Built to conquer the elements, it features a rugged IP65 waterproof rating and a premium cooling system. Equipped with a rich palette of colors, sharp metal gobos, and advanced prism effects, this fixture gives lighting designers the ultimate tool for large-scale outdoor visual productions.
Key Benefits
- Massive Sky-Tracking Output: Generates an astonishing 660,000 lumens at 10m with a 1.2° ultra-tight beam angle, allowing for aerial projections up to 1000m.
- IP65 Weatherproof Rating: Fully sealed against rain, snow, and dust, ensuring flawless, uninterrupted performance during outdoor festivals and permanent landmark installations.
- Vivid Optics & Gobos: Features a color wheel (11 colors + open, half-color, and rainbow) and a fixed gobo wheel (14 metal gobos + open) with bidirectional shaking.
- Advanced Aerial Effects: Utilize the 8-facet prism and the specialized rainbow prism to fracture the main beam into complex, sweeping mid-air arrays.
- Pro-Level Movement: 540° Pan and 270° Tilt driven by high-precision 3-phase motors with 8/16-bit fine adjustment for smooth, cinematic sweeps.
- RDM & DMX Integration: Supports standard DMX512 and RDM (Remote Device Management) for easy remote addressing without needing to access the fixture’s display panel.
Setup & Operation Guide
💡
📌
- Step 1: Securely mount the fixture to your outdoor stage truss or ground base. Ensure the rigging structure can safely support the unit’s weight.
- Step 2: Connect the waterproof power cable to a reliable AC90–240V power source.
- Step 3: Use the included waterproof 3-pin extension signal cables to link your DMX lines. Lock the waterproof collars to prevent moisture ingress.
- Step 4: Utilize RDM via your lighting console to quickly assign DMX addresses to all rigged fixtures remotely.
- Step 5: When the show is over, allow the internal cooling fans to run for several minutes after striking off the 600W lamp to properly dissipate internal heat.
Technical Specifications
| Model / Input Voltage | IM-WPB600 / AC90–240V, 50/60Hz |
|---|---|
| Light Source / Luminous Flux | 600W Lamp (7500K Color Temp) / 660,000 lux @ 10m |
| Beam Angle / Max Distance | 1.2° Ultra-Narrow Beam / Up to 1000m Projection |
| Optics System | 11 Colors + Open | 14 Metal Gobos + Open | 8-Facet & Rainbow Prisms |
| Control Mode / Protection | DMX512 with RDM / IP65 (Fully Weatherproof) |
| Movement Range | Pan: 540° / Tilt: 270° (8/16-bit Fine Adjustment) |
| Dimensions | 550 × 420 × 820 mm (L21.7 × W16.5 × H32.3 in) |
| Weight | Net: 32.9 kg (72.5 lbs) / Gross: 37.9 kg (83.6 lbs) |
| Packing List | 1 x 600W Waterproof Moving Head, 1 x Waterproof Power Cable, 1 x 3m Waterproof Signal Cable, 1 x 1m Switching Signal Cable, 1 x User Manual |
💬 Planning a large outdoor festival or need a bulk rig quote?
Chat with our technical team for expert advice on outdoor staging layouts, IP65 DMX routing, and exclusive B2B wholesale pricing.
Frequently Asked Questions
Q: Is the fixture completely safe to leave out in the rain?
A: Yes! The IP65 rating means the housing is completely sealed against dust ingress and is protected against heavy jets of water (rain/snow). It is designed specifically for demanding outdoor environments and permanent landmark installations.
Q: Can I control multiple heads together easily?
A: Absolutely. By daisy-chaining the fixtures using the provided waterproof DMX cables, you can control dozens of units simultaneously via your lighting console to create massive, synchronized sky-sweeping effects.
Q: What is RDM and why is it useful here?
A: RDM (Remote Device Management) allows you to set or change the DMX address of the fixture directly from your lighting console. This is incredibly useful for heavy outdoor fixtures, as you won’t need to climb a truss to manually change settings on the display screen.
Q: How does the Rainbow Prism effect work?
A: Aside from the standard 8-facet prism that splits the beam into 8 distinct shafts, the rainbow prism adds an optical color-separation layer. When engaged, it fractures the intense white beam into a sweeping, multi-colored geometric pattern.
