MB-350W 3-In-1 Moving Head Beam Light

Name: MB-350W 3-In-1 Moving Head Beam Light
SKU: 29623
Availability: InStock

MB-350W 3-In-1 Moving Head Beam Light - Image 1

MB-350W 3-In-1 Moving Head Beam Light - Image 2

Click to enlarge

MB-350W 3-In-1 Moving Head Beam Light - Image 3

MB-350W 3-In-1 Moving Head Beam Light - Image 4

MB-350W 3-In-1 Moving Head Beam Light - Image 5

Price range: $812.00 through $1,711.00

Plug

US
EU
UK
AU
Other

Unit

1 Unit
2 Units
2 Units with Flight Case

Clear

Why Choose Any Case Gear?

1. Premium Quality Assurance
We ensure every unit meets rigorous industrial standards for performance and safety before it reaches you.

2. Dedicated After-Sales Care
Our commitment doesn’t end after purchase. We provide ongoing technical support to help you get the most from your equipment. Whether you need maintenance tips or operational advice, our expert team is just a message away.

3.Secure & Transparent Transactions
Your security is our priority. We use encrypted payment gateways and adhere to strict privacy policies to protect your personal information. Shop with confidence knowing your data is safe with us.

Customer service

Our customer support team is available Monday to Friday, 9:00 AM - 5:00 PM (GMT+8).

You can contact us via the form below:

Description

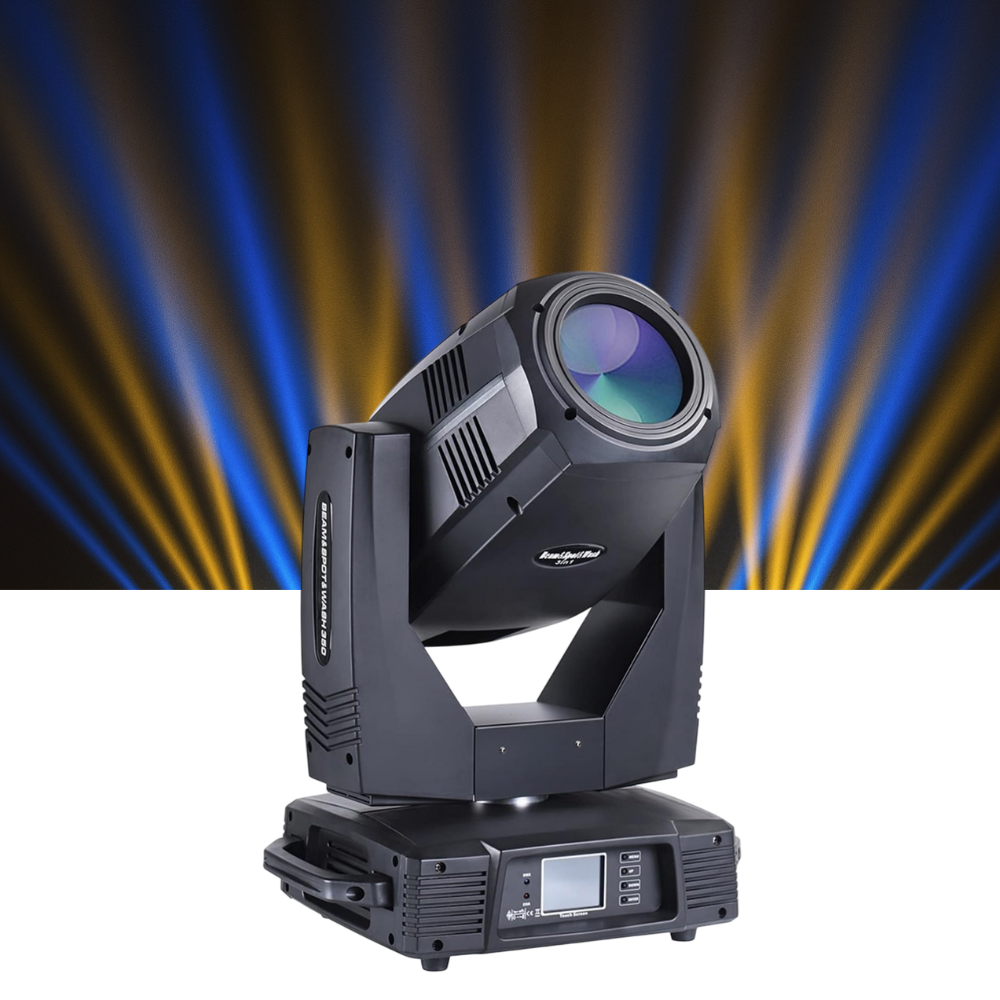

MB-72 350W 3-In-1 Moving Head Beam Light

Beam · Pattern · Wash · 13 Colors · 23 Patterns · DMX512 & Auto Mode.

The MB-72 is a professional-grade 3-in-1 moving head light that integrates piercing beam, crisp pattern projection, and broad wash functions into one high-performance chassis. Driven by a premium Osram 350W discharge lamp, it delivers outstanding optical clarity and immense brightness, making it the perfect lighting solution for large concerts, theaters, weddings, clubs, and event productions. Engineered with 16 high-precision quiet motors, a powerful dual-prism effect system, and an intelligent overheating protection system, the MB-72 guarantees long-term reliable operation even under the most demanding live conditions.

Key Benefits

3-in-1 Hybrid Versatility: Seamlessly switch between a razor-sharp 2° beam, a focused gobo projection, and a wide 38° stage wash using the linear zoom and focus system.
Premium Osram Optics: The 350W Osram lamp ensures extreme brightness, high color temperature, and ultra-clear pattern projection over long distances.
Massive Creative Palette: Features 13 vibrant colors (+ white) alongside a dual gobo system (14 fixed metal patterns + 9 rotating glass stereo patterns).
Advanced Dual Prisms: Drop in dual prisms with bidirectional rotation to fracture the beam into mesmerizing, room-filling geometric arrays.
High-Speed Strobe: Dual chip strobe mechanic delivers rapid, aggressive flashes from 0.5 to 9 times per second.
Smooth & Quiet Operation: Powered by 16 high-precision stepper motors for lightning-fast, incredibly smooth, and whisper-quiet Pan/Tilt movements.

Setup & Operation Guide

💡

Hybrid Optics Advantage. The linear zoom and focus mechanics allow this fixture to do the job of three separate lights. Keep the beam tight at 2° for aggressive mid-air effects, zoom out slightly and focus the lens to project crisp glass gobos onto walls, or open fully to 38° for an immersive color wash.

📌

Important Notice: We offer multiple power plug standards including UK, AU, EU, and US. If no preference is stated, we will ship the standard plug for your destination country. Ensure the fixture’s cooling vents are kept clear, as the intelligent overheating protection system requires proper airflow for the 350W discharge lamp.

Step 1: Securely rig the fixture to your truss system using heavy-duty clamps and a certified safety cable. The fixture weighs 19kg, so ensure the rigging point is rated appropriately.
Step 2: Connect the power cable to a reliable AC 100V–240V power source.
Step 3: Use the integrated LED LCD touchscreen and key controls to set your operating mode or DMX address.
Step 4: For professional programming, connect a DMX cable to the IN port and select either the 16-channel or 24-channel mode to unlock full control over the zoom, focus, and dual prisms.
Step 5: After your show, allow the fixture to remain powered on with the lamp struck off for a few minutes so the cooling fans can properly cool the Osram bulb before packing it into a flight case.

Technical Specifications

Voltage / Ballast	AC 100V–240V, 50/60Hz / Electronic Ballast
Light Source & Life	Osram 350W Discharge Lamp / ~2,000 Hours
Color & Gobo Wheels	13 Colors + White \| 14 Fixed Patterns + 9 Rotating Glass Stereo Patterns
Zoom & Focus / Beam Angle	Motorized Linear Focus & Zoom / 2° to 38°
Prisms & Strobe	Dual Prisms (Bidirectional Rotation) / 0.5–9 flashes/sec
Control Mode / DMX CH	DMX512, Self-Propelled, Sound-Activated / 16 or 24 Channels
Hardware / Motors	High-Temp Alloy Plastic Housing / 16 High-Precision Quiet Motors
Weight / Packing Size	Net: 19 kg (Gross: 22 kg) / 48 × 48 × 59 cm
Packing List	1 x MB-72 350W Moving Head, 1 x Power Cable, 1 x DMX Cable, 1 x Mounting Kit, 1 x User Manual

💬 Need a wholesale quote or expert technical support?

Chat with our technical team for expert advice on DMX programming, custom rig layouts, and the best B2B wholesale pricing for your region.

Message us on WhatsApp

Frequently Asked Questions

Q: What is a “Discharge Lamp” and why is it used?

A: Unlike standard LEDs, the Osram 350W is an HID (High-Intensity Discharge) lamp. It creates an incredibly bright, highly concentrated beam with a pure white color temperature. This technology allows the beam to punch through heavy stage lighting and project sharp gobos over vast distances.

Q: What is the difference between the Fixed and Rotating Gobo wheels?

A: The fixed gobo wheel contains 14 metal stamped patterns that offer sharp, static shapes. The rotating gobo wheel features 9 premium glass “stereo” patterns that can physically spin inside the fixture, creating dynamic, moving textures on walls and dance floors.

Q: Can I use this fixture without a lighting console?

A: Yes! You can use the intuitive LCD touchscreen to set the light to ‘Sound-Activated’ or ‘Self-Propelled’ (Auto) mode for instant, impressive light shows without needing any DMX programming.

Q: Is the housing durable enough for touring?

A: Yes, the chassis is built from a high-temperature alloy plastic that is incredibly robust while remaining relatively lightweight for a 350W fixture. It is designed to handle the rigors of professional touring and frequent transport.
