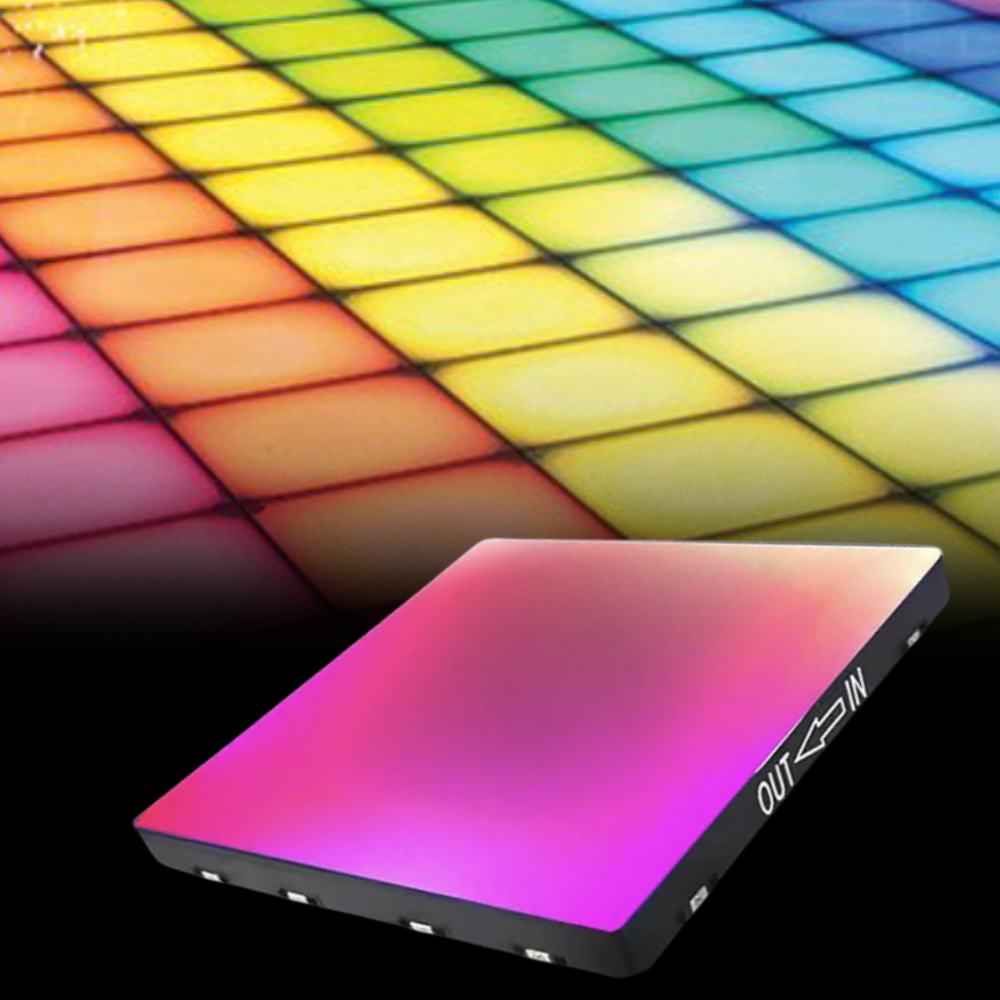

LA-221 Rainbow LED Dance Floor (3D Abyss Effect)
Colorful RGB 3IN1 Lighting · Dual Connection Options · 10mm Tempered Glass.
Transform your venue with the LA-221 Rainbow LED Dance Floor. Engineered with 60 high-intensity 5050 SMD LEDs per panel and specialized interior mirrors, this floor creates a mesmerizing “3D Abyss” infinity illusion that reacts dynamically to the music. Built with a heavy-duty 10mm double-layer tempered glass surface and an impact-resistant ABS base, it safely supports massive crowds up to 500kg/m². Whether you are outfitting a high-end nightclub, an elegant wedding, or a professional touring stage, the LA-221 offers versatile magnetic or wired installation and seamless control via DMX512, SD card, PC, or Wi-Fi.
Key Benefits
- Spectacular 3D Illusion: The mirrored surface reflects the RGB 3IN1 full-color LEDs internally, creating a breathtaking “bottomless” rainbow effect that instantly elevates the party atmosphere.
- Ultra-Slim & Durable: At just 7cm thick, the panels are low-profile yet boast a massive 500kg/m² load-bearing capacity, making them safe for energetic dancing and heavy stage equipment.
- Rapid Deployment Options: Choose between traditional wired connections for permanent club installations, or magnetic interlocking edges for incredibly fast mobile event setups.
- Smart Control Hub: Trigger built-in programs via the SD Controller, let it run on Sound Active mode, or take complete pixel-mapping control using a 7-channel DMX console.
- Event-Ready Safety: Rated IP55 waterproof, the sealed tempered glass surface protects against spilled drinks and features an anti-slip finish to keep guests safe.
Product Highlights
Setup & Operation Guide
💡
📌
- Preparation: Ensure the sub-floor is clean, dry, and flat. Map out your 50x50cm grid.
- Connection: Lay the first panel. If using the magnetic version, simply slide the next panel into place until the magnets snap and transfer power/data. If wired, connect the specialized cables securely between panels.
- Edging: Attach the protective sloped edges around the perimeter, then secure the floor using the bottom locking plates to prevent shifting.
- Controller Setup: Connect the main power supply and the SD Controller to the designated starting panel.
- Operation: Use the remote, SD auto-programs, or your DMX console to illuminate the floor.
Technical Specifications
| Panel Size / Thickness | 50 × 50 × 7 cm (L × W × H) |
|---|---|
| Input Voltage / Power | 90-260VAC, 50/60 Hz / Highly Efficient 12W per panel |
| LED Specifications | 60 pcs 5050 SMD LEDs | RGB 3IN1 Full Color |
| Materials | 10mm Double-Layer Tempered Glass Surface + ABS Plastic Base |
| Control Options | DMX512 (7CH), SD Controller, PC, Wi-Fi, Auto, Sound Active |
| Durability / Protection | Load Bearing: 500 kg/m² | Waterproof Rating: IP55 |
| LED Lifespan | ≥ 80,000 Hours |
| Net Weight | 9.1 kg per panel |
System Components
- ✔️ LA-221 LED Dance Floor Panels
- ✔️ Master Power Supply Box
- ✔️ SD Card Controller System
- ✔️ Sloped Protective Perimeter Edging
- ✔️ Bottom Locking Plates
- ✔️ Heavy-Duty Flight Case (for bulk transport)
💬 Need a custom stage layout or an exclusive wholesale quote?
Chat with our in-house engineering team to calculate the exact number of panels, power supplies, and edges needed for your specific event space. We offer exclusive B2B volume discounts and expert technical support for DMX integration.
Frequently Asked Questions
Q: Is the glass surface easily scratched by high heels?
A: No. The floor is manufactured with 10mm double-layer tempered organic glass specifically designed to resist scratching, scuffing, and heavy impacts. However, please ensure the floor is kept free of sharp gravel or sand, which can act as an abrasive.
Q: Is the surface slippery?
A: The tempered glass features a specialized finish that provides necessary grip for dancing, ensuring it remains non-slip and safe for indoor environments, meeting IP55 safety standards.
Q: What is the difference between the Magnetic and Wired connections?
A: The Magnetic system allows panels to snap together instantly, automatically transmitting power and data—ideal for rental companies that need to set up and tear down quickly. The Wired system requires manually plugging in cables between panels, which is perfect and more cost-effective for permanent installations in clubs or studios.
Q: What should I consider when choosing a venue for this floor?
A: Ensure you have a completely flat, hard sub-floor. Calculate your required square meterage based on guest capacity, and remember the floor is highly reflective—plan your overhead lighting accordingly to maximize the 3D Abyss effect.
