LA-218 Hybrid Infinity & Glossy LED Dance Floor
Infinity Abyss + Classic Glossy Style · Dual-Texture Visual Impact.

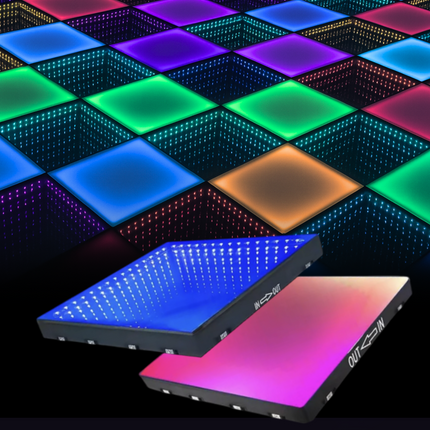

The LA-218 is a revolutionary hybrid dance floor that combines two distinct and stunning lighting formats into one cohesive, dynamic system. By alternating deep “Infinity Mirror” panels with sleek “Classic LED Glossy” panels, this floor creates a mesmerizing checkerboard of depth and solid color. Built to endure the highest energy events, each 50x50cm panel features a 10mm double-layer tempered glass surface capable of supporting 500kg/m². Ideal for cutting-edge nightclubs, high-end weddings, and interactive brand activations, the LA-218 offers unparalleled visual versatility with robust DMX, SD, and Sound Active control.
Key Benefits
- Hybrid Visual Synergy: The alternating panels contrast the “bottomless” 3D abyss illusion against bright, solid-color glossy squares, creating complex geometric patterns that react to the music.
- Heavy-Duty Tempered Glass: The 10mm double-layer organic tempered glass is highly resistant to scratches and impacts, while maintaining a non-slip rating for guest safety.
- Vibrant RGB 3IN1 Lighting: Packed with 60 high-intensity 5050 SMD LEDs per panel, delivering millions of color combinations with a massive ≥100,000-hour lifespan.
- Commercial Load Capacity: Engineered with a reinforced ABS plastic base, each square meter safely supports up to 500 kg—perfect for large crowds and heavy stage props.
- Comprehensive Control Options: Run pre-programmed shows via the SD Controller, sync it to the music with Sound Activation, use the wireless remote for quick color changes, or take full pixel-mapping control via DMX.
Product Highlights
Setup & Operation Guide
💡
📌
- Preparation: Sweep the sub-floor clean. Map out your 50x50cm grid, assigning alternating spots for the Infinity and Glossy panels.
- Connection: Slide the panels together using the integrated magnetic connection system. This securely links the tiles and automatically transfers power and data.
- Edging: Attach the sloped protective edges around the perimeter, then secure the floor using the included bottom locking plates.
- Controller Setup: Connect the master Power Supply and the SD Controller to the designated starting panel.
- Operation: Activate the floor using the remote, select an auto-program via the SD controller, or utilize your DMX console.
Technical Specifications
| Panel Size / Thickness | 50 × 50 × 7 cm (L × W × H) |
|---|---|
| Input Voltage / Power | 90–240V AC, 50/60Hz / 12W per panel |
| LED Specifications | 60 pcs 5050 SMD LEDs | RGB 3IN1 Full Color |
| Surface Material | 10mm Double-Layer Tempered Organic Glass (Mirrored & Glossy) |
| Control Options | DMX512, SD Controller, Remote Control, Auto Run, Sound Active |
| Durability / Protection | Load Bearing: 500 kg/m² | Waterproof Rating: IP55 |
| LED Lifespan | ≥ 100,000 Hours |
System Components
- ✔️ LA-218 Infinity Mirror Panels
- ✔️ LA-218 Classic Glossy Panels
- ✔️ Master Power Supply
- ✔️ SD Card Controller System
- ✔️ Sloped Protective Perimeter Edges
- ✔️ Bottom Locking Plates
- ✔️ Heavy-Duty Flight Case (included in standard kits)
💬 Need a custom layout ratio or an exclusive wholesale quote?
Chat with our in-house engineering team to calculate the exact number of Infinity and Glossy panels, power supplies, and edges needed for your specific event space. We offer exclusive B2B volume discounts and expert technical support for DMX integration.
Frequently Asked Questions
Q: Is the glass surface easily scratched by high heels?
A: No. The floor is manufactured with 10mm double-layer tempered organic glass specifically designed to resist scratching, scuffing, and heavy impacts. However, please ensure the floor is kept free of sharp gravel or sand, which can act as an abrasive.
Q: Is the surface slippery?
A: The tempered glass features a specialized finish that provides necessary grip for dancing, ensuring it remains non-slip and safe for indoor environments, meeting IP55 safety standards.
Q: How do the panels connect for installation?
A: The panels utilize a smart magnetic connection system that allows them to snap together instantly. This magnetic link automatically transfers both power and data between the tiles, significantly reducing setup time compared to traditional wired systems.
Q: Can I order more of one style of panel than the other?
A: Absolutely! While a 50/50 split creates a perfect checkerboard, you can customize your order to include any ratio of Infinity to Glossy panels to suit your specific design vision.
