LA-217 Liquid Sensing Interactive LED Dance Floor
Interactive Liquid Visuals · Rapid Magnetic Assembly · Waterproof IP55.

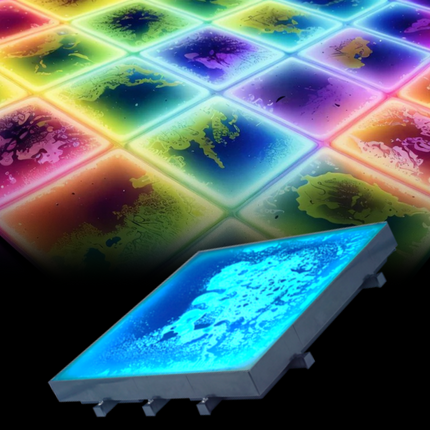

The LA-217 is a one-of-a-kind LED dance floor designed to captivate and engage. Featuring advanced liquid-sensing technology, each tile reacts dynamically to foot traffic, displaying vibrant, fluid-like color splashes with every step. Perfect for high-energy parties, experiential brand activations, and unforgettable weddings, this floor turns dancing into an interactive visual experience. Built with a heavy-duty tempered glass surface and a rapid magnetic interlocking system, the LA-217 combines the thrill of interactive RGB 3IN1 lighting with commercial-grade durability, safely supporting up to 500 kg/m² without a sound.
Key Benefits
- Interactive Step Response: Pressure-sensitive technology creates unique, immediate “liquid” color splashes where guests step, driving incredible engagement on the dance floor.
- Rapid Magnetic Assembly: Panels snap together instantly using an advanced magnetic interlocking system that automatically transfers power and data, eliminating messy wiring.
- Ultra-Durable Tempered Glass: The 10mm double-layer tempered glass is highly scratch-resistant, impact-proof, and features an anti-slip rating for maximum guest safety.
- Vibrant RGB 3IN1 Lighting: Packed with 60 high-intensity 5050 SMD LEDs per panel, delivering millions of brilliant color combinations.
- Versatile Control & Integration: Run interactive programs via the SD Card controller, wireless remote, Sound Activation, or standard DMX. (Note: Advanced PC control requires a customized version).
Setup & Operation Guide
💡
📌
- Preparation: Sweep the installation area to ensure no debris sits under the panels. Map out your 50x50cm grid.
- Magnetic Connection: Slide the panels together. The integrated magnetic system will lock them into place while automatically bridging the power and data lines.
- Perimeter Security: Attach the sloped protective edging around the floor, and install the bottom locking plates to prevent the grid from shifting.
- Controller Integration: Connect the master Power Supply and your chosen controller (SD or DMX interface) to the starting tile.
- Playback: Activate the floor and select the interactive liquid-sensing mode via your remote or controller.
Technical Specifications
| Panel Size / Dimensions | 50 × 50 × 7 cm |
|---|---|
| Input Voltage / Power | 90–240VAC, 50/60Hz / Highly Efficient 12W per panel |
| LED Specifications | 60 pcs 5050 SMD LEDs | RGB 3-in-1 Full Color |
| Surface & Base Materials | Double-Layer Tempered Organic Glass + ABS Plastic Base |
| Control Options | SD Card, DMX512, Wireless Remote, Sound, Auto, PC (Custom) |
| Durability / Protection | Load Capacity: 500 kg/m² | Waterproof Rating: IP55 |
| LED Lifespan | ≥ 100,000 Hours |
| Net Weight | 11 kg per panel |
System Components
- ✔️ LA-217 Liquid Sensing Dance Floor Panels
- ✔️ Master Power Supply
- ✔️ SD Card / DMX Controller System
- ✔️ Sloped Protective Perimeter Edging
- ✔️ Bottom Locking Plates
- ✔️ Heavy-Duty Flight Case (included for bulk transport)
💬 Need a custom layout calculation or a PC-compatible version?
Chat with our in-house engineering team to calculate the exact number of panels needed for your venue space. We provide exclusive B2B volume discounts, shipping logistics, and can arrange the custom PC-controlled version for advanced mapping.
Frequently Asked Questions
Q: How does the “liquid sensing” technology work?
A: The LA-217 utilizes pressure-sensitive technology beneath the tempered glass. When a guest steps on a tile, it triggers an immediate LED reaction, creating the illusion of a liquid color splash radiating outward from the point of impact.
Q: Will the glass surface reflect light under dresses or skirts?
A: Yes. Because the tempered glass surface is highly polished to maximize the LED vibrancy, it does possess a mirrored, reflective quality. We recommend advising your clients or guests of this when planning the event.
Q: Is the glass surface easily scratched by high heels?
A: No. The floor is manufactured with robust double-layer tempered organic glass designed to resist scratching, scuffing, and heavy impacts from formal footwear. Just ensure the floor is kept free of sharp gravel or sand.
Q: Can this floor be used outdoors?
A: Yes. The LA-217 features an IP55 waterproof rating, making it safe from spilled drinks and light moisture. However, the sub-floor must be completely flat and rigid (like a plywood base over grass) to prevent the magnetic joints from disconnecting.
