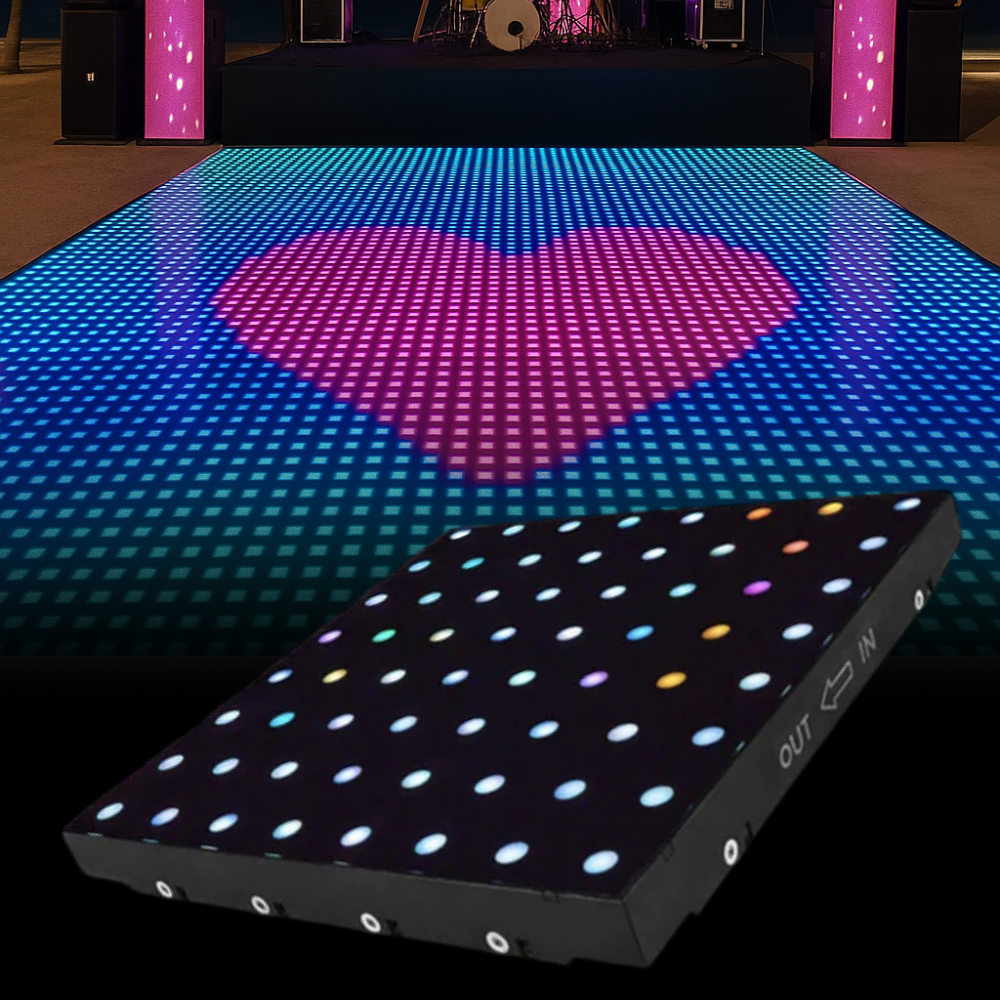

LA-212 Magnetic 3D LED Pixel Dance Floor
Custom Pixel Playback · Waterproof IP55–IP67 · Rapid Magnetic Assembly.
The LA-212 is a state-of-the-art magnetic 3D LED Pixel dance floor engineered to deliver fully immersive, highly customizable lighting experiences. Unlike standard RGB floors, the LA-212 allows for advanced pixel mapping, enabling the playback of scrolling text, dynamic video animations, and mesmerizing starry sky effects. With its versatile IP55–IP67 waterproof rating and silent, fanless operation, this floor is an elite choice for high-end weddings, outdoor festivals, and professional stage productions. It offers unparalleled control flexibility, seamlessly integrating with MADRIX, standard DMX, Wi-Fi, and SD card controllers.
Key Benefits
- Advanced Pixel Playback: Packed with 64 individual 5050 SMD LEDs per panel, allowing for high-resolution mapping of text, video animations, and complex 3D visual effects.
- MADRIX & Pro Control: Fully compatible with industry-standard MADRIX software for ultimate pixel control, alongside standard DMX, PC, Wi-Fi, and wireless remote options.
- All-Weather Waterproofing (IP55–IP67): Tightly sealed construction protects against heavy drink spills indoors and allows for confident deployment at outdoor events.
- Rapid Magnetic Setup: Panels feature a smart magnetic connection system that instantly snaps together, transferring both power and data without the need for complex wiring.
- Commercial Durability: The double-layer tempered glass surface and rugged ABS base safely support massive crowds and stage equipment up to 500 kg/m².
Product Highlights
Setup & Operation Guide
💡
📌
- Preparation: Sweep the installation area clean. Map out your grid to accommodate the 50x50cm panels.
- Connection: Slide the panels together. The integrated magnetic system will lock them into place while automatically bridging the power and pixel data lines.
- Perimeter Security: Attach the sloped protective edging around the floor, and install the bottom locking plates to prevent the grid from shifting.
- Controller Integration: Connect the master Power Supply and your chosen controller (SD, Wi-Fi router, or PC/MADRIX interface) to the starting tile.
- Playback: Launch your desired pre-programmed animations, starry sky effects, or custom text scrolling via your control software or remote.
Technical Specifications
| Panel Size / Dimensions | 50 × 50 × 7 cm (500×500×70mm) |
|---|---|
| Input Voltage / Power | 90–240VAC, 50/60 Hz / 12.8W per panel |
| LED Specifications | 64 pcs 5050 SMD LEDs | RGB 3-in-1 Full Color |
| Surface & Base Materials | Double-Layer Tempered Glass Surface + ABS Plastic Base |
| Control Options | MADRIX, PC, Wi-Fi, SD Card, DMX, Wireless Remote, Auto |
| Durability / Protection | Load Capacity: 500 kg/m² | Waterproof Rating: IP55–IP67 |
| Playback Capabilities | Custom Text, Video Animation, Starry Sky, Geometric Patterns |
| LED Lifespan | ≥ 100,000 Hours |
System Components
- ✔️ LA-212 3D Pixel Dance Floor Panels
- ✔️ Master Power Supply
- ✔️ SD Card / Pixel Controller
- ✔️ Sloped Protective Perimeter Edging
- ✔️ Bottom Locking Plates
- ✔️ Heavy-Duty Flight Case (included for bulk transport)
💬 Need a custom pixel layout or an exclusive wholesale quote?
Chat with our in-house engineering team to calculate the exact number of panels needed for your venue space. We provide exclusive B2B volume discounts, expert technical support for MADRIX software integration, and guidance on choosing between magnetic or wired panels.
Frequently Asked Questions
Q: Can I display custom logos and text on this floor?
A: Yes! Because this is a pixel-mapped floor (64 individual LEDs per panel), you can use compatible PC software (like MADRIX) or the programmable SD controller to display scrolling text, company logos, and video animations.
Q: Is the glass surface easily scratched by high heels?
A: No. The floor is manufactured with robust double-layer tempered organic glass designed to resist scratching, scuffing, and heavy impacts from formal footwear. Just ensure the floor is kept free of sharp gravel.
Q: Will the mirrored surface reflect light under dresses or skirts?
A: Yes. Because the LA-212 utilizes a mirrored glass surface to achieve its deep 3D effect, it will reflect light and objects positioned above it. We recommend advising your clients or guests of this reflective property.
Q: Can this floor be used outdoors?
A: Yes. The LA-212 features an IP55–IP67 waterproof rating, making it highly resistant to rain and moisture. However, the sub-floor must be completely flat and rigid (like a plywood base over grass) to prevent the magnetic joints from disconnecting.
