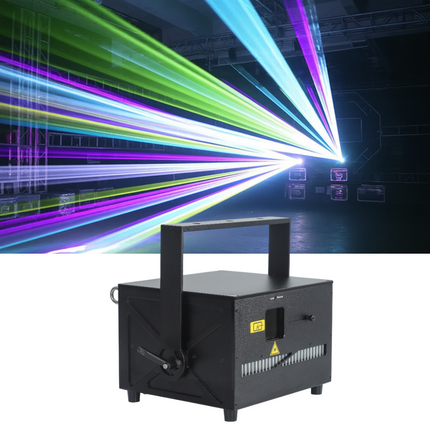

AL-6W Animation RGB Laser Light
6W High Brightness · RGB Animation · 200+ Patterns · ILDA & DMX Control.
The AL-6W Animation RGB Laser Light is a high-performance fixture built for mid-to-large size venues. Delivering a stunning 6W of pure RGB power, it produces incredibly bright, well-defined beams with very low spot divergence (<1.3mrad). Engineered for maximum versatility, it comes preloaded with over 200 dynamic patterns and supports ILDA, DMX512, SD Card playback, and standalone modes. Enclosed in a rust-resistant, sealed dustproof aluminum shell and protected by an intelligent TEC (Thermoelectric Cooling) system, the AL-6W guarantees flawless, maintenance-free performance for clubs, touring DJs, KTVs, and professional stage events.
Key Benefits
- Massive 6W Output: Features a powerful diode array (R: 1500mW, G: 1500mW, B: 3000mW) with pure analog modulation for seamless color blending and fading.
- Ultra-Fast 35kpps Scanners: High-speed galvanometer scanners provide incredibly smooth, flicker-free rendering of complex animations, text, and geometric lines.
- Plug & Play Show Library: Comes pre-loaded with over 200 preset animations (animals, geometry, text) and allows custom file playback via the built-in SD Card slot.
- Advanced TEC Cooling: Intelligent dual temperature control pairs high-speed fans with Thermoelectric Cooling (TEC) to keep the laser diodes at optimal temperatures, preventing power drop-off during long shows.
- Sealed Optical Floor: A dustproof internal design keeps fog fluid residue and dust away from the sensitive mirrors and lenses, reducing maintenance and extending lifespan.
- Complete Control Options: Connect to PC software via ILDA for custom drawing, map it to a console via DMX512, or let it run automatically to the beat of the music.
Setup & Operation Guide
💡
📌
- Step 1: Securely mount the laser to your lighting truss using a heavy-duty clamp and safety cable.
- Step 2: Insert the safety key and attach the remote interlock connector to enable the diode output.
- Step 3: Connect the power cable to an AC100-240V power source.
- Step 4: Use the digital menu to select your mode: Auto/Sound for standalone, DMX512 for console control, ILDA for live PC software control, or SD card playback.
- Step 5: For the most spectacular mid-air beam effects, always pair this 6W laser with a professional haze or fog machine.
Technical Specifications
| Laser Power / Wavelength | 6W Total | R: 1500mW (638nm) / G: 1500mW (520nm) / B: 3000mW (455nm) |
|---|---|
| Scanner System | 35kpps High-Speed Scanners |
| Modulation / Divergence | Analog Modulation (100Hz) / <1.3mrad |
| Control Modes | ILDA, DMX512, Sound-Activated, Auto, Master-Slave, SD Memory Card |
| Built-in Patterns | 200+ Preset Patterns (Geometry, lines, animals, text) |
| Cooling System | Intelligent Dual Temperature Control (High-Speed Fan + TEC Cooling) |
| Voltage / Power Draw | AC 100-240V, 50/60Hz / 160W |
| Dimensions / Weight | 23.5 × 26.5 × 19 cm / 9.2 kg |
| Packing List | 1 x AL-6W Laser Projector, 1 x Power Cord, 1 x Safety Key, 1 x Interlock Connector, 1 x User Manual |
💬 Need help picking the right laser or want bulk pricing?
Chat with our technical team for expert advice on ILDA software integration, custom stage setups, and exclusive B2B wholesale discounts.
Frequently Asked Questions
Q: How do I choose the right laser power for my venue?
A: As a general rule: 1–3W is great for house parties and small DJ booths; 6W–10W (like this unit) is the perfect sweet spot for medium clubs, bars, and indoor concerts; 20–30W is needed for large arenas; and 30–100W is required for outdoor landmark tracking.
Q: What is TEC cooling and why is it important on a 6W laser?
A: TEC stands for Thermoelectric Cooling. As high-power laser diodes heat up, they lose brightness and their color output can drift. TEC physically chills the diodes to a constant optimal temperature, ensuring the laser remains blindingly bright and color-accurate even after hours of continuous use.
Q: Do I need to buy Pangolin FB4 to use this laser?
A: It is not required. You can run spectacular shows using the 200+ built-in patterns, the SD card slot, or DMX. However, if you want to draw complex, custom logos or sync animations perfectly to a timecode track, purchasing a Pangolin FB4 interface and QuickShow software is highly recommended.
Q: What is the benefit of 35kpps scanners?
A: The speed of the internal mirrors (galvos) dictates how smoothly an image is drawn. Standard 20kpps scanners are fine for simple beams, but 35kpps allows you to project highly complex text and detailed animations without the image looking flickery or distorted to the human eye..
