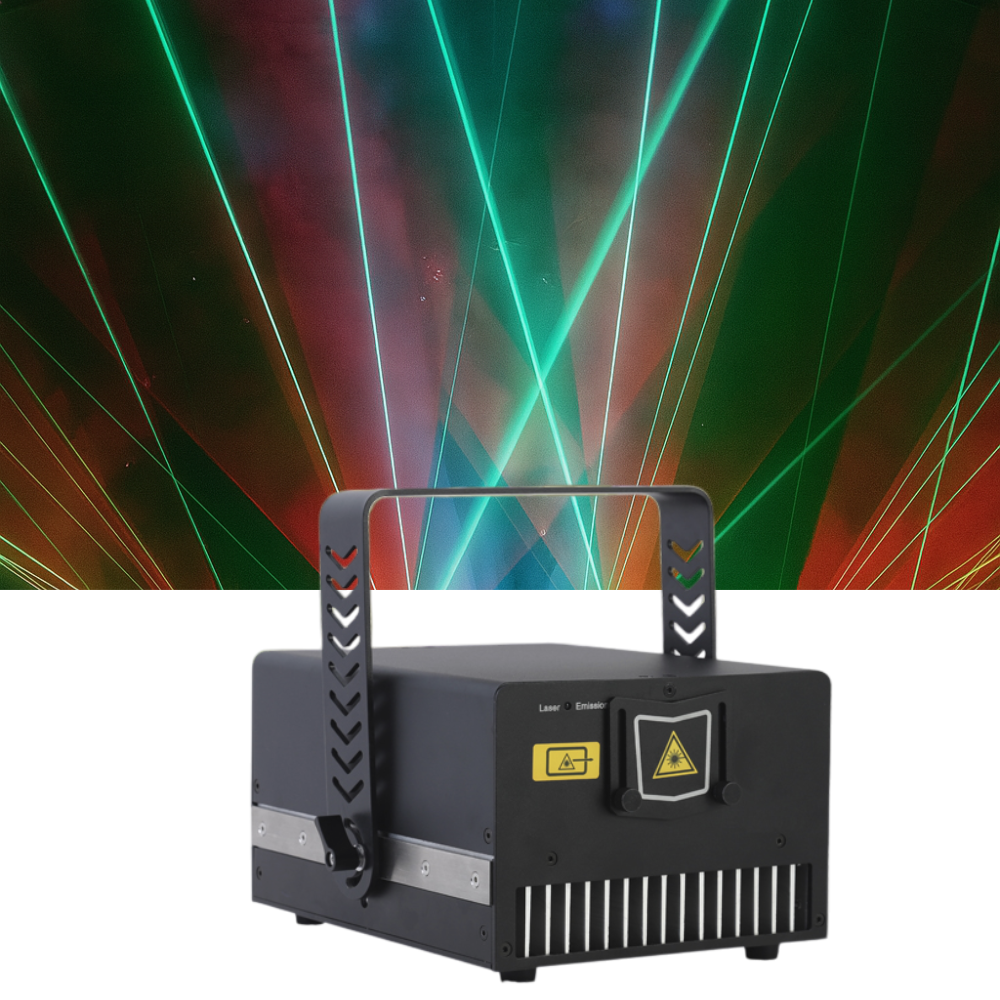

AL-3W Animation RGB Laser Light
Sealed Dustproof Design · RGB Animation · Compact & Powerful for Clubs & DJs.
The AL-3W Animation RGB Laser Light combines professional optical performance with a sealed, dustproof design for highly stable, maintenance-free use. Equipped with high-speed 20kpps scanners, it projects stunning, flicker-free animations, sharp mid-air beams, and liquid sky effects. With comprehensive control modes including ILDA (for PC software), DMX512, Sound-Activated, and Auto, it is a highly versatile and cost-effective choice for mobile DJs, bars, small clubs, and indoor stage shows. Its compact, rust-resistant aluminum housing and quiet cooling system ensure it is ready for any venue.
Key Benefits
- High-Speed Animation: Precision 20kpps+ galvo scanners ensure smooth, flicker-free rendering of complex animations, texts, and geometric patterns.
- Sealed Optical Floor: The dustproof design prevents stage fog residue and dust from coating the mirrors, drastically extending the laser’s lifespan and reducing maintenance.
- Pure RGB Analog Modulation: Unlike basic TTL lasers, analog modulation allows for seamless color fading and the creation of millions of distinct color shades.
- Tight Beam Divergence: A small divergence angle (<1.1mrad) ensures the beams remain sharp, concentrated, and intensely bright over long distances.
- Professional ILDA Support: Connect to PC laser software (like Pangolin QuickShow) via the 25-pin ILDA port to draw custom logos, texts, and timeline-based shows.
- Ultra-Compact & Portable: Weighing only 4kg gross, its sleek, rust-free aluminum housing is incredibly easy to transport and rig for mobile entertainers.
Setup & Operation Guide
💡
📌
- Step 1: Securely mount the laser using the attached yoke bracket. Always use a safety cable when rigging overhead.
- Step 2: Insert the safety key and attach the remote interlock connector (PC Lock) to enable the laser output.
- Step 3: Connect the power cord to a standard AC100~240V outlet.
- Step 4: Use the digital menu to select your mode: ‘Auto’ or ‘Music’ for standalone operation, ‘DMX’ for console integration, or ‘ILDA’ when connecting to PC software.
- Step 5: Use a high-quality haze or fog machine in your venue; atmospheric haze is required to see the mid-air laser beams and liquid sky effects.
Technical Specifications
| Laser Power & Wavelength | Total 3W | Red: 500mW (638nm) / Green: 850mW (520nm) / Blue: 1650mW (455nm) |
|---|---|
| Modulation / Divergence | RGB Analog Modulation / Beam size: 3×6.5mm, Divergence: <1.1mrad |
| Scanner System | 20kpps+ High-Speed Galvos, Scan Angle ±25° |
| Control Modes | ILDA, DMX512, Music (Sound), Auto, Master-Slave |
| Built-in Patterns | 160 Built-in Cues (7 groups x 20 cues) + 20 Animation Groups |
| Hardware / Cooling | Sealed Dustproof Aluminum Housing / 3 Silent 12V Fans |
| Voltage / Consumption | AC100~240V 50/60Hz / ≤65W |
| Dimensions / Gross Weight | 219 × 170 × 130 mm / 4 kg |
| Packing List | 1 x AL-3W Laser Projector, 1 x Power Cord, 1 x Safety Key, 1 x PC Lock Connector, 1 x User Manual |
💬 Need help choosing the right laser or want bulk pricing?
Chat with our technical team for expert advice on ILDA software integration, laser safety compliance, and exclusive B2B wholesale discounts.
Frequently Asked Questions
Q: Is 3W of laser power enough for my venue?
A: Yes! A 3W laser with tight beam divergence is incredibly bright and is the perfect sweet spot for mobile DJs, small to medium-sized indoor clubs, and private parties. For larger concert halls or outdoor festivals, we recommend stepping up to 10W or 20W models.
Q: What does ILDA mean, and do I need to use it?
A: ILDA is the standard protocol for connecting a laser to a computer. You do not need to use it—the laser runs perfectly using DMX or Auto modes with its 160 built-in patterns. However, if you want to draw custom shapes, project company logos, or type words, you will need to connect via ILDA using PC software.
Q: Do I need to buy Pangolin FB4?
A: Pangolin FB4/QuickShow is the industry-standard laser control software. It is optional but highly recommended if you plan to do custom ILDA programming. You can purchase the FB4 interface and software directly from Pangolin.
Q: Does it include a safety key?
A: Yes, ensuring professional compliance, this unit features a physical safety key switch and a PC Lock remote interlock connector to prevent unauthorized or accidental operation.
