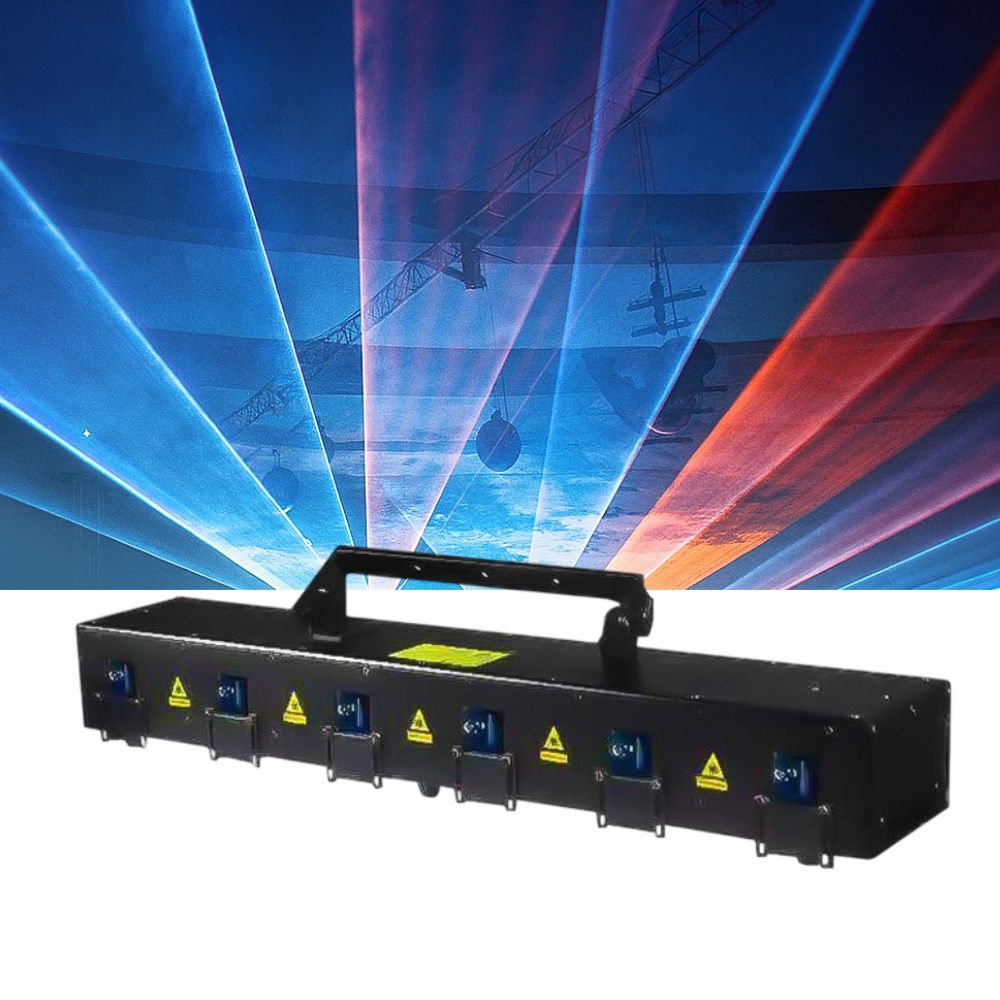

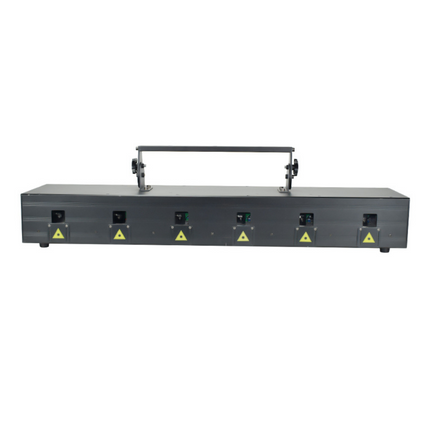

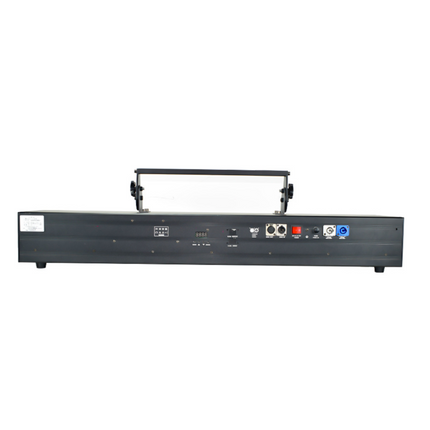

AL-09 6-Eyes Full Color Animation Laser Light
6-Head RGB Matrix ยท 200+ Patterns ยท Individual Control ยท Dustproof Design.
This 6-head RGB animation laser matrix features nearly 200 built-in pattern and beam effects. Each head can be individually controlled for pattern, color, brightness, and position, offering endless creative combinations and stunning stage effects. Its dust-proof IP61 design effectively prevents dust and smoke from entering the unit, extending the laser’s lifespan and reducing maintenance. Using high-stability semiconductor lasers and diode lasers, this unit operates reliably in environments from -30โ to 40โ. The compact aluminum body is rust-resistant with a laser-engraved logo, and uses an intelligent dual temperature control system with silent fan + semiconductor TEC heat sink.
Key Benefits
- Massive Visual Impact: 6-head RGB animation matrix comes loaded with over 200 built-in patterns and beam effects.
- Individual Head Control: Take full command of each of the 6 laser heads independently for custom patterns, colors, brightness, and positioning.
- Dust-Proof Reliability: IP61-rated sealed optical floor prevents dust and stage smoke fluid from entering, massively extending the laser’s lifespan.
- Vivid Color Modulation: Utilizes RGB analog modulation for buttery smooth color mixing and fading, vastly superior to standard TTL lasers.
- Advanced Cooling: Intelligent dual temperature control system pairs a silent fan with a semiconductor TEC heat sink for stable operation from -30โ to 40โ.
- Professional Connectivity: Complete control via DMX512 (Normal 12CH / Expert 62CH), MUSIC, AUTO, and optional ILDA modes for software control.
Setup & Operation Guide
๐
โ ๏ธ
- Step 1: Securely mount the 1-meter laser bar to your truss using the included flying ring bolts and brackets. Always attach a safety cable.
- Step 2: Insert the safety key and ensure the remote interlock is properly connected; the laser will not fire without these safety circuits closed.
- Step 3: Connect the power cable to a reliable AC 90-250V power source.
- Step 4: For professional programming, connect a DMX cable to the DMX IN port and select your channel mode (12CH or 62CH), or connect an ILDA interface (optional) for software control.
- Step 5: For standalone use without a console, navigate the menu to select AUTO or MUSIC (Sound Active) mode for an instant, music-synced light show.
Technical Specifications
| Voltage / Rated Power | AC 90~250V, 50/60Hz / 100W~200W |
|---|---|
| Laser Output (Per Head) | Red: >400mW (638nm) | Green: >600mW (520nm) | Blue: >1000mW (450nm) |
| Scanner System | 20KPPS High-Speed Galvo, ยฑ20ยฐ Scanning Angle |
| Control Mode / DMX CH | DMX512, MUSIC, AUTO, ILDA (Optional) / Normal 12CH or Expert 62CH |
| Beam Specs & Modulation | Diameter: <6mm | Divergence: <1.5mrad | RGB Analog Modulation |
| Protection Level / Temp | IP61 (Dustproof) / Works in -30โ to 40โ |
| Dimensions / Weight | 100 ร 16.7 ร 11.5 cm / Net: 12 kg (Gross: 16 kg) |
| Packing List | 1 x AL-09 6-Eyes Laser Unit, 1 x Power Cord, 1 x Safety Key, 1 x Remote Interlock, 1 x User Manual (Plug type tailored to country) |
๐ฌ Need help choosing your laser or want bulk pricing?
Chat with our technical team for expert advice on DMX programming, laser safety compliance, and wholesale discounts.
Frequently Asked Questions
Q: How do I choose the right laser power for my venue?
A: As a general rule: 1โ6W is ideal for home parties and small events; 10W is perfect for bars and medium clubs; 20โ30W cuts through large concert stages; and 30โ100W is required for outdoor architectural or landmark displays. Contact us if you need help deciding!
Q: Do your laser lights have a security key?
A: Yes. For professional compliance and safety, every laser unit we sell comes equipped with a dedicated safety key switch and a standard remote interlock connector to prevent unauthorized operation.
Q: Do I need to buy FB4 to use this laser?
A: No, FB4 is not needed for basic effects. You can achieve fantastic results using the 200+ built-in patterns via DMX or Auto modes. However, for highly advanced, timeline-based custom laser animations, an FB4 interface (optional) can be used. See Pangolin for more details.
Q: What does IP61 mean? Can I use it in the rain?
A: IP61 means the unit is highly dust-proof, preventing stage smoke residue and dust from entering the optical floor, which dramatically increases the laser’s lifespan. However, it is not waterproof and must be protected from direct rain or moisture if used outdoors.
