AL-08 8-Eyes RGB Full Color Animation Laser Light
500mW Laser Beams · 180° Swing · Multiple Mounts · DMX & Music Control.
Each laser eye is equipped with a powerful 500mW laser light source, available in RGB full color or single red. The AL-08 delivers brilliant beam sweeps with a 180° up and down swing and supports upside-down, side-mounted, and front-mounted installations for ultimate flexibility in stage setups. With multiple control methods including DMX512, AUTO, and MUSIC sound activation, it offers both normal and professional modes for different venue needs. Ideal for bars, KTV, performing arts, hotels, and various entertainment spaces.
Key Benefits
- High-Power Optics: 8 powerful 500mW laser heads (available in RGB or single red) deliver intense, piercing beams.
- Dynamic Sweeping: A wide 180° up and down scanning angle creates rich, room-filling beam sweeping effects.
- Mesmerizing Visuals: Capable of speed laser line performance, strobe, infinite dimming, lattice effects, and fluid water flow animations.
- Versatile Rigging: Compact design supports upside-down, side, or front-mounted installations to fit any truss or stage design.
- Flexible Control: Full operation via DMX512 (11/19CH for RGB), AUTO, MUSIC sound activation, and Master/Slave modes.
- Safety First: Built with professional standards, including a dedicated safety key and interlock system.
Setup & Operation Guide
🌟
⚠️
- Step 1: Securely mount the laser using the included mounting kit. The flexible chassis allows for upside-down, side, or front mounting. Always use a safety cable.
- Step 2: Insert the safety key and ensure the interlock is properly engaged; the laser will not fire without these safety measures in place.
- Step 3: Connect the power cable to a reliable 90-240V AC power source.
- Step 4: For professional programming, connect a DMX cable to the DMX IN port and select your channel mode (11/19CH for RGB, or 15/17CH for RED) via the digital display.
- Step 5: For standalone use without a console, navigate the menu to select AUTO or Voice (MUSIC) control.
Technical Specifications
| Rated Voltage / Power | 90-240V 50-60Hz / 500W (RGB) or 180W (RED) |
|---|---|
| Laser Power & Wavelengths | 500mW × 8pcs | Green: 520nm (100mW), Red: 638nm (200mW), Blue: 450nm (200mW) |
| Scanning Angle | 180 degrees |
| Control Mode / Channels | DMX512, Auto, Voice Control, Master/Slave | RGB: 11/19 CH, RED: 15/17 CH |
| Built-in Effects | Laser line performance, strobe, infinite dimming, lattice effect, water flow effect |
| Environment / Temp | Indoor Use Only / -20℃ to 55℃ |
| Dimensions / Weight | Machine: 10.8 × 8.05 × 17 cm / Net Weight: 6 kg |

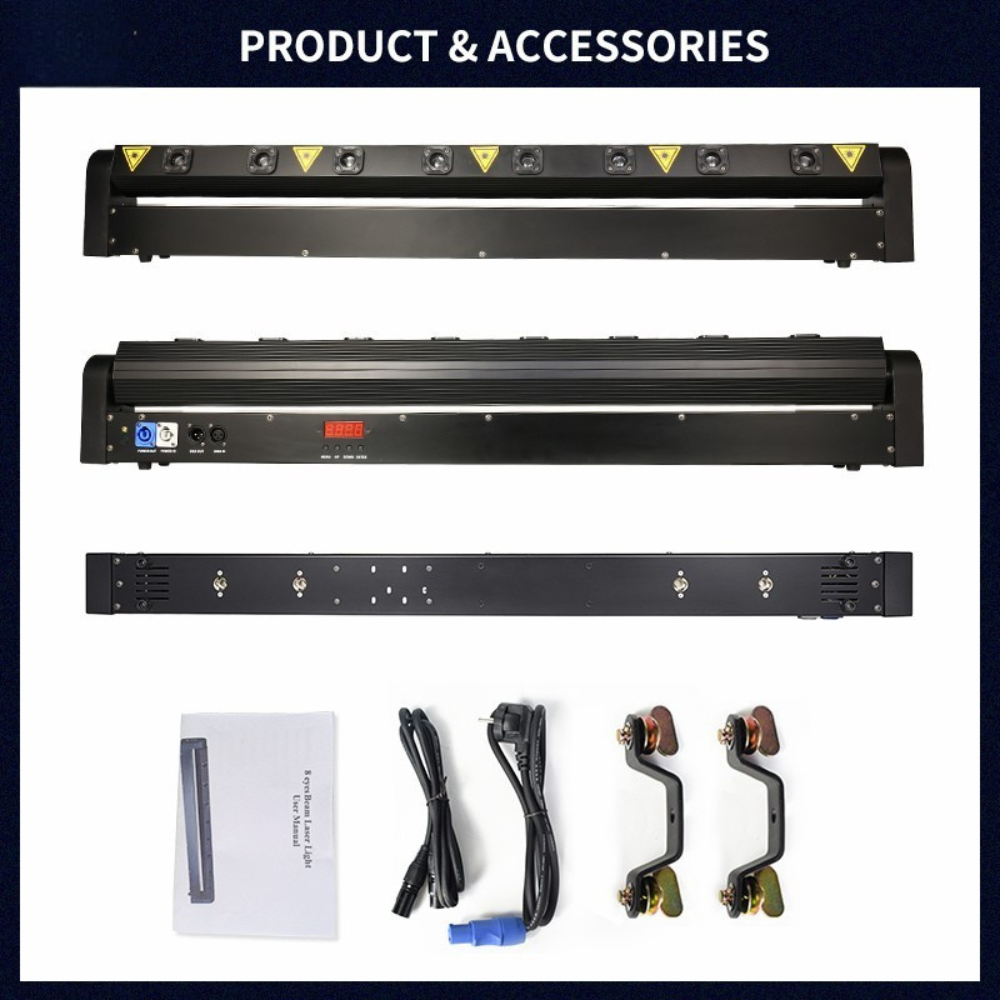

| Packing List | 1 x AL-08 Laser Light Unit, 1 x Safety Key, 1 x Power Cable, 1 x Mounting Kit, 1 x User Manual |
💬 Questions about which laser to choose or need bulk pricing?
Chat with our technical team for expert advice on laser safety compliance, DMX integration, and wholesale orders for your venue.
Frequently Asked Questions
Q: How do I choose the right laser power for my venue?
A: As a general rule: 1–6W is ideal for home parties and small events; 10W is perfect for bars and medium clubs; 20–30W cuts through large concert stages; and 30–100W is required for outdoor architectural or landmark displays.
Q: Do your lasers have a safety key?
A: Yes. For professional compliance and safety, every laser unit comes equipped with a dedicated safety key switch and an interlock connector to prevent unauthorized or accidental operation.
Q: Do I need to buy Pangolin FB4 to use this laser?
A: No, FB4 is not required for basic shows. You can achieve fantastic effects using the built-in Auto/Sound modes or standard DMX512. However, for highly customized laser animations and timeline-based shows, you can purchase an FB4 interface separately from Pangolin to integrate with this fixture.
Q: Can I mount this laser sideways?
A: Yes! The AL-08 features a flexible chassis and mounting kit that supports upside-down, side-mounted, and front-mounted installations, making it incredibly easy to integrate into complex stage or club designs..
