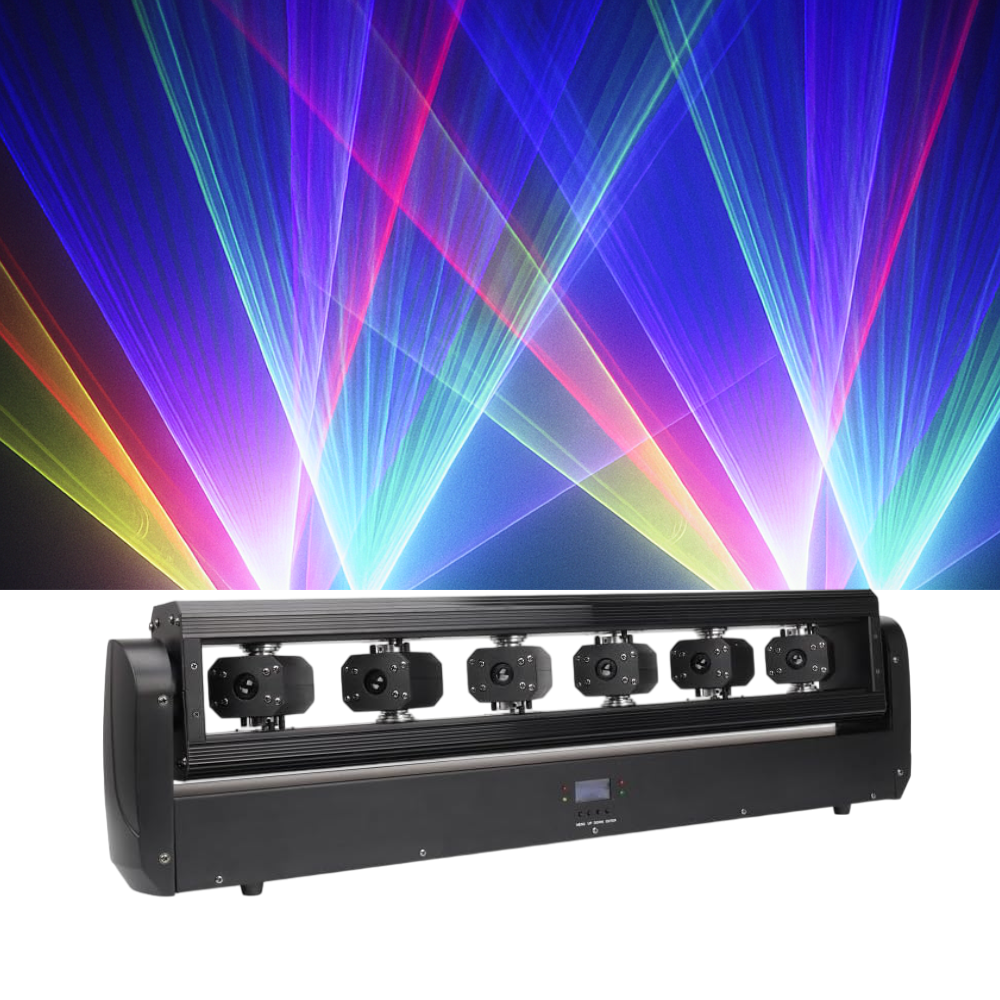

AL-06 6-Eyes Swing Laser Light
RGB 3IN1 ยท Beam Stage Effect ยท Flexible Moving ยท DMX & Multi-Control Modes.
The AL-06 6-Eyes Swing Laser Light delivers powerful RGB 3IN1 beam effects with flexible Y-axis and X-axis swing. Equipped with a bright semiconductor pump laser source and TTL modulation for vivid colors, it brings dynamic Skynet, flow line, and stroboscopic effects to bars, KTVs, dance halls, and events. It supports sound control, DMX512, auto, and master-slave modes, with multiple channels for versatile control. Compact, durable, and built for high stability, itโs your ideal laser for indoor venues wanting stunning light shows.
Key Benefits
- Dynamic 6-Eyes Matrix: Features 6 powerful laser outputs that can project rich, sweeping beam arrays across the entire room.
- Vivid Color Modulation: Utilizes TTL modulation with semiconductor pump lasers to ensure exceptionally bright, pure, and vivid RGB colors.
- Flexible Motorized Swing: Precision stepper motor scanning provides smooth 180ยฐ Y-axis movement and a dynamic X-axis swing for massive stage coverage.
- Mesmerizing Built-in Effects: Instantly project engaging “Skynet” laser webs, fluid flow lines, and intense water stroboscopic effects.
- Versatile Control Options: Seamless operation via DMX512 (11, 26, or 38 channel modes), Sound-Activated, Auto (Self-walking), and Master-Slave modes.
- Compact & Durable: Built for high stability and reliability, perfectly sized for easy rigging in clubs, bars, and hotel banquet halls.
Setup & Operation Guide
๐
๐
- Step 1: Securely mount the laser to your truss or ceiling using standard lighting clamps. Always attach a safety cable for overhead rigging.
- Step 2: Insert the safety key and ensure the interlock connector is in place to enable the laser output mechanism.
- Step 3: Connect the power cable to a reliable AC100V~230V power supply.
- Step 4: Use the digital menu to select your preferred mode: Auto or Sound for standalone operation, or DMX for integration into a lighting console.
- Step 5: Daisy-chain multiple AL-06 units using DMX cables to create a massive, synchronized multi-laser array across your stage.
Technical Specifications
| Rated Voltage / Power | AC100V~230V 50/60Hz / 500W(RGB); 180W(RED) |
|---|---|
| Laser Light Source | Semiconductor Pump Laser with TTL Modulation |
| Laser Power | RGB: 500mW (R200mW / G100mW / B200mW) or RED: 500mW |
| Laser System & Scan | Precision stepper motor scanning; Y-axis 180ยฐ, X-axis swing |
| Control Mode / DMX CH | Sound, Auto (Self-walking), DMX512, Master-Slave / 11, 26, or 38 Channels |
| Laser Effects | Skynet beam, flow line, strobe, water strobe effect |
| Usage / Working Temp | Indoor Environments / -20โ to 45โ |
| Packing List | 1 x AL-06 6-Eyes Laser Light, 1 x Power Cable, 1 x Safety Key, 1 x Interlock Connector, 1 x User Manual |
๐ฌ Need bulk pricing or installation advice?
Chat with our technical team for expert advice on DMX integration, multi-fixture setups, and exclusive wholesale discounts for your venue.
Frequently Asked Questions
Q: Do your laser lights have a safety key?
A: Yes. For professional compliance, every laser unit we sell comes equipped with a dedicated safety key switch and a standard remote interlock connector to prevent unauthorized operation.
Q: How do I choose the right laser power for my venue?
A: As a general rule: 1โ6W is ideal for home parties and small events; 10W is perfect for bars and medium clubs; 20โ30W cuts through large concert stages; and 30โ100W is required for outdoor architectural displays. Contact us if you need help deciding!
Q: Do I need to buy Pangolin FB4 to use this laser?
A: No, FB4 is not required for standard stage effects. You can achieve fantastic sweeping and stroboscopic effects using the built-in Auto/Sound modes or standard DMX512. For highly advanced programming, an FB4 interface (optional) can be integrated. See Pangolin for more details.
Q: What is TTL Modulation?
A: TTL (Transistor-Transistor Logic) modulation allows the laser diode to switch on and off at extremely high speeds. This results in incredibly sharp, vivid, and pure color outputs without muddy fading, making your laser shows look crisp and professional.
