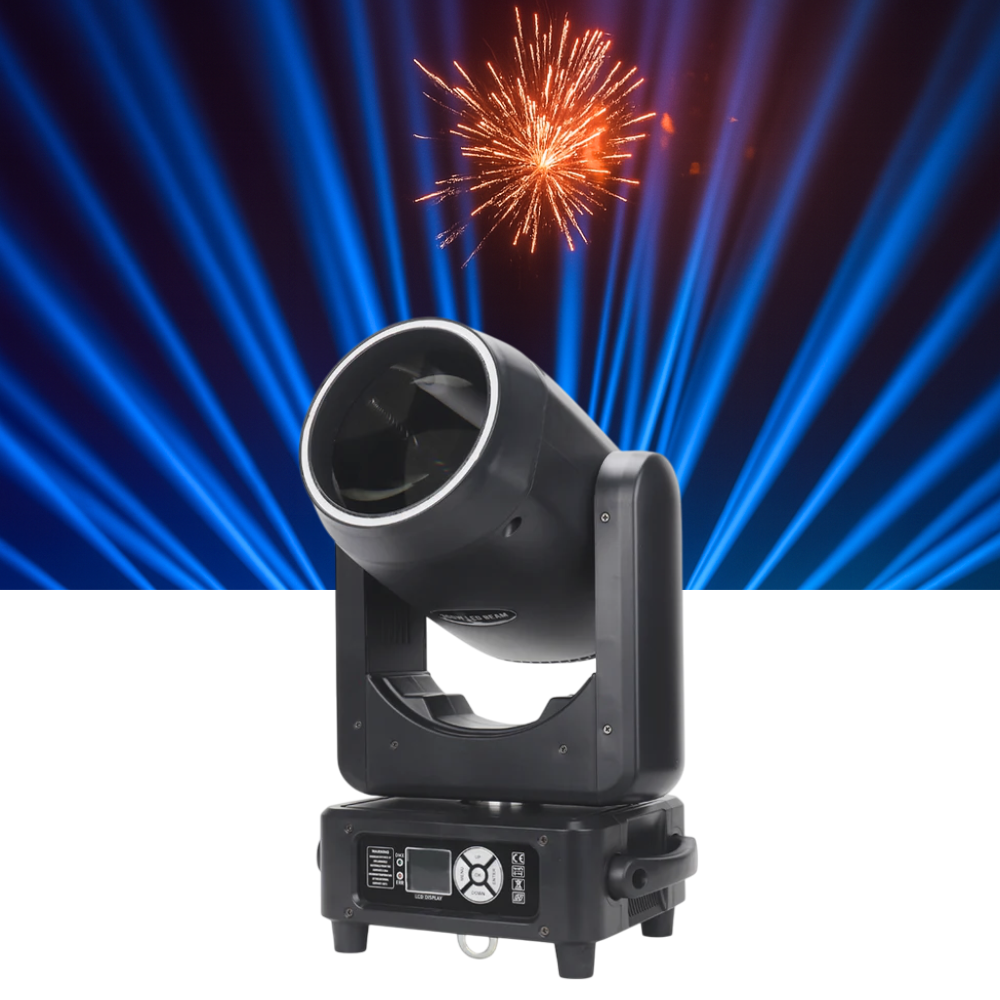

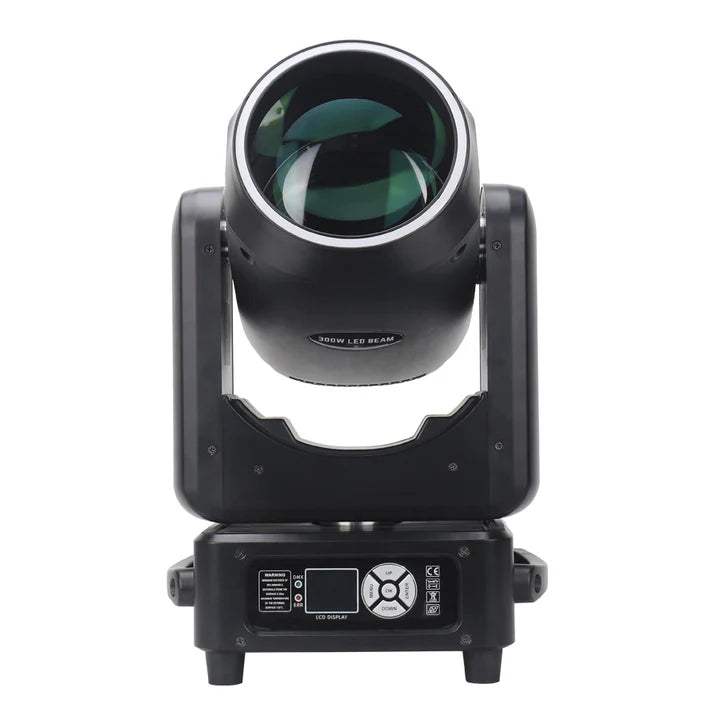

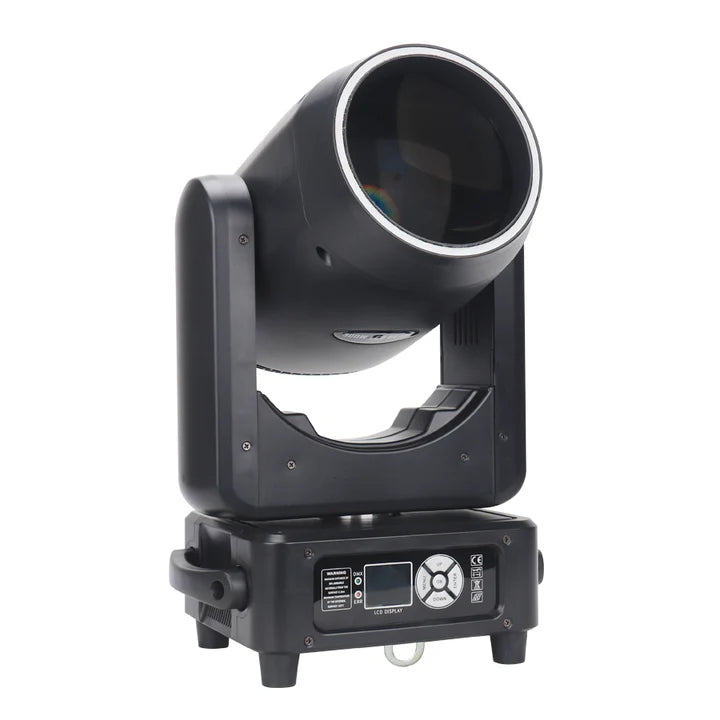

300W LED Moving Head Beam Light
Powerful 300W LED Engine · Motorized Zoom · Dual Prisms & Pixel Ring.
The 300W LED Moving Head is a professional-grade fixture designed for maximum impact and versatility. At its core is a powerful 300W white LED engine, producing an exceptionally bright and sharp beam. This is enhanced by a wide motorized zoom ranging from a tight 3.8° to a broad 45°. The creative possibilities are endless with a 14-color wheel, a 14-pattern gobo wheel, and a dual-prism system (8-facet + 16-facet). A unique feature is the stunning RGB pixel ring with 40 controllable LEDs, perfect for creating mesmerizing eye-candy effects. With full DMX, master-slave, and auto modes, this light is a perfect solution for concert stages, large clubs, and professional lighting designers.
Key Benefits
- High-Power Core: 300W white LED engine delivers an incredibly bright, powerful, and efficient beam.
- Motorized Zoom: Wide adjustable zoom changes smoothly from a sharp 3.8° beam to a broad 45° wash.
- Dual Rotatable Prisms: An 8-facet and a 16-facet prism that can be layered for complex, multi-beam aerial effects.
- Dynamic Visuals: Equipped with a 14-color wheel and a separate 14-pattern gobo wheel for endless combinations.
- Stunning Pixel Ring: Outer RGB Pixel Ring with 40 controllable 5050 LEDs for mesmerizing “eye-candy” visuals.
- Advanced Optics: Features motorized focus, a linear frost filter, and ultra-smooth 16-bit Pan/Tilt resolution.
- Professional Control: Full command via DMX512 (24CH), alongside Master-Slave, Sound, and Automatic modes.
Setup & Operation Guide
🌟
⚠️
- Step 1: Unpack the fixture and securely mount it to your truss system using the included brackets and clamps. Attach a safety cable.
- Step 2: Connect the power cable to a reliable AC 100-240V power source.

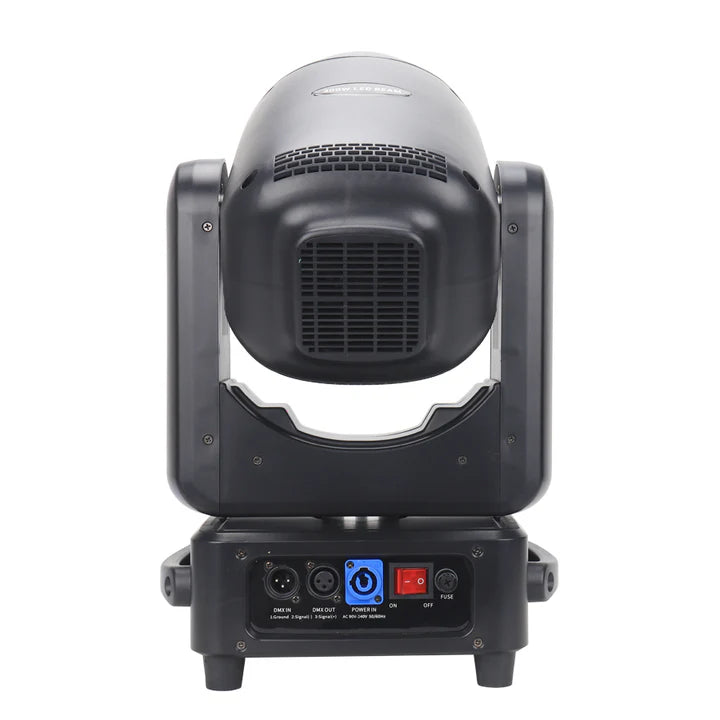

- Step 3: Connect a DMX cable from your lighting console to the DMX IN port. Daisy-chain to other fixtures using the DMX OUT port.
- Step 4: Use the LCD display to assign the starting DMX address and select the 24-channel control mode.
- Step 5: For standalone operation, navigate the menu to select ‘Auto’ or ‘Sound Control’ modes.
Technical Specifications
| Voltage / Total Power | AC100-240V, 50/60Hz / 450W |
|---|---|
| Light Sources | Main: 300W White LED Module | Ring: 40 x 5050 RGB LEDs |
| Beam Angle / Zoom | 3.8° – 45° (Motorized Linear Zoom) |
| Control Mode / DMX CH | DMX512, Master-Slave, Auto, Sound Control / 24 Channels |
| Color & Gobo Wheels | 14 Colors + White / 14 Patterns + White |
| Prism System | 8-facet Prism + 16-facet Prism (Rotatable & Overlayable) |
| Movement | Pan: 540°, Tilt: 270° (16-bit high resolution) |
| Net Weight | 12.4 kg |

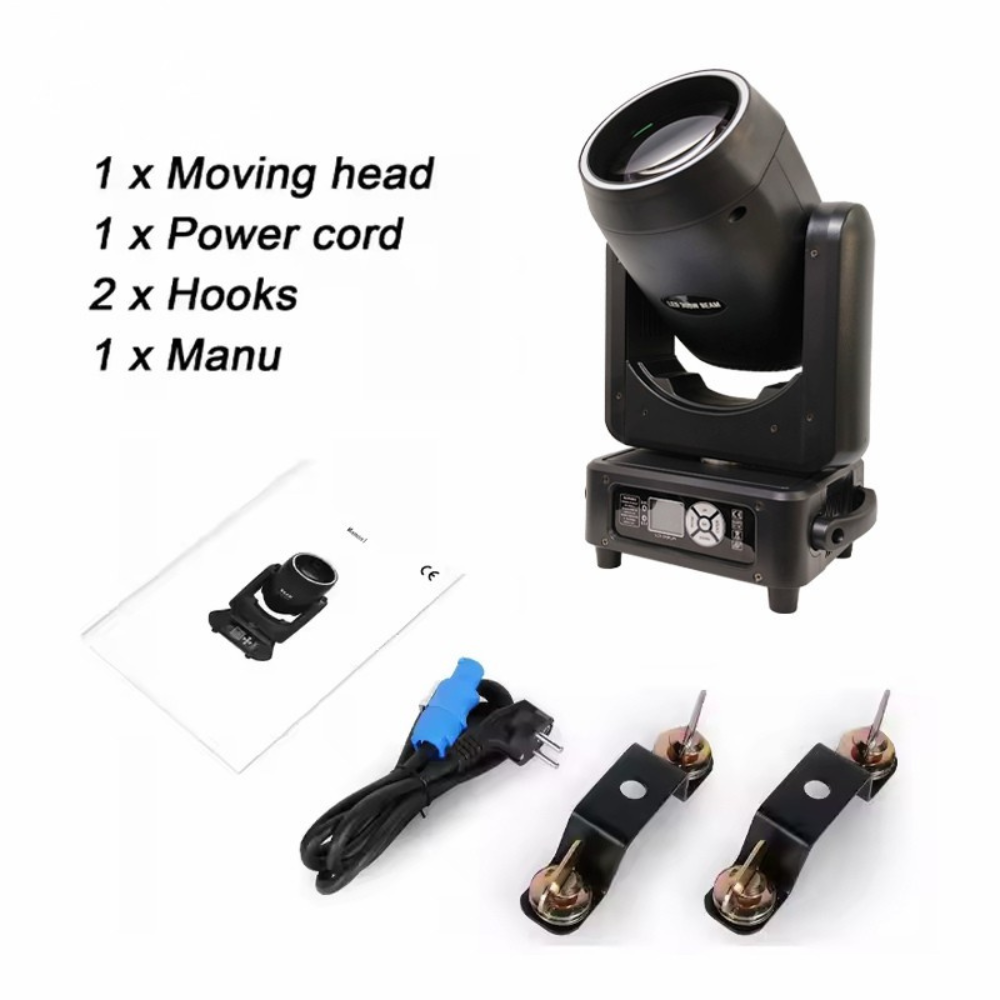

| Packing List | 1 x 300W LED Moving Head Light, 1 x Power Cable, 1 x DMX Cable, 2 x Mounting Brackets, 1 x User Manual |
💬 Need help with advanced DMX programming or an event quote?
Chat with our technical experts for custom flight case options, DMX troubleshooting, and bulk pricing for your stage.
Frequently Asked Questions
Q: What is the RGB Pixel Ring?
A: It’s an outer ring of 40 RGB LEDs surrounding the main lens. You can control these via DMX to create chase, macro, and color-mixing “eye-candy” effects independently of the main 300W beam.
Q: Can this fixture act as a wash light?
A: Yes! Thanks to the motorized zoom (adjusting up to a wide 45°) and the linear frost filter, you can soften and widen the beam to create a smooth, even wash effect for stage flooding.
Q: Can the two prisms be used at the same time?
A: Yes, the 8-facet and 16-facet prisms can be overlaid (layered) and rotated to multiply the gobo patterns across the room, allowing for incredibly complex and striking aerial looks.
Q: Is it suitable for quiet environments like theaters?
A: This is a high-power 450W fixture that relies on active cooling fans to protect the LED engine. While efficient, it produces some ambient fan noise, making it best suited for concerts, clubs, and live events with background audio.
