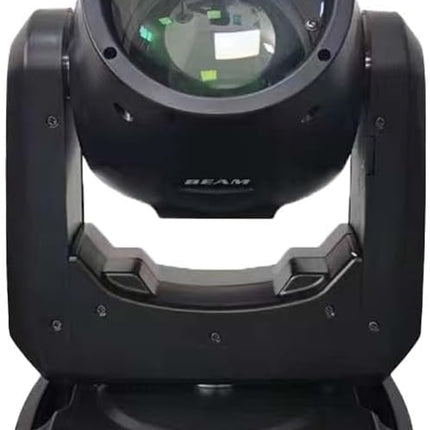

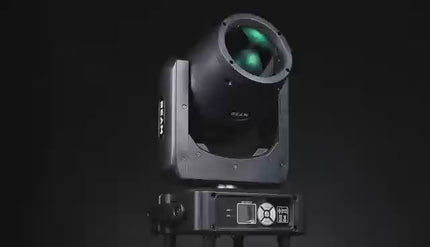

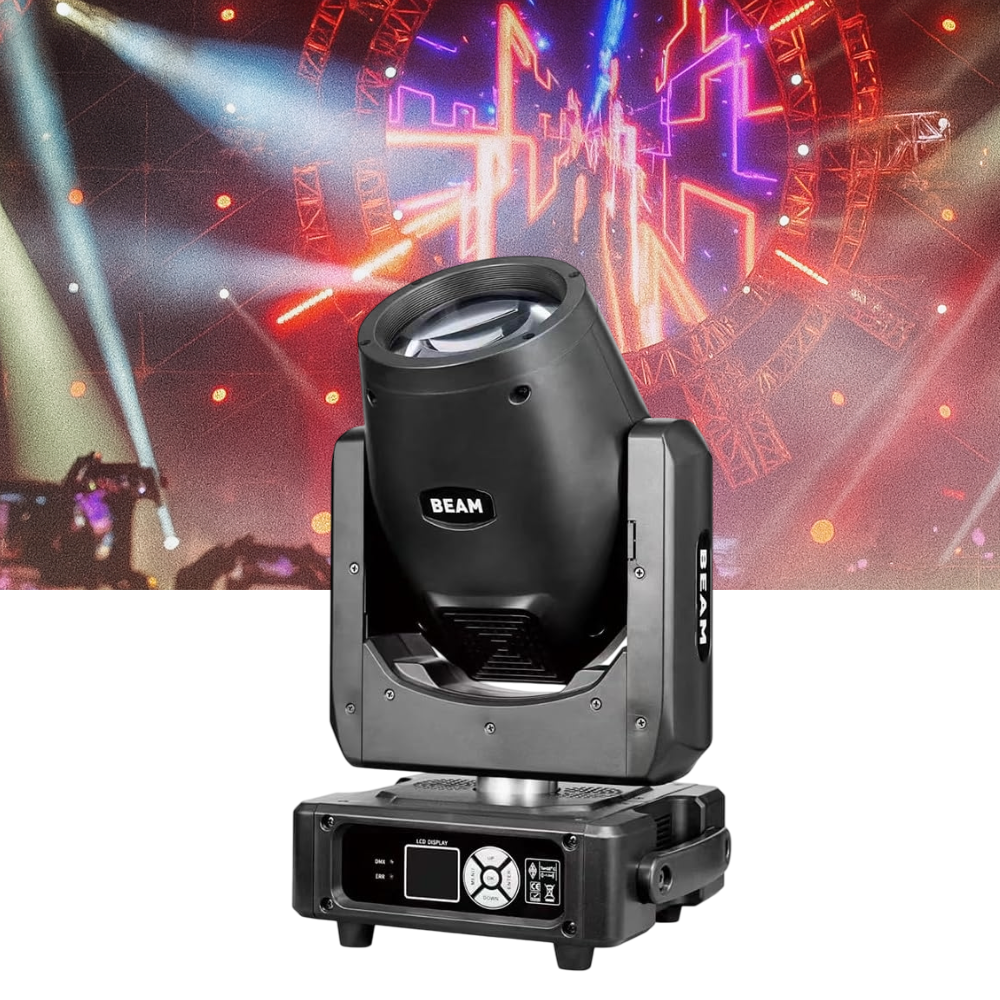

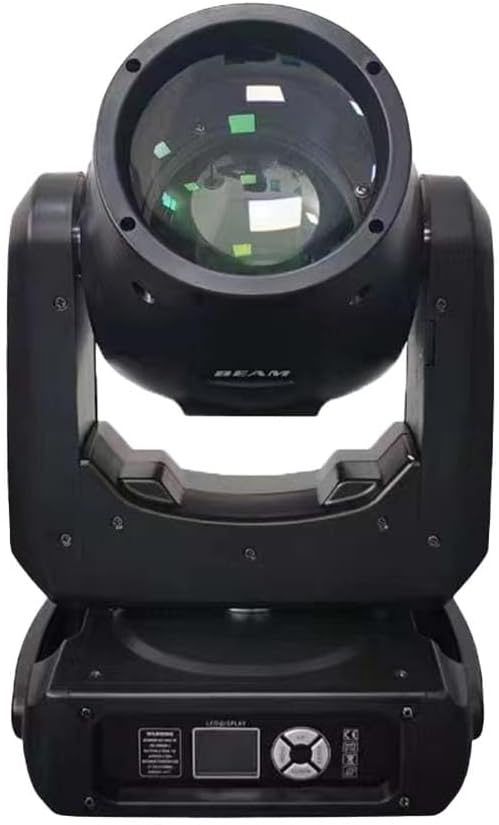

230W Mini Moving Head Beam Light
Intense 230W 7R Lamp ยท 14 Colors & 17 Gobos ยท Dual 8+16 Facet Prism.

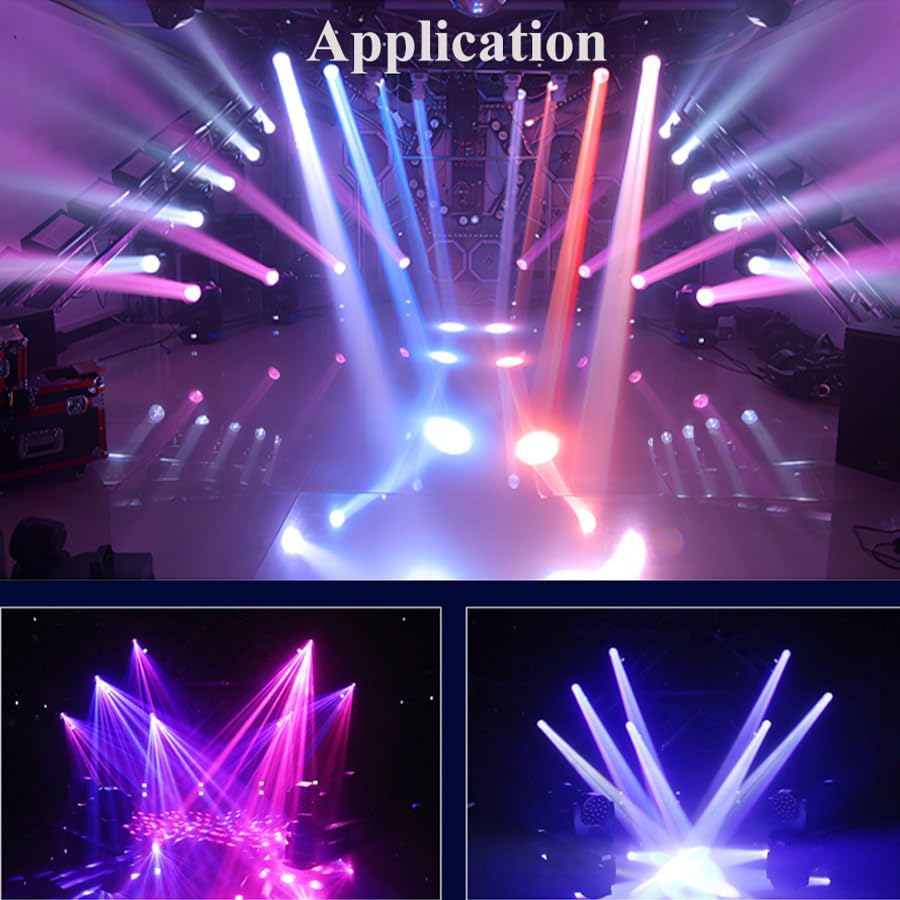

Dominate the stage with the 230W Mini Moving Head, a compact fixture that packs a massive punch. Featuring a full-power 230W 7R lamp, it projects an incredibly bright, sharp beam with an 8500K color temperature, making it ideal for concerts, DJ shows, clubs, and large events. Explore endless creative possibilities with its 14-color wheel, 17-gobo wheel, and a phenomenal dual-prism system (8+16 facet) for creating complex, multi-beam aerial displays. With pro features like electronic focus, linear frost, and multiple control modes, this light is an essential tool for creating high-impact, professional-grade lighting shows.
Key Benefits

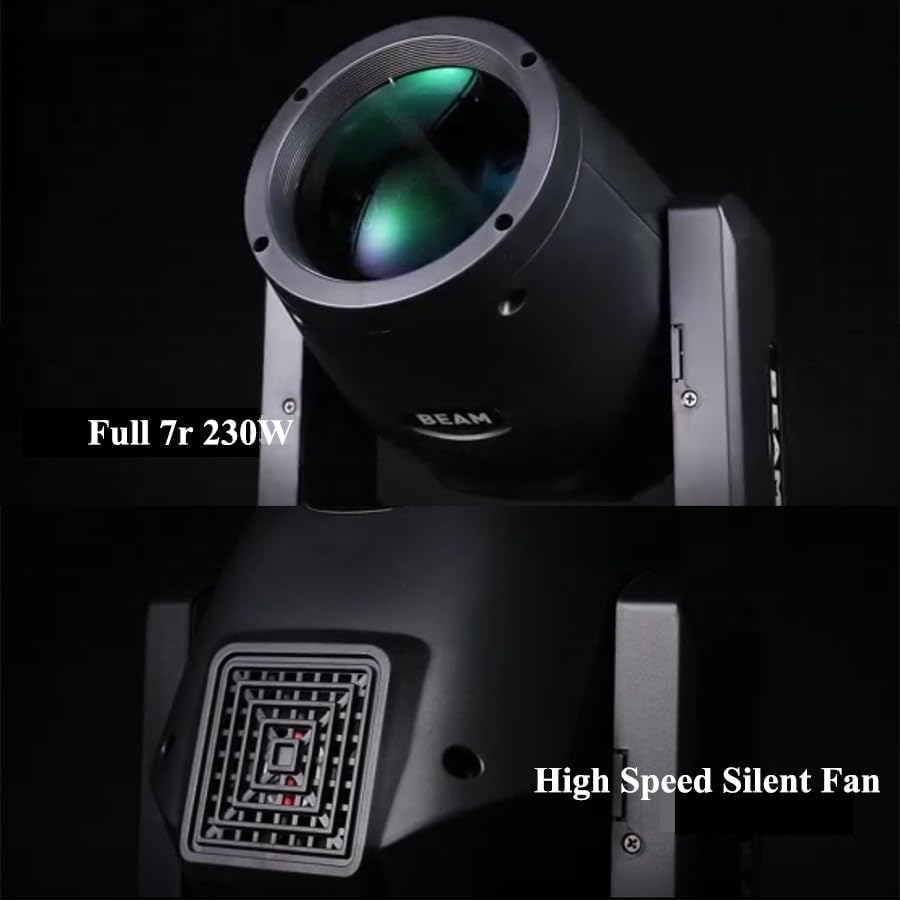

- Razor-Sharp Optics: Powerful 230W 7R discharge lamp delivers a high-intensity, piercing beam at 8500K.

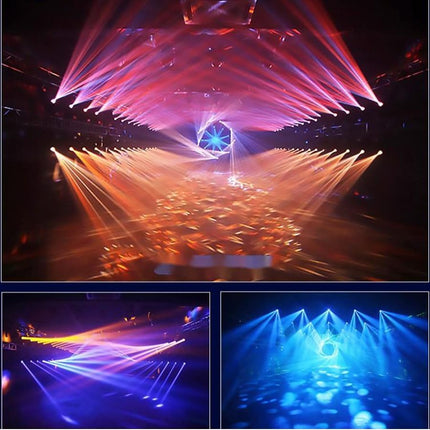

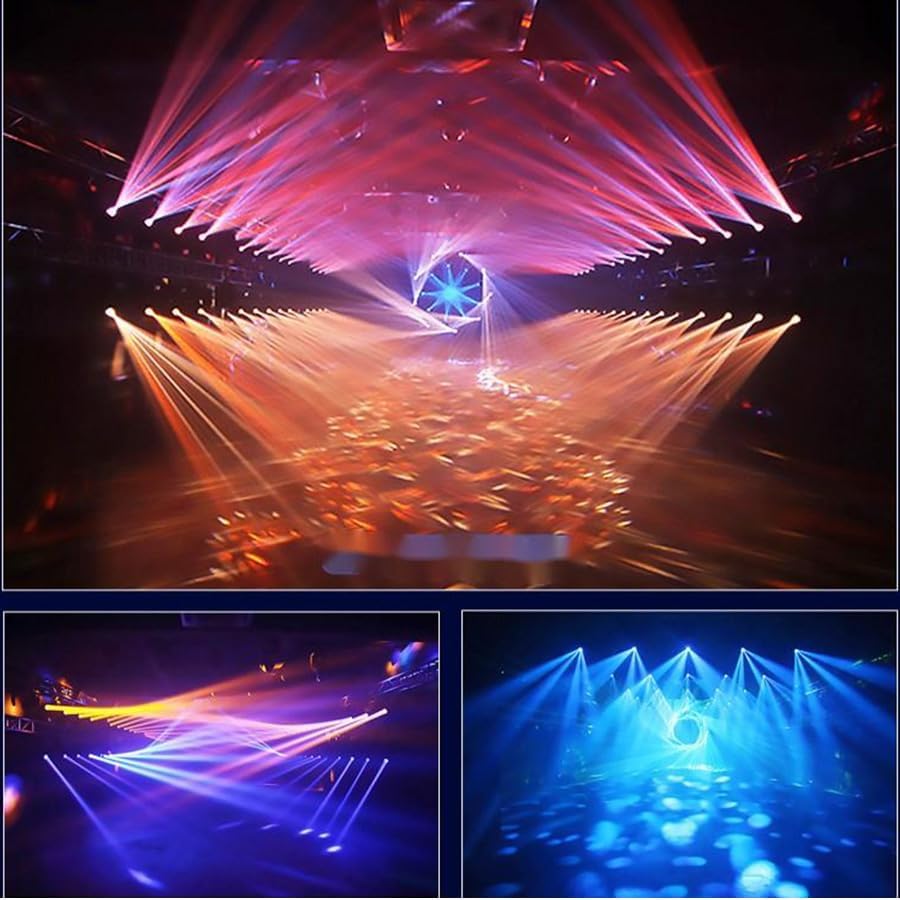

- Dual Rotating Prisms: Includes an 8-facet and 16-facet prism that can be used for stunning, wide-spread aerial effects.
- Rich Color Palette: Fixed color wheel featuring 13 vibrant complementary colors plus open white.
- Extensive Pattern Library: Static gobo wheel loaded with 17 distinct HD gobos plus open white.
- Advanced Frost Effect: Built-in 0-100% linear frost/atomization instantly turns your sharp beam into a smooth wash.
- Professional Control: Full command via DMX512 (15CH), alongside automatic programs and Master-Slave linking.
- Dynamic Performance: High-speed strobe effect, electronic focus, and smooth 0-100% mechanical dimming.
Setup & Operation Guide
๐
โ ๏ธ
- Step 1: Unpack and securely attach the included mounting hooks to your truss system. Always secure the fixture with a certified safety cable.
- Step 2: Connect the power cable to an appropriate AC110-240V power source.
- Step 3: Connect a DMX cable from your lighting console to the DMX IN port, and daisy-chain to other units using DMX OUT.
- Step 4: Use the digital display to set the DMX address and select the 15-channel control mode, or choose an internal Auto program.
- Step 5: After your event, turn off the lamp via your DMX controller and allow the cooling fans to run for at least 5-10 minutes to safely cool the bulb before disconnecting main power.
Technical Specifications
| Voltage / Power Consumption | AC110-240V, 50/60Hz / 450W |
|---|---|
| Light Source / Color Temp | 230W 7R Lamp / 8500K |
| Control Mode / DMX CH | DMX512, Auto Program, Master-Slave / 15 Channels |
| Color & Gobo Wheels | 13 Colors + White / 17 Gobos + White |
| Prism / Optics | 8-facet + 16-facet Rotating Prism / Electronic Focus & Linear Frost |
| Movement | Pan: 540ยฐ, Tilt: 270ยฐ (16-bit Fine Resolution) |
| Material / Gross Weight | Metal, Glass, Plastic / 12.3 kg (27.1 lbs) |
| Packing List | 1 x 230W Beam Moving Head Light, 1 x Power Cable, 1 x DMX Cable, 2 x Mounting Hooks, 1 x User Manual |
๐ฌ Need a custom quote for a full lighting rig?
Chat with our technical team for custom package deals, bulk pricing, and expert DMX setup advice.
Frequently Asked Questions
Q: What does “7R” mean?
A: 7R refers to the class of the high-intensity discharge lamp used inside the fixture. It is renowned in the professional lighting industry for producing an incredibly bright, highly concentrated, and razor-sharp beam of light.
Q: Can this beam light act as a wash light?
A: Yes! It features a 0-100% linear frost filter (atomization). By engaging the frost channel via DMX, you can instantly soften the hard edge of the beam, turning it into a wide, smooth wash effect.
Q: Can I use both prisms at the same time?
A: Yes, the dual 8-facet and 16-facet prisms can be engaged together to create stunning, multi-layered beam multiplications that look spectacular in the air, especially when paired with fog or haze.
Q: Do I need a DMX controller to use this?
A: No, while a DMX controller (using the 15-channel mode) gives you complete creative freedom, you can also set the light to run its built-in Auto Programs or link multiple units together in Master-Slave mode for a synchronized show without a console.
