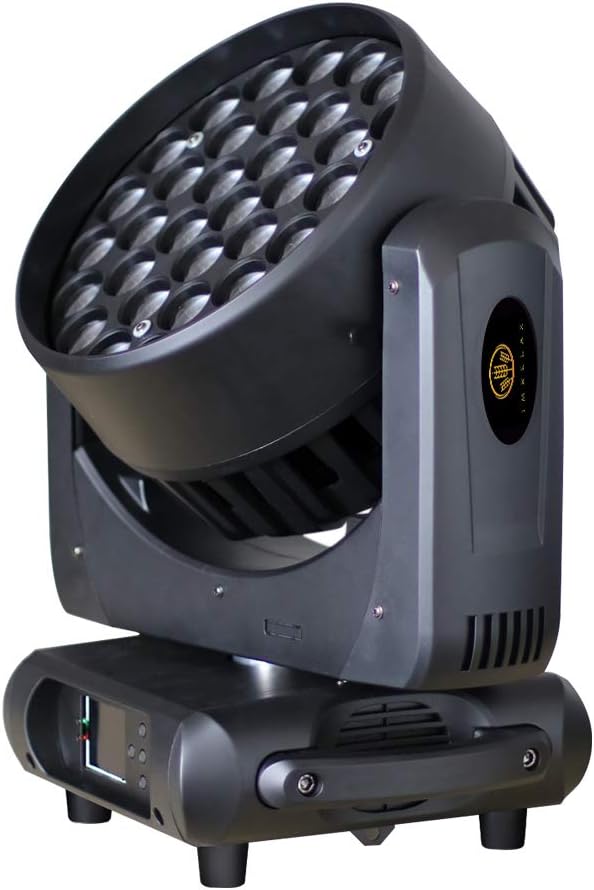

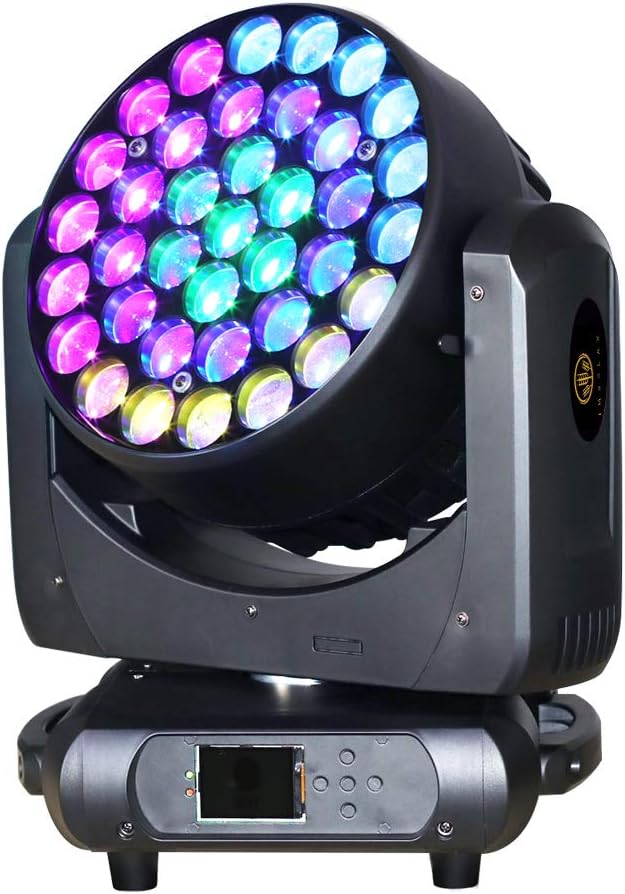

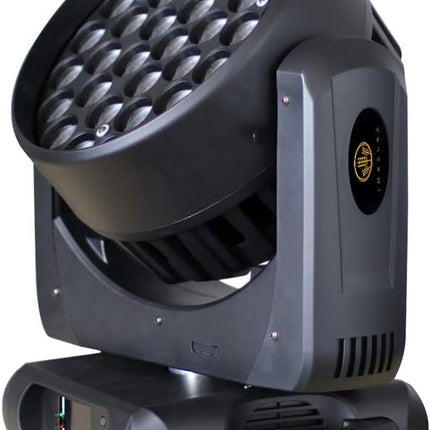

15W x 37 Moving Head Wash Light (Zoom)
37x15W Osram LEDs ยท Powerful Beam, Wash & Zoom ยท Individual Pixel Control.

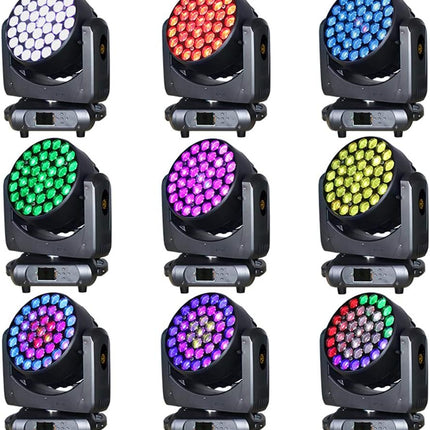

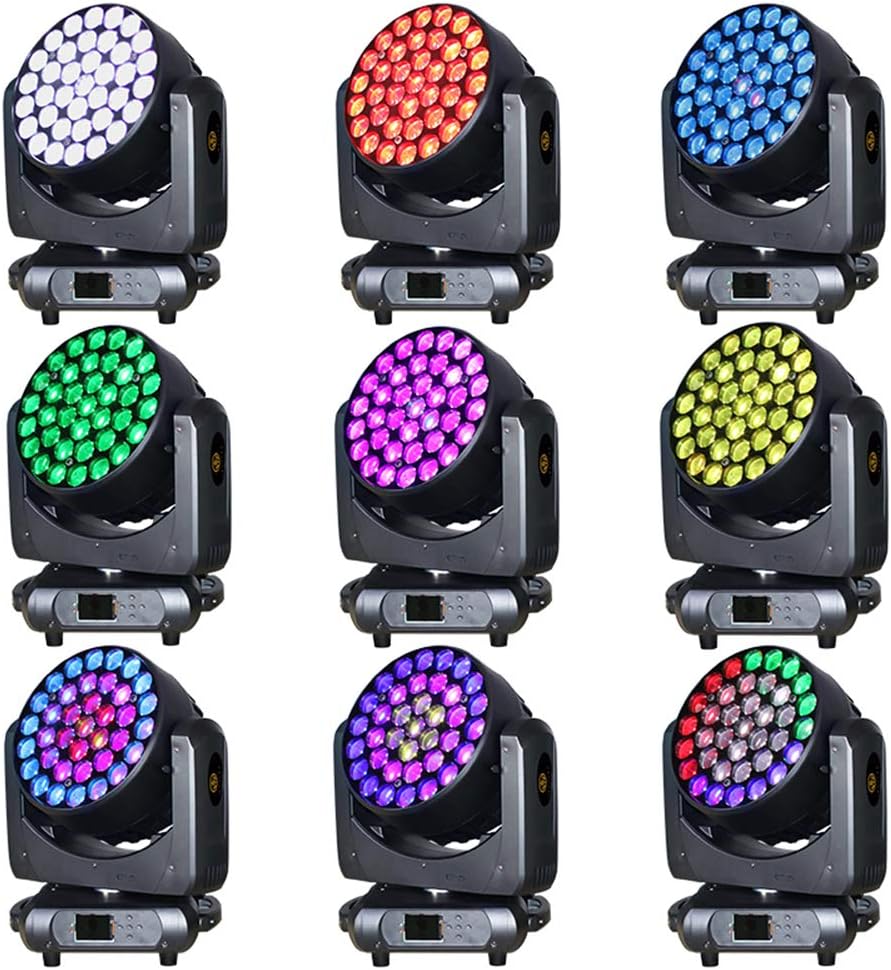

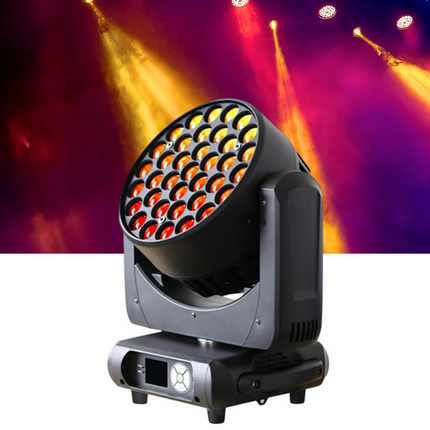

The 15W x 37 is a professional-grade LED moving head that combines high-intensity beam, smooth wash, and linear zoom effects into one versatile fixture. Driven by 37 premium 15W Osram RGBW LEDs, it delivers breathtaking color mixing and uniform light diffusion. With its advanced 360-degree rotating base and full pixel-mapping capabilities, this fixture is a top-tier choice for concert stages, large clubs, festivals, and professional event productions.
Key Benefits

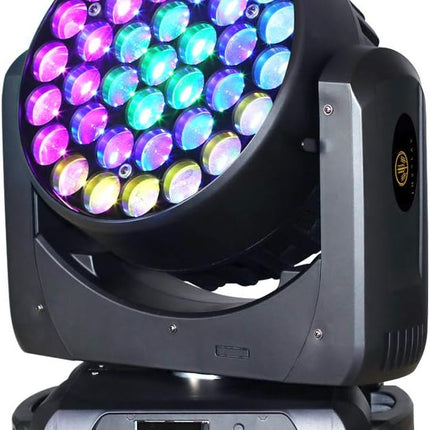

- Individual Pixel Control: Each of the 37 LEDs can be addressed independently, allowing for complex matrix effects and creative animations.
- Genuine Osram Performance: Equipped with original 15W 4-in-1 Osram LEDs for superior color consistency and massive brightness.
- Linear Motorized Zoom: Seamlessly transition from a sharp 10ยฐ aerial beam to a wide 60ยฐ stage wash.
- Pro-Grade Motion: Fast and precise 540ยฐ Pan and 270ยฐ Tilt with 16-bit resolution for smooth, jitter-free positioning.
- Advanced Control: Full support for DMX512 (up to 32CH), RDM, Sound-Activated, and Master-Slave synchronization.

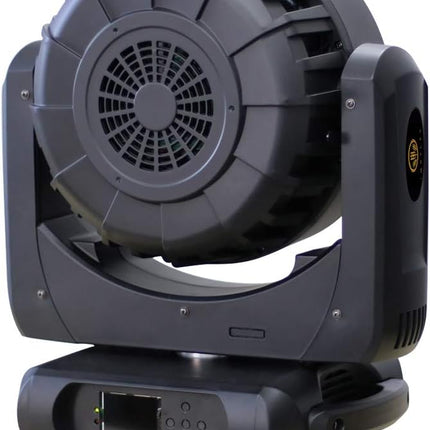

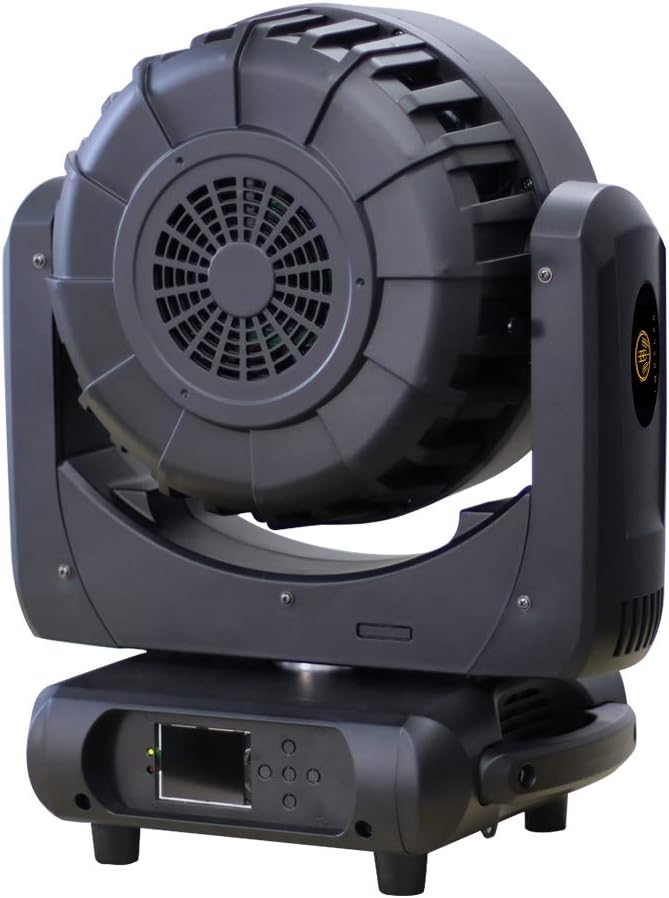

- Built for Reliability: High-efficiency cooling system and durable housing designed for professional touring and installations.
Setup & Maintenance Guide
๐ก
โ ๏ธ
- Rigging: Install on a stable truss or surface away from vibrations. When hanging, always use a safety cable.
- Connection: Connect the power cable to a standard AC100-240V outlet. We provide plugs for the UK, AU, EU, and USAโplease specify your preference.
- Channel Selection: Use the digital display to choose between 12CH, 20CH, or 32CH (Pixel mode) for DMX control.
- Stand-Alone: For quick setups, activate Sound-Activated or Auto-Run modes directly from the menu.
- Maintenance: Keep the unit dry and clear of dust to maintain cooling efficiency and beam clarity.
Technical Specifications
| Voltage / Power Supply | AC100-240V, 50/60Hz / 550W Total |
|---|---|
| Light Source & Life | 37 x 15W 4-in-1 RGBW Original Osram LEDs / 50,000 Hours |
| Linear Zoom Range | 10ยฐ to 60ยฐ Adjustable Focus |
| Control Modes / DMX CH | DMX512, RDM, Master-Slave, Sound Active, Auto / 12, 20, or 32 Channels |
| Movement Range | Pan: 540ยฐ / Tilt: 270ยฐ (16-bit high resolution) |
| Dimming & Strobe | 0-100% Linear Dimming / 0-20Hz High-Speed Strobe |
| Dimensions & Weight | 49 x 46 x 36 cm / 18 kg |
| Plug Options | UK, AU, EU, and USA Plugs Available (Selected by country or request) |
๐ฌ Need help with DMX programming or setup?
Chat with our lighting experts for project planning, specialized pixel-mapping advice, and customized bulk quotes.
Frequently Asked Questions
Q: Will the light fixture work without a DMX console?
A: Yes! In addition to DMX mode, the unit features Sound-Activated, Auto-Run, and Master-Slave modes. For venues without a console, the music-control mode provides a high-quality automated show.
Q: How do you handle warranty and technical support?
A: We offer lifetime free technical consultation. During the warranty period, if a component fails, our team (responding within 1 hour) will guide you through identification via photos/video and send free replacement parts (customer pays freight only).
Q: What is pixel-mapping and why is it useful on this light?

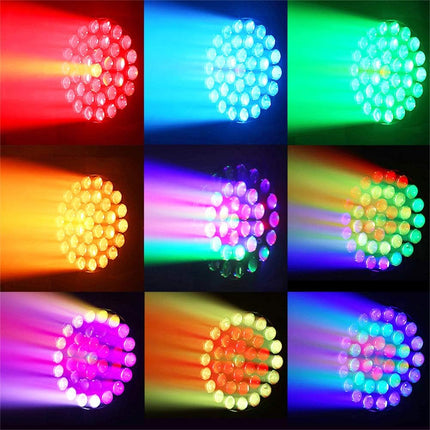

A: Unlike basic wash lights, each of the 37 LEDs can be controlled independently. This allows you to create sweeping “pixel-chase” patterns, text-like shapes, and intricate color gradients that add immense depth to your light show.
Q: Is this light suitable for quiet environments?
A: This is a high-power 550W professional unit that requires active fan cooling. While efficient, it is designed primarily for concerts, festivals, and loud entertainment venues where background noise is present.
