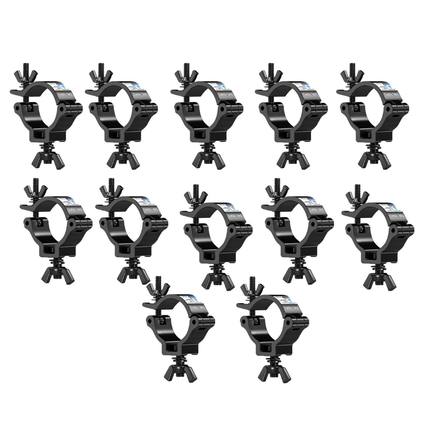

ACS Aluminum Alloy Stage Light Clamp (12-Pack)
100KG Load Capacity ยท TUV Rheinland Certified ยท Fits 48-52mm Pipe.

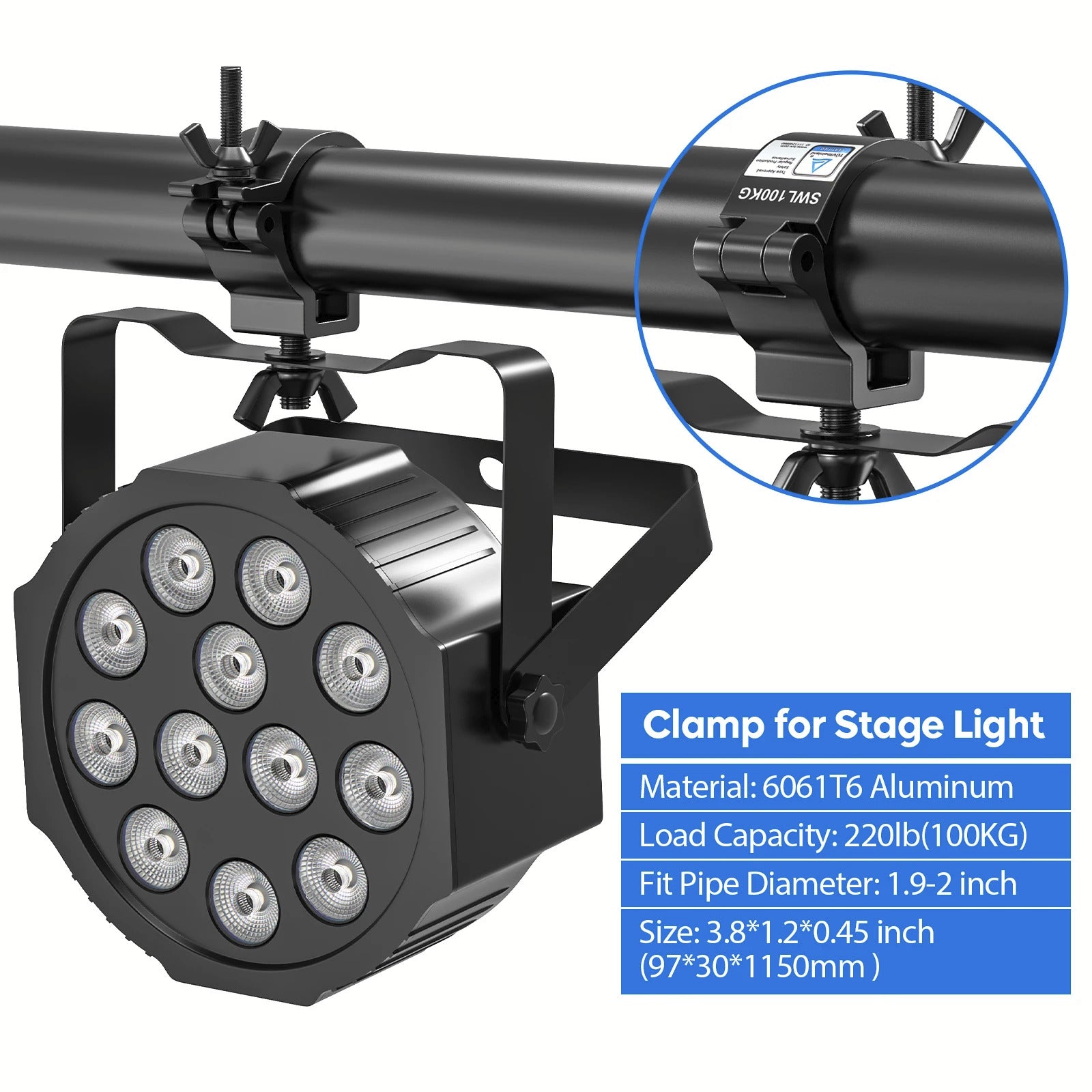

Secure your professional lighting equipment with confidence using the ACS Aluminum Alloy Stage Light Clamp. Engineered from premium 6061T6 aluminum alloy, these heavy-duty O-Clamps are designed to withstand the rigors of touring and stage production. With a TUV certification and a massive 220lb (100kg) load capacity, they provide a rock-solid mounting solution for moving heads, par cans, and spotlights. The precision-machined design ensures a perfect fit for standard 2-inch truss pipes, while the anodized black finish offers superior corrosion resistance and a sleek look for any stage setup.
Key Benefits

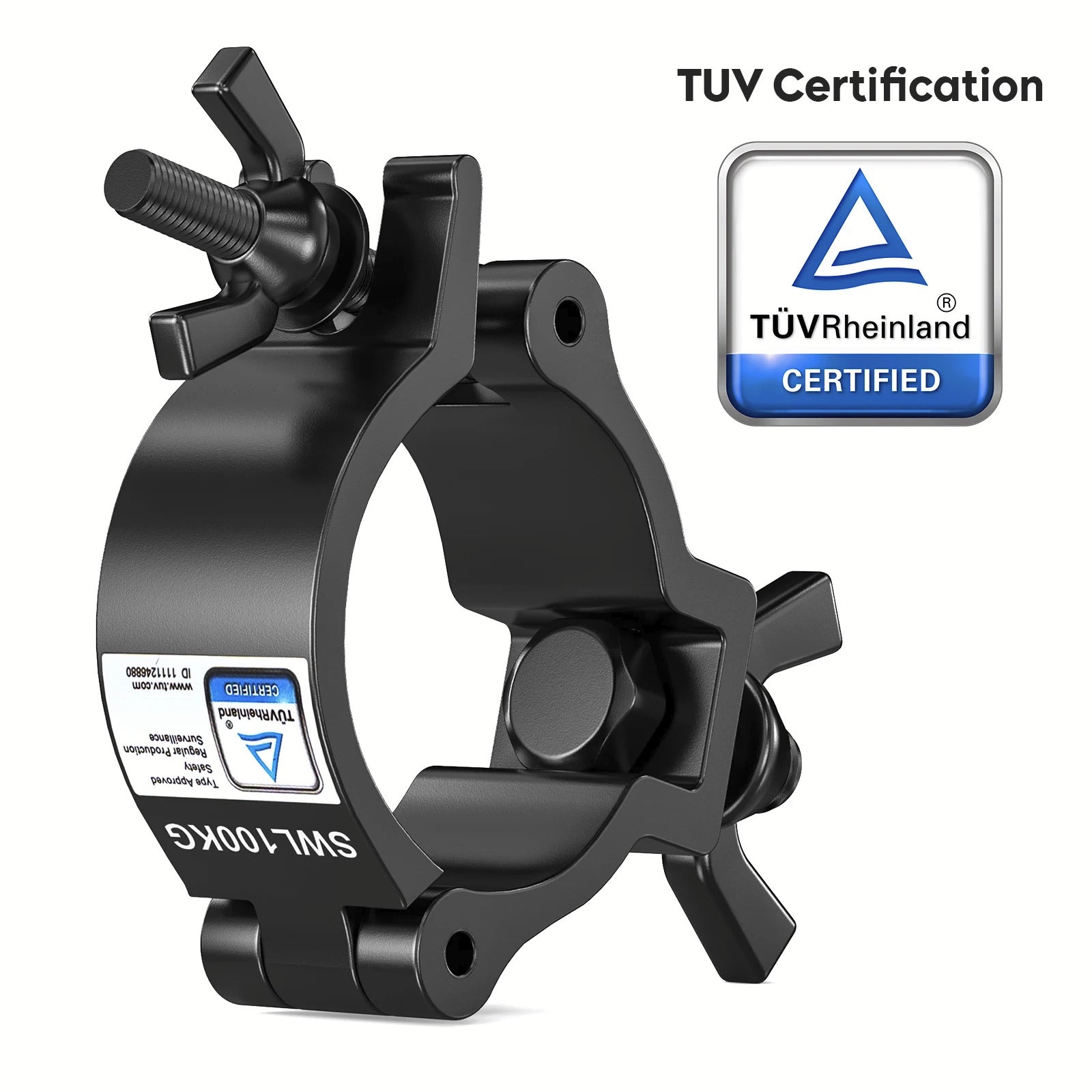

- TUV Rheinland Certified: Rest easy knowing your rig is safe. These clamps have passed rigorous safety testing and certification standards for professional use.

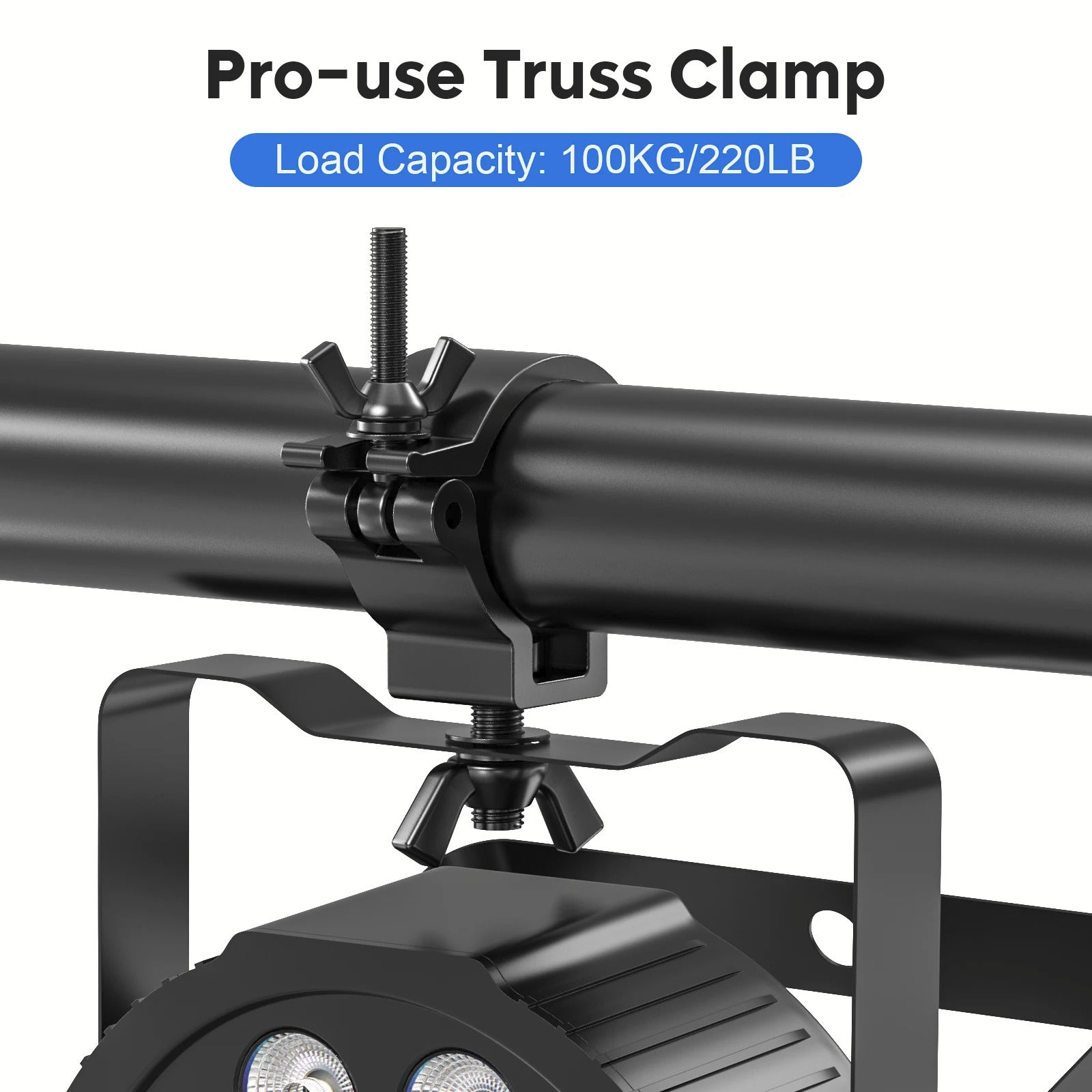

- Heavy-Duty 100KG Capacity: Despite their compact size, the robust construction supports a Safe Working Load (SWL) of up to 100kg (220 lbs) per clamp.
- Premium 6061T6 Aluminum: Made from high-grade aerospace aluminum alloy that is lightweight, sturdy, and highly resistant to rust and corrosion.

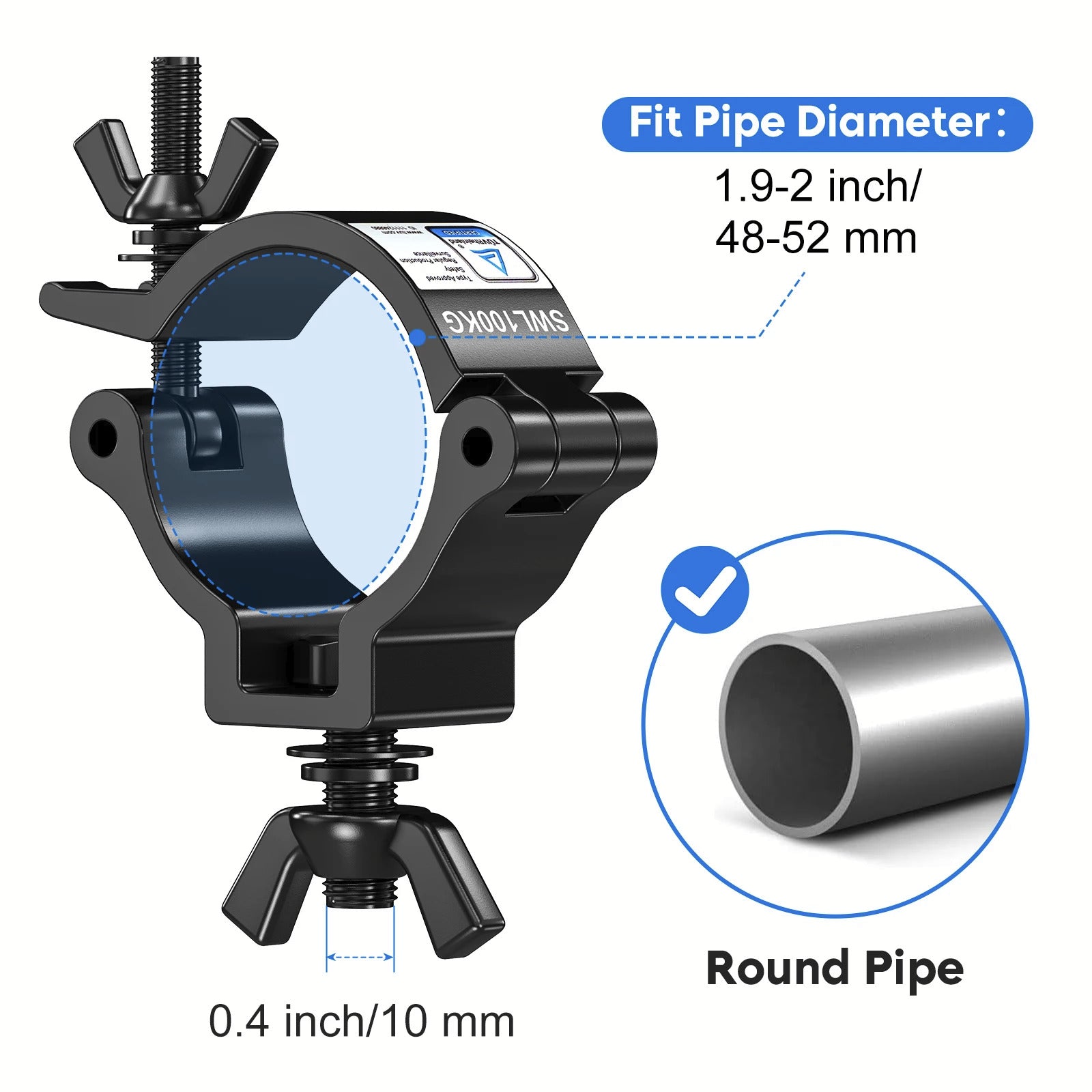

- Standard Truss Fit: Designed specifically for 48mm-52mm (1.9 – 2 inch) diameter pipes, making it compatible with the vast majority of F34 global truss systems.
- Tool-Free Installation: Features a large, adjustable butterfly wingnut for easy tightening by hand, speeding up your setup and teardown times.
- Secure Equipment Protection: The precision-molded design wraps fully around the pipe, preventing slippage and protecting your expensive lighting fixtures from falling.
Installation Instructions
๐ก๏ธ
- Step 1: Loosen the top wingnut to open the O-Clamp mouth.
- Step 2: Wrap the clamp around the truss or pipe (48-52mm diameter).
- Step 3: Tighten the top wingnut securely to lock the clamp onto the pipe.
- Step 4: Attach your lighting fixture bracket to the bottom 10mm bolt and tighten the nut firmly.

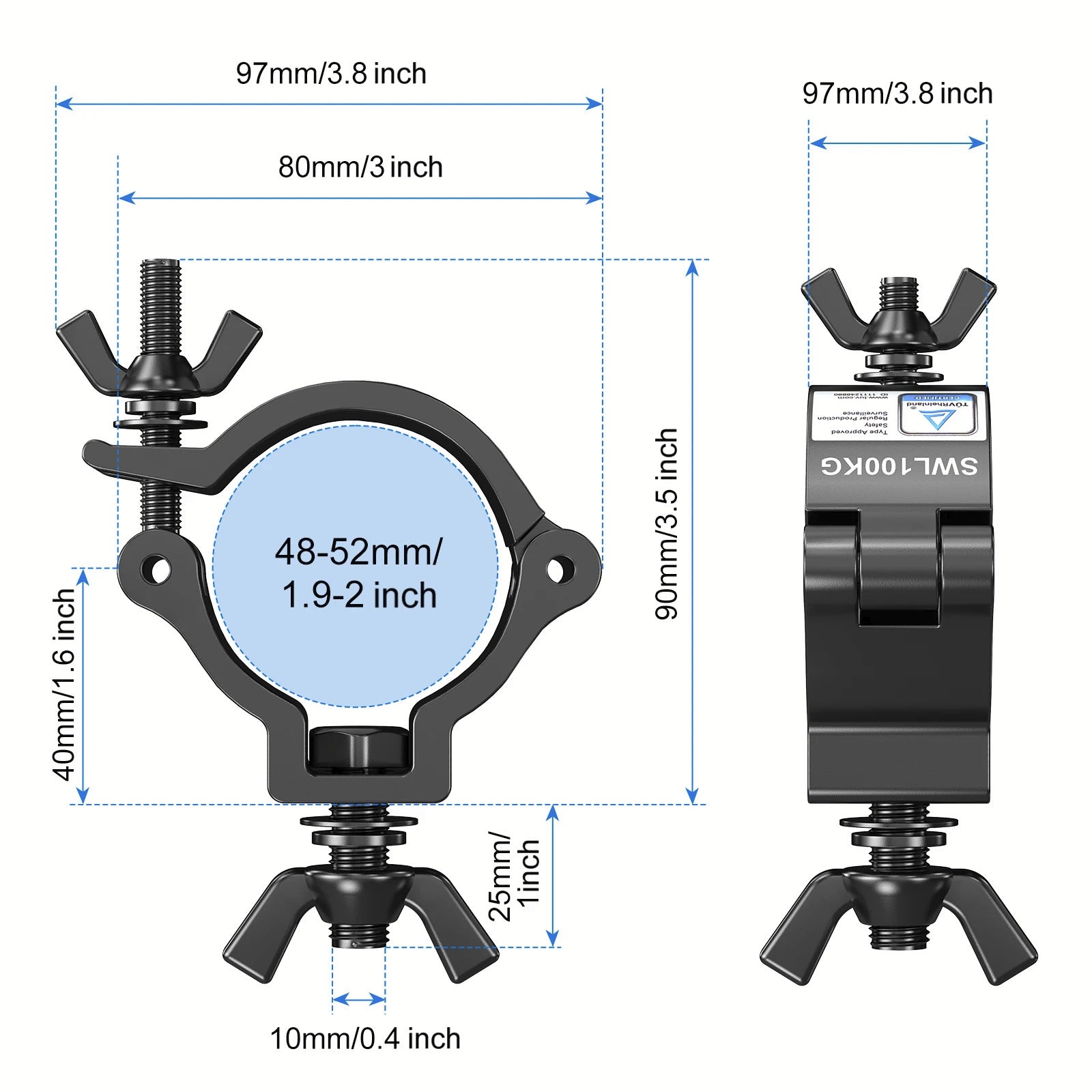

Technical Specifications
| Material | 6061T6 Aluminum Alloy |
|---|---|
| Color | Black |
| Fit Pipe Diameter | 48-52mm (1.9 – 2.0 inches) |
| Load Capacity (SWL) | 100 KG (220 lbs) |
| Clamp Width | 30 mm |
| Bolt Size | 10 mm Threaded Bolt |
| Certification | TUV Rheinland, CE |
| Style | Heavy Duty O-Clamp |
| Packing Quantity | 12 Pieces / Pack |
๐ฌ Need help determining if this fits your truss?
Our expert team is here to provide guidance on stage rigging and hardware.
Frequently Asked Questions
Q: Will these clamps fit my truss?
A: These clamps are designed for pipes with a diameter between 48mm and 52mm (approx. 2 inches). This is the standard size for most professional Global Truss (F34) and similar heavy-duty stage truss systems.
Q: What is the maximum weight I can hang?
A: The Safe Working Load (SWL) is 100KG (220 lbs). This is sufficient for most moving head lights, large par cans, and speakers. Please ensure your truss structure itself can also support the total weight.
Q: Are these clamps rust-proof?
A: Yes. They are made from 6061T6 Aluminum Alloy which is naturally corrosion-resistant, and they are finished with a black coating for extra durability, making them suitable for both indoor and outdoor events.
Q: What size bolt is included for the light?
A: Each clamp comes with a 10mm threaded bolt to attach to your lighting fixture’s bracket. This is a standard size that fits most professional stage lighting equipment.
