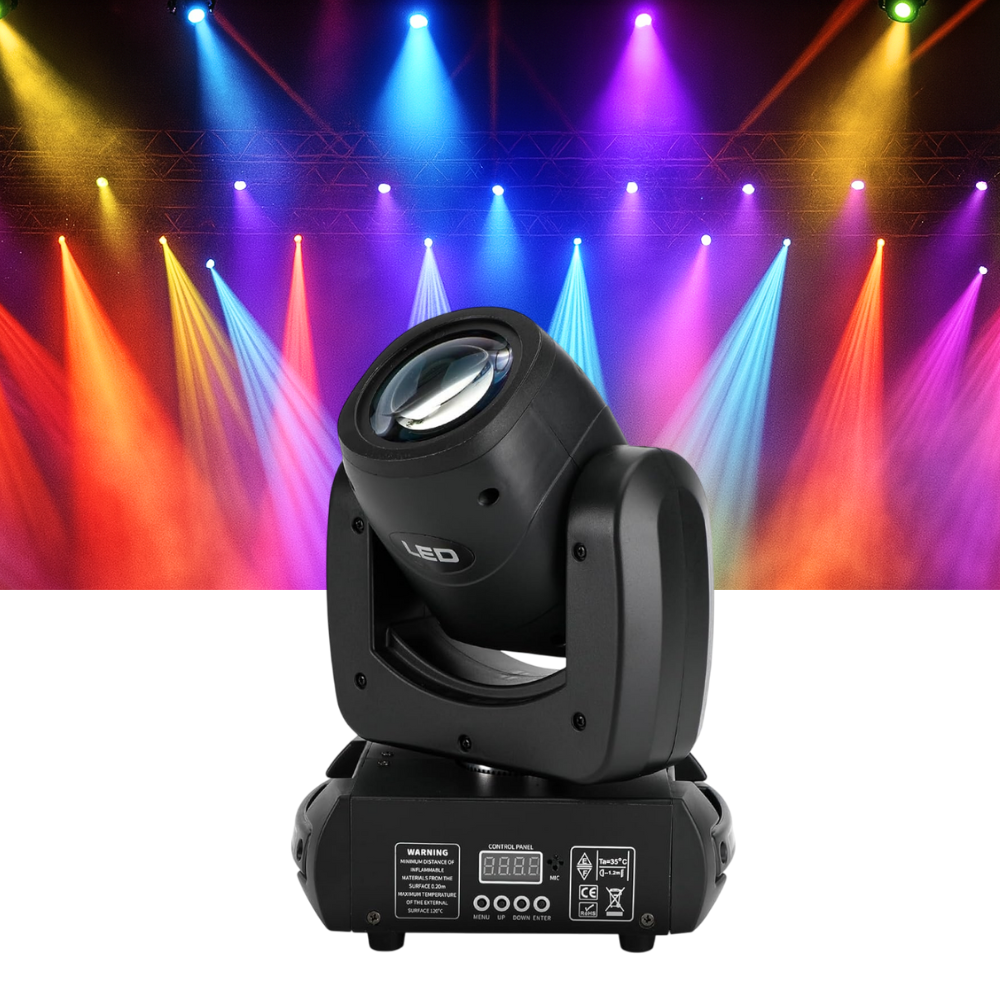

100W 8-Prism Moving Head Beam Light

Bright 100W LED · 8-Facet Prism Effect · DMX & Sound-Activated.

Elevate any event with the 100W Moving Head Beam Light. Engineered for versatility, this compact yet powerful fixture is perfect for DJs, KTV, clubs, weddings, and parties. It features a potent 100W white LED that produces a sharp, high-brightness beam, enhanced by a dynamic pattern wheel and a stunning 8-facet rotating prism. Built from durable, lightweight aluminum with an integrated cooling fan, this light is designed for reliable, long-term performance. Its wide irradiation area and multiple control modes make it the ultimate tool for creating a vibrant visual feast.

Key Benefits

Ultra-Bright Core: Powerful 100W white LED delivers a super-bright, sharp beam that cuts through ambient light and fog.

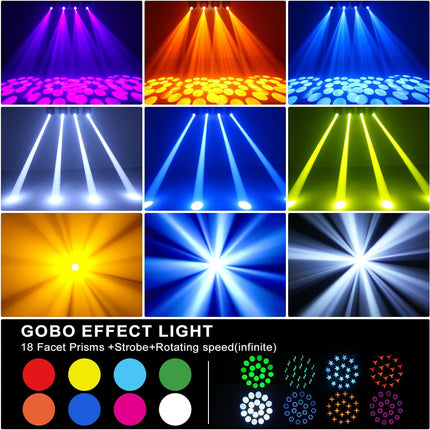

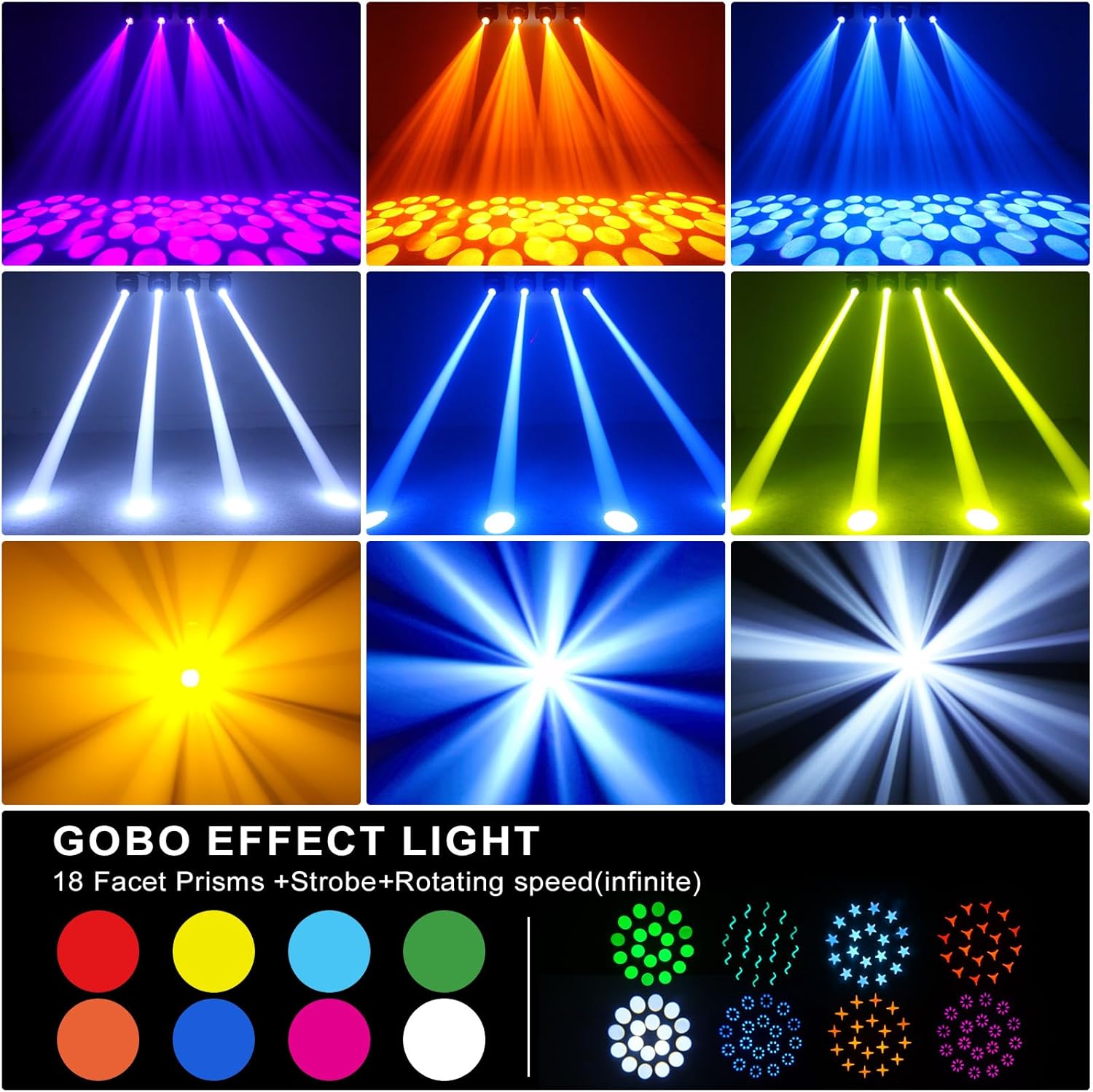

Mesmerizing Aerials: Dynamic 8-facet prism splits the main beam into eight rotating segments for incredible room-filling effects.
Versatile Control: Seamless operation via DMX512 (12CH), Sound-Activated, Auto, and Master/Slave modes.
High-Energy Visuals: High-speed strobe effect (up to 25 flashes per second) and smooth 0-100% linear dimming.

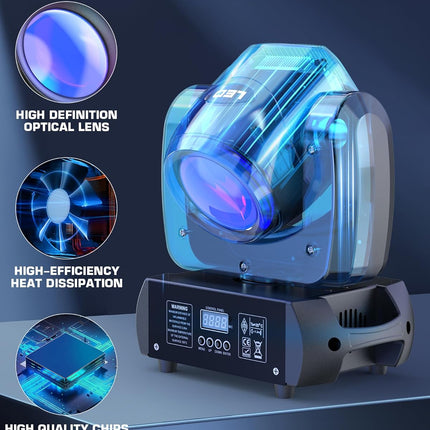

Durable & Portable: Lightweight aluminum and iron housing (only 4.8 kg) with a low-noise cooling fan for easy transport and reliable performance.
Flexible Installation: Includes a sturdy mounting bracket for easy rigging on a truss, wall, or setting flat on the floor.

Setup & Operation Guide

🌟

Incredible 8-Facet Aerial Effects. By engaging the built-in 8-facet prism via DMX or Auto mode, you can instantly multiply the sharp 100W beam into a wide, rotating pattern that easily covers large dance floors and stages.

⚠️

Important Voltage Notice: This unit is designed specifically for an AC 220V, 50Hz power supply. Please verify your local voltage before plugging it in to prevent damage. Ensure adequate space for ventilation to prevent overheating during indoor use.

Step 1: Unpack the fixture and securely attach the included mounting bracket to your truss system. Always use a certified safety cable.
Step 2: Connect the power cable to a reliable AC 220V power source.

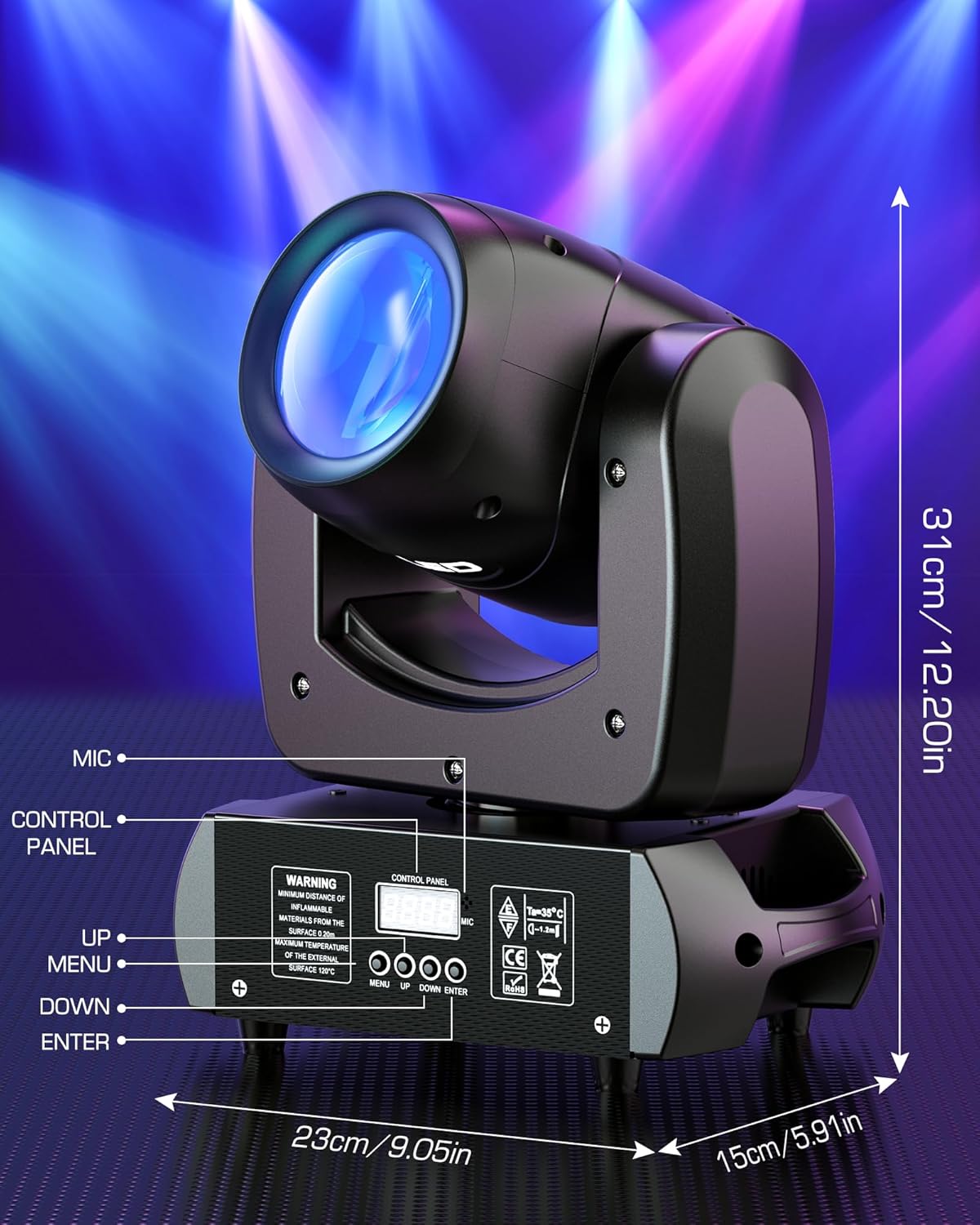

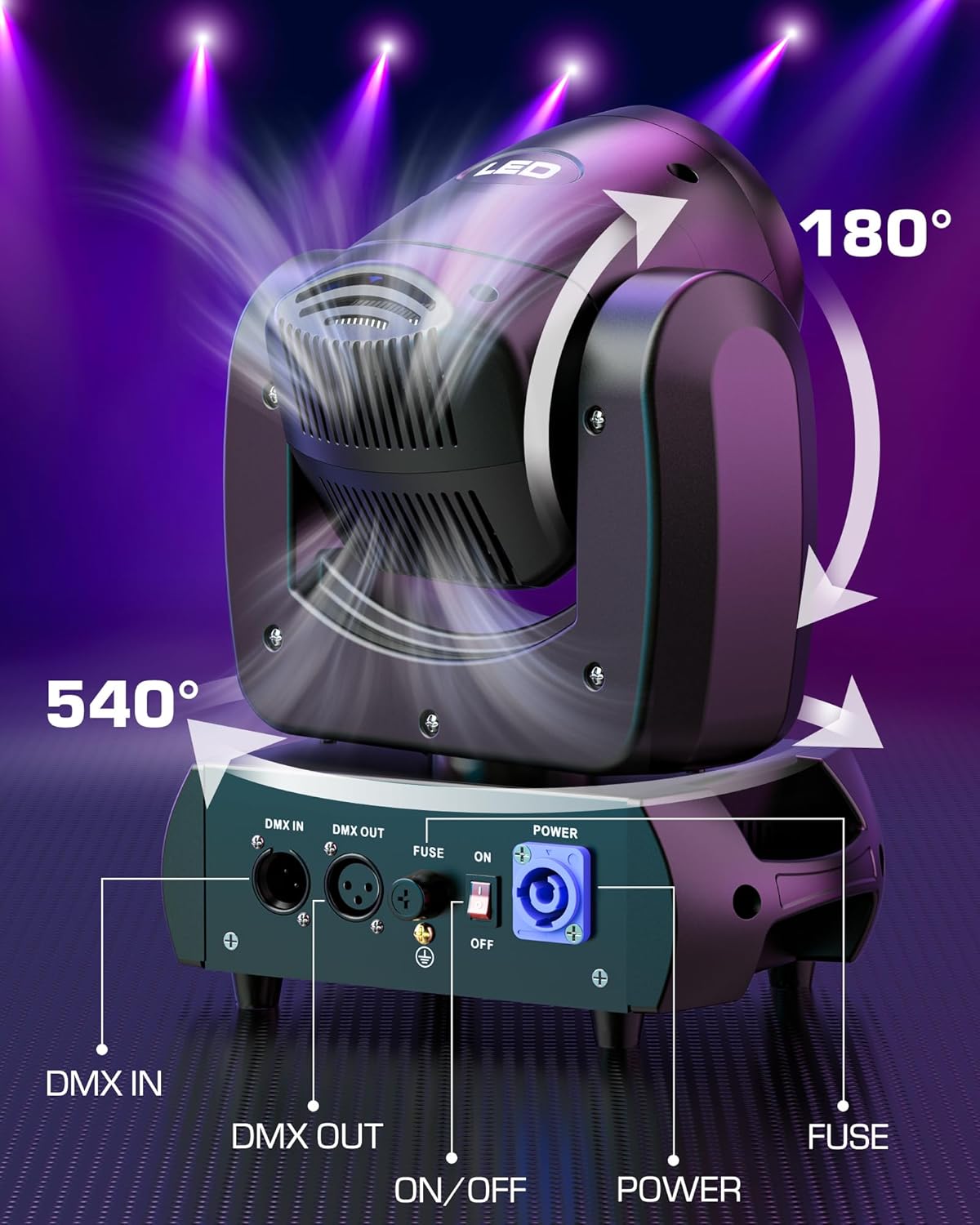

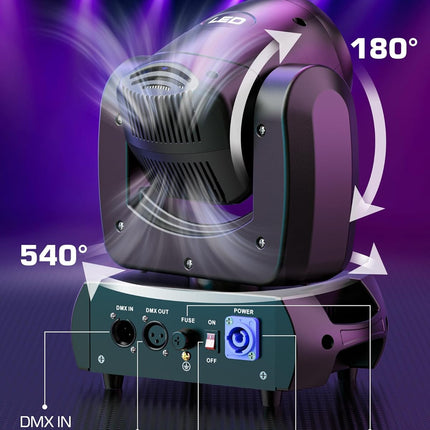

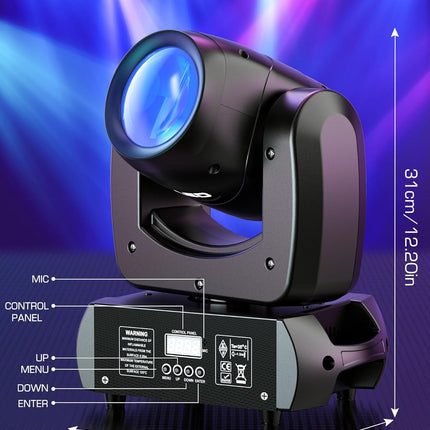

Step 3: To control the light, connect a DMX cable from your controller to the DMX IN port, and select the 12-channel mode via the LCD display.
Step 4: For standalone use without a controller, navigate the menu to select ‘Auto’ or ‘Sound’ mode for instant plug-and-play light shows.
Step 5: Daisy-chain multiple units using DMX cables and set them to Master/Slave mode for perfectly synchronized movements across your stage.

Technical Specifications

Working Voltage / Total Power	AC 220V, 50Hz / 150W
Light Source / Lens Angle	1 x 100W White LED / 3°–15°
Control Mode / DMX CH	DMX512, Sound Control, Auto, Master-Slave / 12 Channels
Dimming / Strobe	0–100% Linear Smooth / 25 times per second
Material / Weight	Aluminum + Iron + Plastic / 4.8 kg

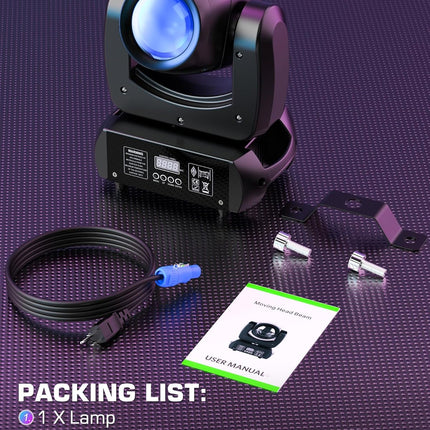

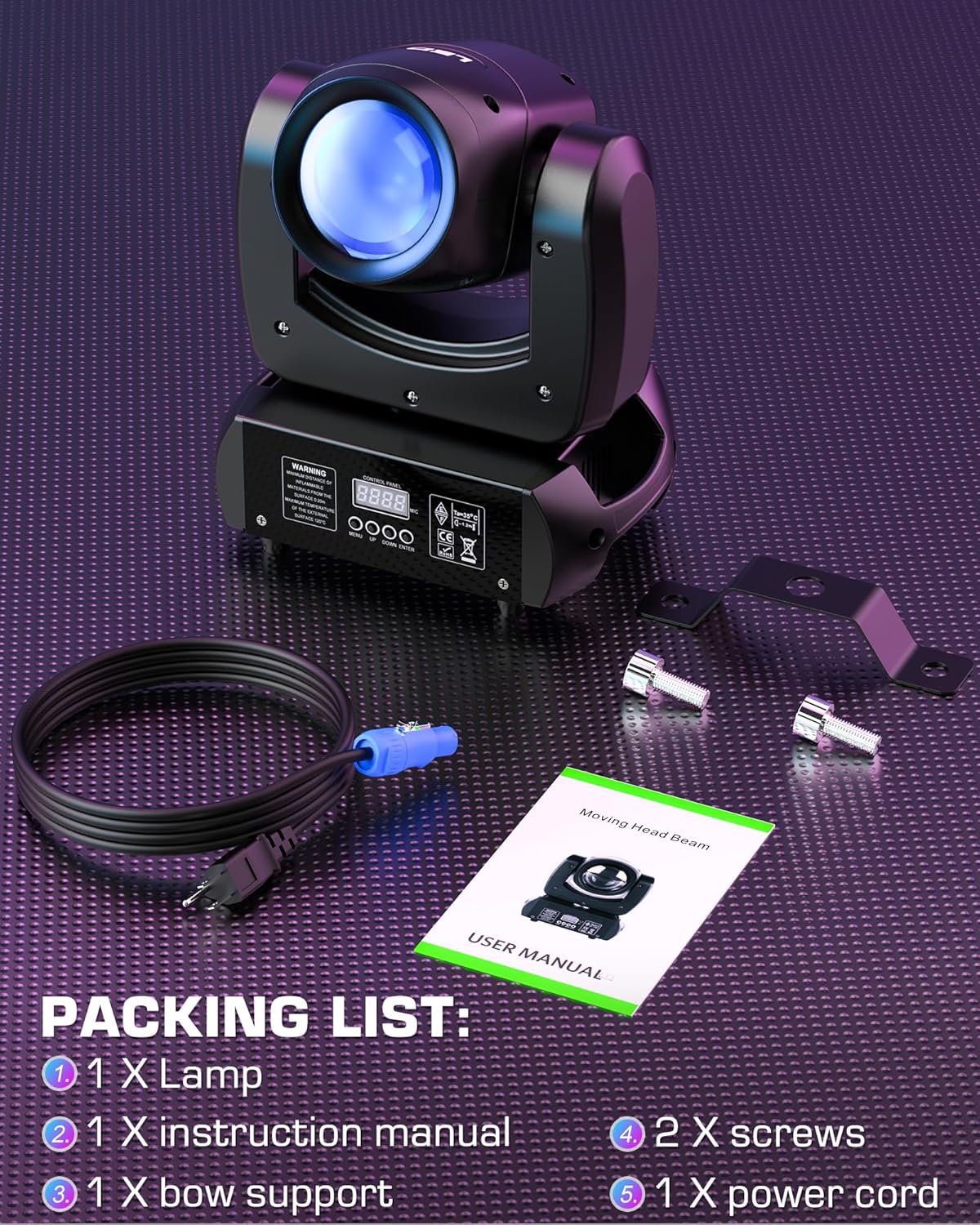

Packing List	1 x 100W Moving Head Light, 1 x Power Cord, 1 x Mounting Bracket, 2 x Screws, 1 x English User Manual

💬 Questions about which light is right for your venue?

Chat with our technical experts for custom package deals, DMX setup advice, and bulk pricing.

Message us on WhatsApp

Frequently Asked Questions

Q: Can I use this in countries with 110V power (like the US)?

A: This specific model is rated for AC 220V. Please ensure you have the correct power supply or a heavy-duty step-up converter before use, or contact us to check for 110V compatible versions.

Q: What does the 8-facet prism do?

A: The prism lens drops in front of the main beam, splitting the single 100W light source into 8 separate, sharp beams that rotate. It creates a much wider, dynamic, and mesmerizing visual effect across the room.

Q: Is it difficult to program for a beginner?

A: Not at all. If you are new to lighting, you can simply plug it in and set it to Sound-Activated or Auto mode. The light will run its own built-in programs to the beat of the music. For professionals, the 12-channel DMX mode offers precise control over every motor.

Q: Is it suitable for mobile DJs?

A: Yes! Weighing only 4.8 kg (about 10.5 lbs), it is highly portable. Its compact size and included mounting bracket make it very easy to hang on mobile light stands or truss setups.
